1452-04-000 Laser Module, 635nm 3mW, Continuous Wave Ellipse pattern +3.5 → +5 V
- RS Stock No.:
- 442-3261
- Mfr. Part No.:
- 1452-04-000
- Brand:
- Global Laser
Bulk discount available
Subtotal (1 unit)*
£206.45
(exc. VAT)
£247.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 1 | £206.45 |
2 + | £181.47 |
*price indicative
- RS Stock No.:
- 442-3261
- Mfr. Part No.:
- 1452-04-000
- Brand:
- Global Laser
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Global Laser | |
Laser Type | Continuous Wave | |
Laser Colour | Red | |
Emission Pattern | Ellipse | |
Laser Wavelength | 635nm | |
Optical Output Power | 3mW | |
Laser Class | 3R | |
Application | Alignment | |
Length | 30mm | |
Maximum Supply Voltage | +5V | |
Minimum Supply Voltage | +3.5V | |
Supply Voltage Range | +3.5 → +5 V | |
Series | Microblock | |
Select all | ||
---|---|---|
Brand Global Laser | ||
Laser Type Continuous Wave | ||
Laser Colour Red | ||
Emission Pattern Ellipse | ||
Laser Wavelength 635nm | ||
Optical Output Power 3mW | ||
Laser Class 3R | ||
Application Alignment | ||
Length 30mm | ||
Maximum Supply Voltage +5V | ||
Minimum Supply Voltage +3.5V | ||
Supply Voltage Range +3.5 → +5 V | ||
Series Microblock | ||
- COO (Country of Origin):
- GB

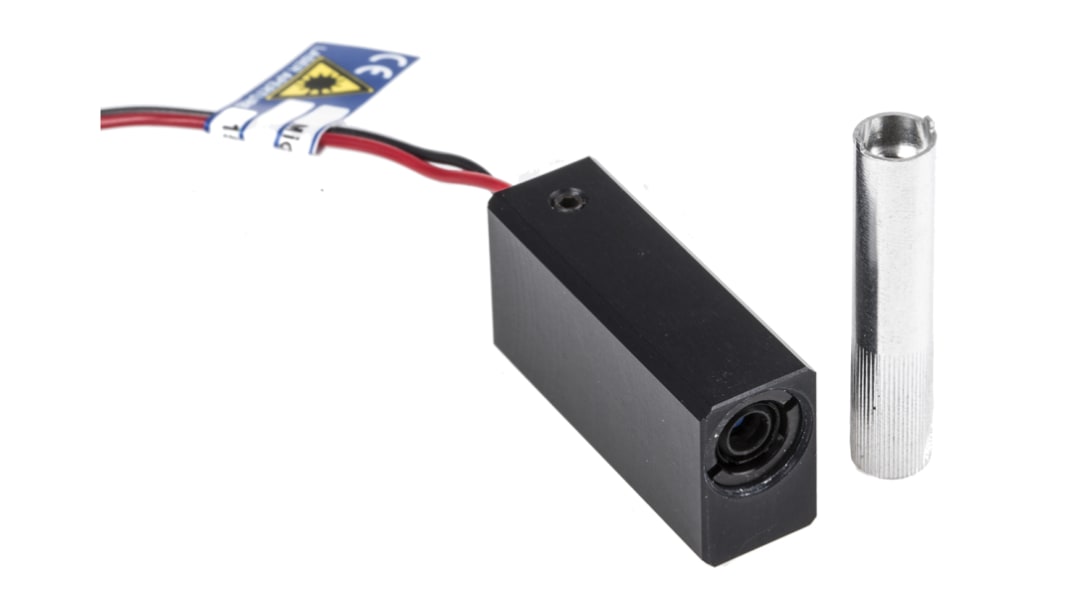

Microblock, Compact User-adjustable Aiming Laser
Size: 30 x 10 x 15mm
Ideal for portable systems
Easy to mount, rugged design
Zero directional pointing error
User-adjustable focus
Rugged vibration resistant construction
Ideal for portable systems
Easy to mount, rugged design
Zero directional pointing error
User-adjustable focus
Rugged vibration resistant construction
Warning
These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Laser Modules, Global Laser
