EAO IP65 Key Switch, 2 NO/2 NC, 5 A 3-Way
- RS Stock No.:
- 274-8382
- Distrelec Article No.:
- 304-07-654
- Mfr. Part No.:
- 51-378.F22D
- Brand:
- EAO
Bulk discount available
Subtotal (1 unit)*
£95.59
(exc. VAT)
£114.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £95.59 |
| 10 - 24 | £91.91 |
| 25 - 49 | £86.40 |
| 50 - 99 | £80.88 |
| 100 + | £77.22 |
*price indicative
- RS Stock No.:
- 274-8382
- Distrelec Article No.:
- 304-07-654
- Mfr. Part No.:
- 51-378.F22D
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Number of Positions | 3 | |
| Product Type | Key Switch | |
| Switch Operation | Snap Action | |
| Contact Configuration | 2 NO/2 NC | |
| Switch Contact Current | 5 A | |
| IP Rating | IP65 | |
| Terminal Type | Plug | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 250V dc | |
| Switch Configuration | Snap Action | |
| Key Index Angle | 90° | |
| Standards/Approvals | DNV, CSA, CB (IEC 61058-1), ENEC (EN 61058-1), CQC, UL | |
| Contact Material | Gold | |
| Series | 51 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Mechanical Life | 50000Cycles | |
| Select all | ||
|---|---|---|
Brand EAO | ||
Number of Positions 3 | ||
Product Type Key Switch | ||
Switch Operation Snap Action | ||
Contact Configuration 2 NO/2 NC | ||
Switch Contact Current 5 A | ||
IP Rating IP65 | ||
Terminal Type Plug | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 250V dc | ||
Switch Configuration Snap Action | ||
Key Index Angle 90° | ||
Standards/Approvals DNV, CSA, CB (IEC 61058-1), ENEC (EN 61058-1), CQC, UL | ||
Contact Material Gold | ||
Series 51 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Mechanical Life 50000Cycles | ||
- COO (Country of Origin):
- CH

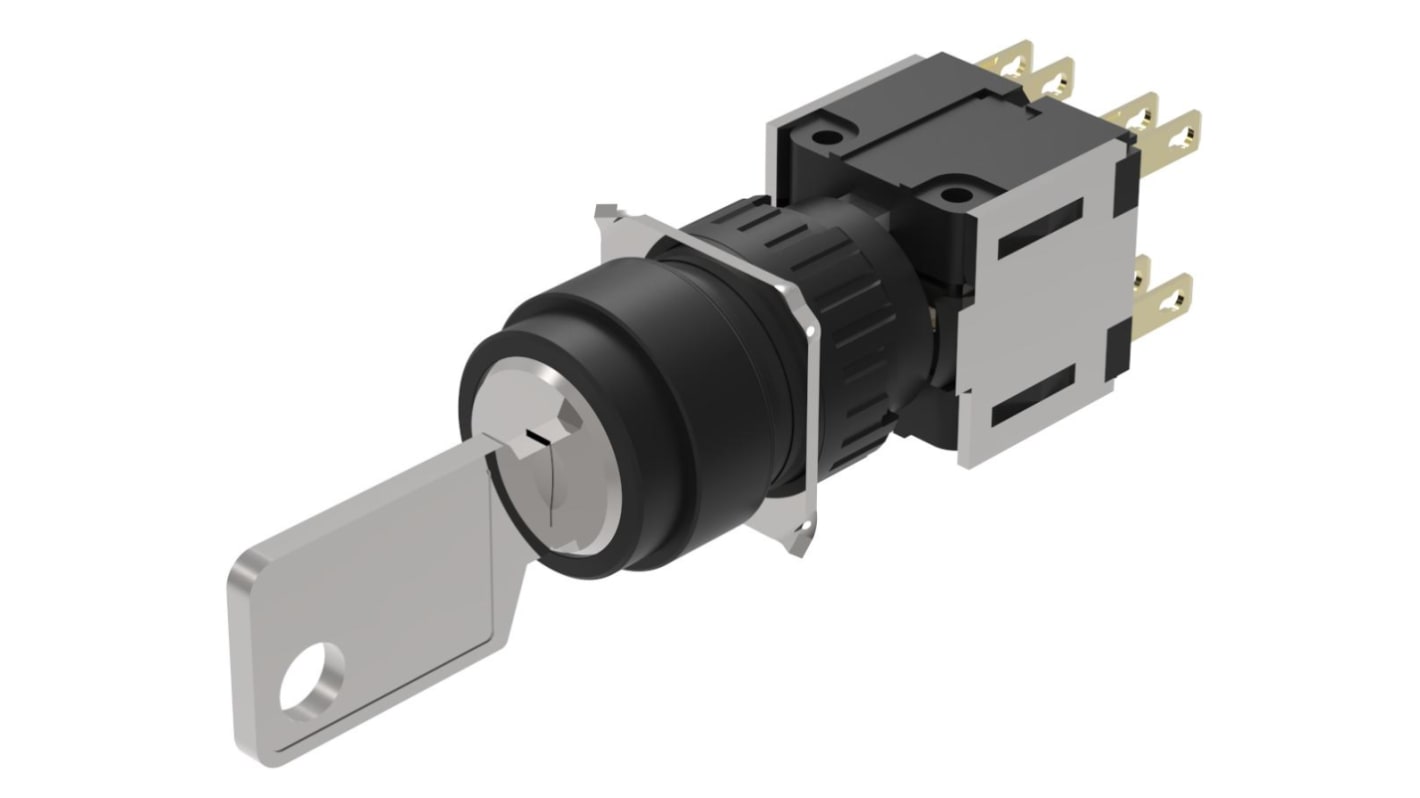

The EAO keylock switch has 3 positions and contact made from gold.
Operating temperature -25°C to +55°C
Tightening torque Fixing nut maximum 0.5 Nm
