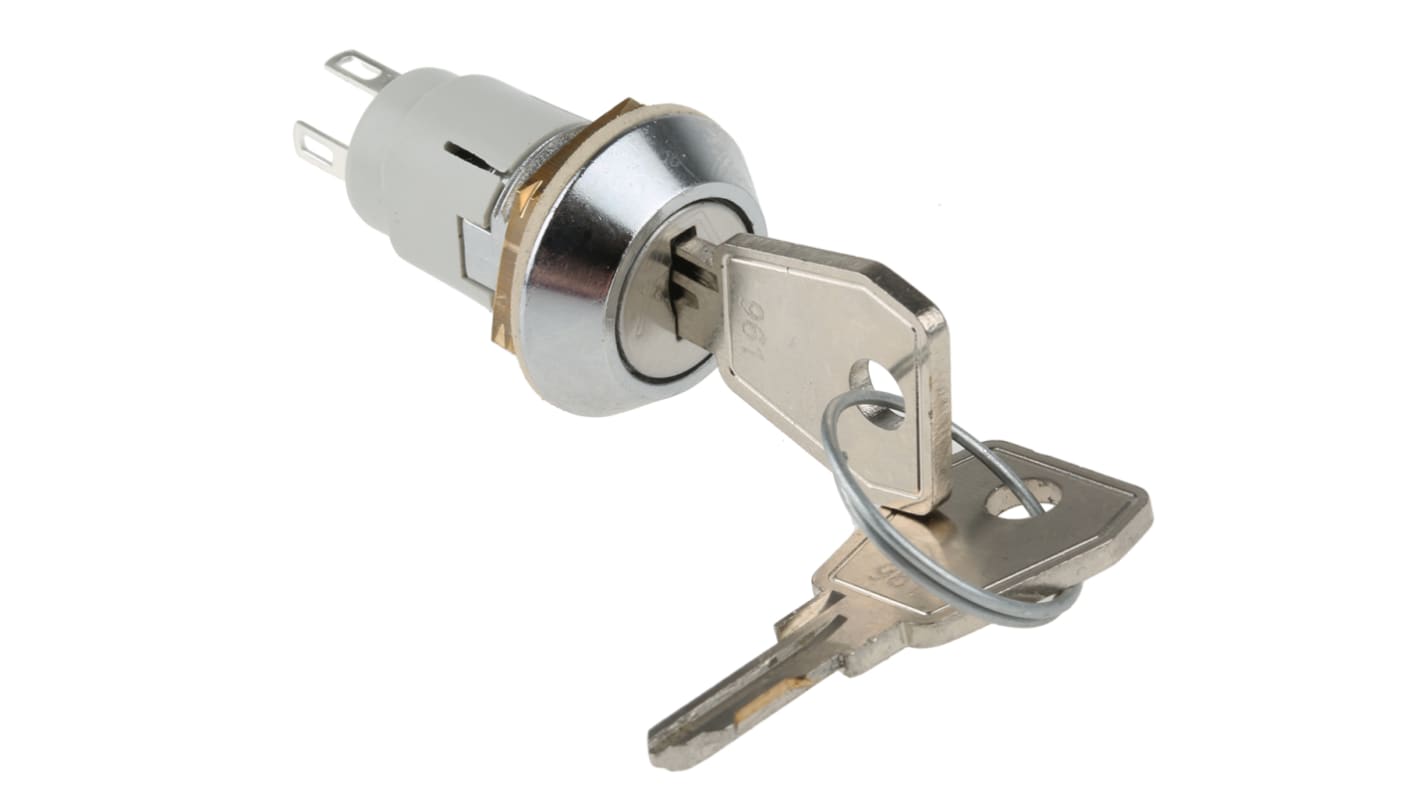

Lorlin IP66, IP67 Key Switch, SPDT, 5 A@ 115 V ac 2-Way Random-Key
- RS Stock No.:
- 562-567
- Mfr. Part No.:
- WRL-5-E-D-2
- Brand:
- Lorlin
Bulk discount available
Subtotal (1 unit)*
£19.51
(exc. VAT)
£23.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 29 October 2025
- Plus 126 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £19.51 |
| 10 - 49 | £18.62 |
| 50 - 99 | £17.36 |
| 100 - 249 | £15.68 |
| 250 + | £13.50 |
*price indicative
- RS Stock No.:
- 562-567
- Mfr. Part No.:
- WRL-5-E-D-2
- Brand:
- Lorlin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lorlin | |
| Number of Positions | 2 | |
| Contact Configuration | SPDT | |
| Contact Current Rating | 5 A@ 115 V ac | |
| IP Rating | IP66, IP67 | |
| Key Type | Random | |
| Terminal Type | Solder | |
| Case Material | Zinc Alloy | |
| Bezel Shape | Round | |
| Key Index Angle | 90° | |
| Contact Material | Silver Plated Brass | |
| Operating Temperature Range | -20 → +65°C | |
| Mechanical Life | 10000 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +65°C | |
| Standards Met | RoHS | |
Select all | ||
|---|---|---|
Brand Lorlin | ||
Number of Positions 2 | ||
Contact Configuration SPDT | ||
Contact Current Rating 5 A@ 115 V ac | ||
IP Rating IP66, IP67 | ||
Key Type Random | ||
Terminal Type Solder | ||
Case Material Zinc Alloy | ||
Bezel Shape Round | ||
Key Index Angle 90° | ||
Contact Material Silver Plated Brass | ||
Operating Temperature Range -20 → +65°C | ||
Mechanical Life 10000 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +65°C | ||
Standards Met RoHS | ||
- COO (Country of Origin):
- GB
16mm Sealed Key Switch IP66/IP67 - WRL Series
Miniature 2 position key switches
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
