Lorlin IP66, IP67 Keylock Switch, DPST, 1 A @ 115 V ac 2-Way Common-Key
- RS Stock No.:
- 896-8061
- Mfr. Part No.:
- WRL-5-L-D-2-RS
- Brand:
- Lorlin
Bulk discount available
Subtotal (1 unit)*
£19.54
(exc. VAT)
£23.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 50 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 19 | £19.54 |
20 - 49 | £17.79 |
50 - 99 | £16.69 |
100 - 249 | £14.43 |
250 + | £13.29 |
*price indicative
- RS Stock No.:
- 896-8061
- Mfr. Part No.:
- WRL-5-L-D-2-RS
- Brand:
- Lorlin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lorlin | |
Number of Positions | 2 | |
Switch Operation | Latching | |
Contact Configuration | DPST | |
Key Trapping | Yes | |
Contact Current Rating | 1 A @ 115 V ac | |
IP Rating | IP66, IP67 | |
Key Type | Common | |
Terminal Type | Solder | |
Case Material | Nylon 66 | |
Bezel Shape | Round | |
Application | Marine | |
Depth Behind Panel | 22.4mm | |
Key Index Angle | 60° | |
Contact Material | Brass CZ108 | |
Minimum Operating Temperature | -20°C | |
Operating Temperature Range | -20 → +65°C | |
Standards Met | RoHS Compliant, UL 94V-0 | |
Maximum Operating Temperature | +65°C | |
Mechanical Life | >10000Cycles | |
Voltage Rating AC | 115V | |
Voltage Rating DC | 24V | |
Select all | ||
---|---|---|
Brand Lorlin | ||
Number of Positions 2 | ||
Switch Operation Latching | ||
Contact Configuration DPST | ||
Key Trapping Yes | ||
Contact Current Rating 1 A @ 115 V ac | ||
IP Rating IP66, IP67 | ||
Key Type Common | ||
Terminal Type Solder | ||
Case Material Nylon 66 | ||
Bezel Shape Round | ||
Application Marine | ||
Depth Behind Panel 22.4mm | ||
Key Index Angle 60° | ||
Contact Material Brass CZ108 | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +65°C | ||
Standards Met RoHS Compliant, UL 94V-0 | ||
Maximum Operating Temperature +65°C | ||
Mechanical Life >10000Cycles | ||
Voltage Rating AC 115V | ||
Voltage Rating DC 24V | ||
- COO (Country of Origin):
- GB

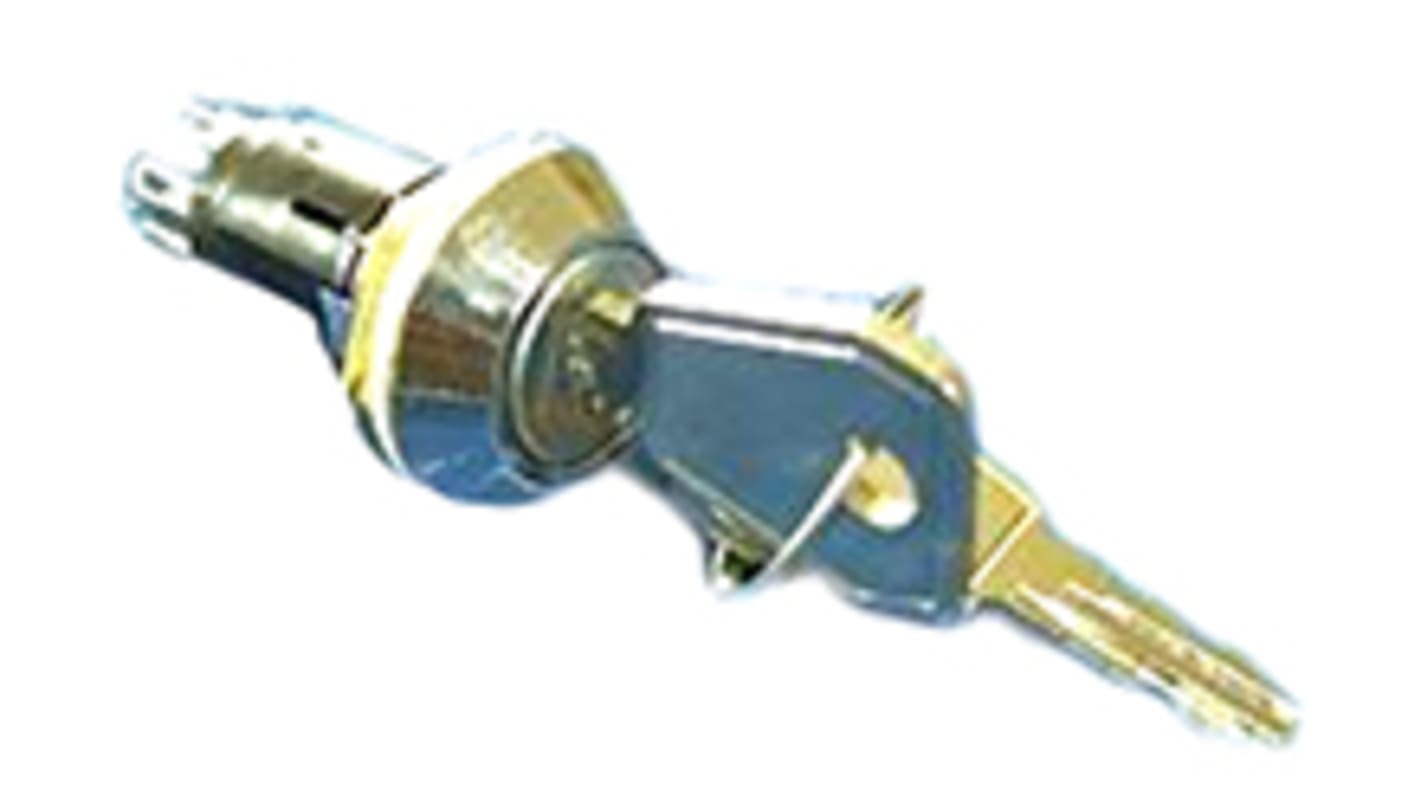

Lorlin Sealed Keylock Switch
The Lorlin Keylock switch has a double pole single throw (DPST) contact configuration. It is high-tech, miniature, key-operated lock switch. It is suitable for many possible applications. These double entry keys allow the users to select either key locking or removable from both/ all positions. It is available in 2 positions and all units are equipped with solder terminals. Each switch is supplied with 2 keys with options for a common key (901) or different key (200 potential differs). The switch has a contact current rating of 1A and a voltage rating of 115VAC.
Features and Benefits
Single or double pole
Up to 200 key combinations – keys to differ
Common keys available – keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies a small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
For continued exterior, use lubricate with oil regularly
Latching switch operations
Key trapping
Solder terminal
Nylon 66 case material
Bezel shape is round
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is brass CZ108
Mechanical life is more than 10000 cycles
Voltage rating DC is 24V
Operating temperature ranges between -20°C and 65°C
Up to 200 key combinations – keys to differ
Common keys available – keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies a small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
For continued exterior, use lubricate with oil regularly
Latching switch operations
Key trapping
Solder terminal
Nylon 66 case material
Bezel shape is round
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is brass CZ108
Mechanical life is more than 10000 cycles
Voltage rating DC is 24V
Operating temperature ranges between -20°C and 65°C
Applications
Marine applications
Control panels
Control panels
Certifications
IP66 rated
IP67 rated
UL 94V-0
IP67 rated
UL 94V-0
