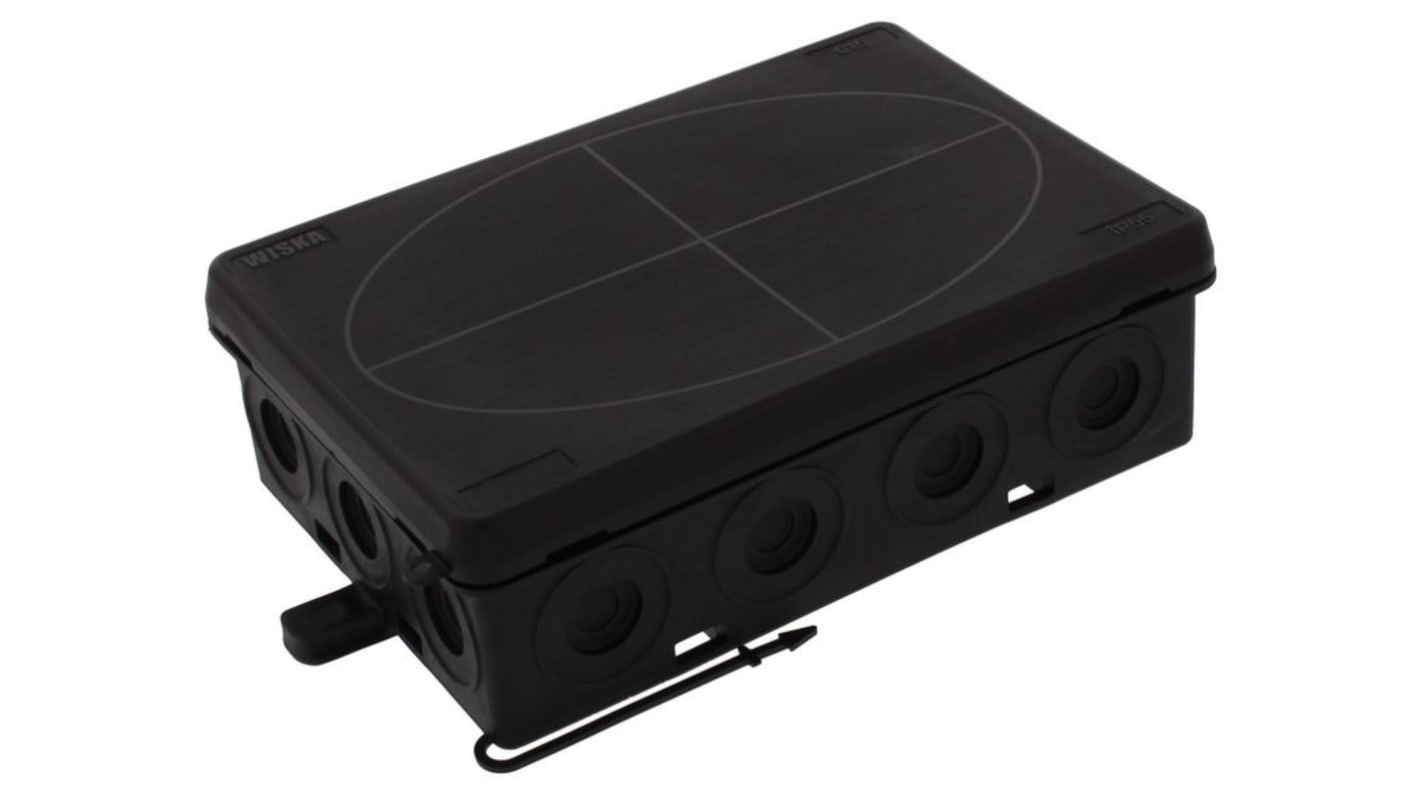

WISKA KA Series Black Polyurethane, Polypropylene Junction Box, IP55, 125 mm, 86 mm 41 mm
- RS Stock No.:
- 285-8316
- Distrelec Article No.:
- 301-58-478
- Mfr. Part No.:
- KA 016 BK
- Brand:
- WISKA
Subtotal (1 unit)*
£2.47
(exc. VAT)
£2.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 68 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.47 |
*price indicative
- RS Stock No.:
- 285-8316
- Distrelec Article No.:
- 301-58-478
- Mfr. Part No.:
- KA 016 BK
- Brand:
- WISKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WISKA | |
| Width | 86 mm | |
| Length | 125mm | |
| Product Type | Junction Box | |
| Material | Polyurethane, Polypropylene | |
| Height | 41mm | |
| IP Rating | IP55 | |
| Colour | Black | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS Exempt | |
| Range | -30 to 60 °C | |
| Diameter | 12 mm | |
| Series | KA | |
| Select all | ||
|---|---|---|
Brand WISKA | ||
Width 86 mm | ||
Length 125mm | ||
Product Type Junction Box | ||
Material Polyurethane, Polypropylene | ||
Height 41mm | ||
IP Rating IP55 | ||
Colour Black | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS Exempt | ||
Range -30 to 60 °C | ||
Diameter 12 mm | ||
Series KA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The junction box is a versatile and reliable solution for your electrical installations. With dimensions of 125x86x41mm, this plastic box is suitable for a variety of applications. Its IP55 protection class ensures durability and safety in different environments. The box is designed for cable glands and can accommodate cable diameters ranging from 7mm to 12mm. With a voltage rating of 400V and a rated cross section of 6 mm², this junction box is a practical choice for your wiring needs.
Made of durable polyethylene or polypropylene material for long-lasting use
IP55 protection class for resistance to dust and water ingress
Wide temperature range of -30°C to 60°C for versatile applications
Glow wire test at 750°C for fire safety compliance
Can accommodate cable diameters from 7mm to 12mm for flexibility in wiring
External dimensions of 125 x 86 x 41mm for compact installations
