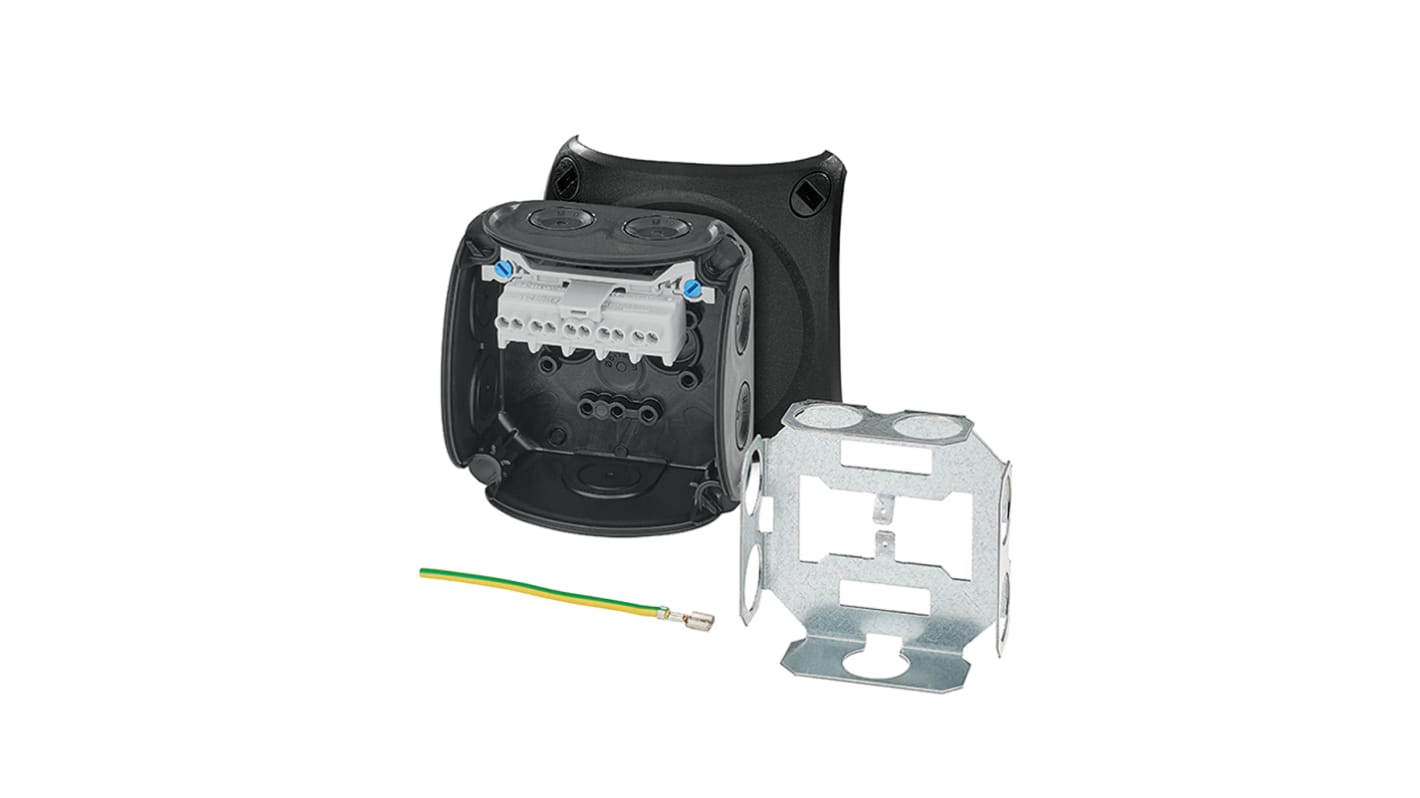

HENSEL DK Series Black Polypropylene Terminal Box, IP66, 5 Terminals, 62 x 93 x 93mm
- RS Stock No.:
- 276-5485
- Mfr. Part No.:
- DK 0202 V
- Brand:
- HENSEL
6 In stock - FREE next working day delivery available
Added
Price Each
£15.20
(exc. VAT)
£18.24
(inc. VAT)
| Units | Per unit |
| 1 + | £15.20 |
- RS Stock No.:
- 276-5485
- Mfr. Part No.:
- DK 0202 V
- Brand:
- HENSEL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
0.75-2.5 mm², Cu 3∼
Terminal with 2 clamping units per pole
5-pole per pole 8 x 0,75-1 mm² r / f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
With patented PE inlay to connect the armours of SWA cables
With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Colour: black, RAL 9011
Terminal with 2 clamping units per pole
5-pole per pole 8 x 0,75-1 mm² r / f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
With patented PE inlay to connect the armours of SWA cables
With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Colour: black, RAL 9011
Specifications
Attribute | Value |
|---|---|
| Dimensions L x W x H | 62 x 93 x 93mm |
| Material | Polypropylene |
| Length | 62mm |
| Width | 93mm |
| Height | 93mm |
| IP Rating | IP66 |
| Number of Terminals | 5 |
| Colour | Black |
| Series | DK |
