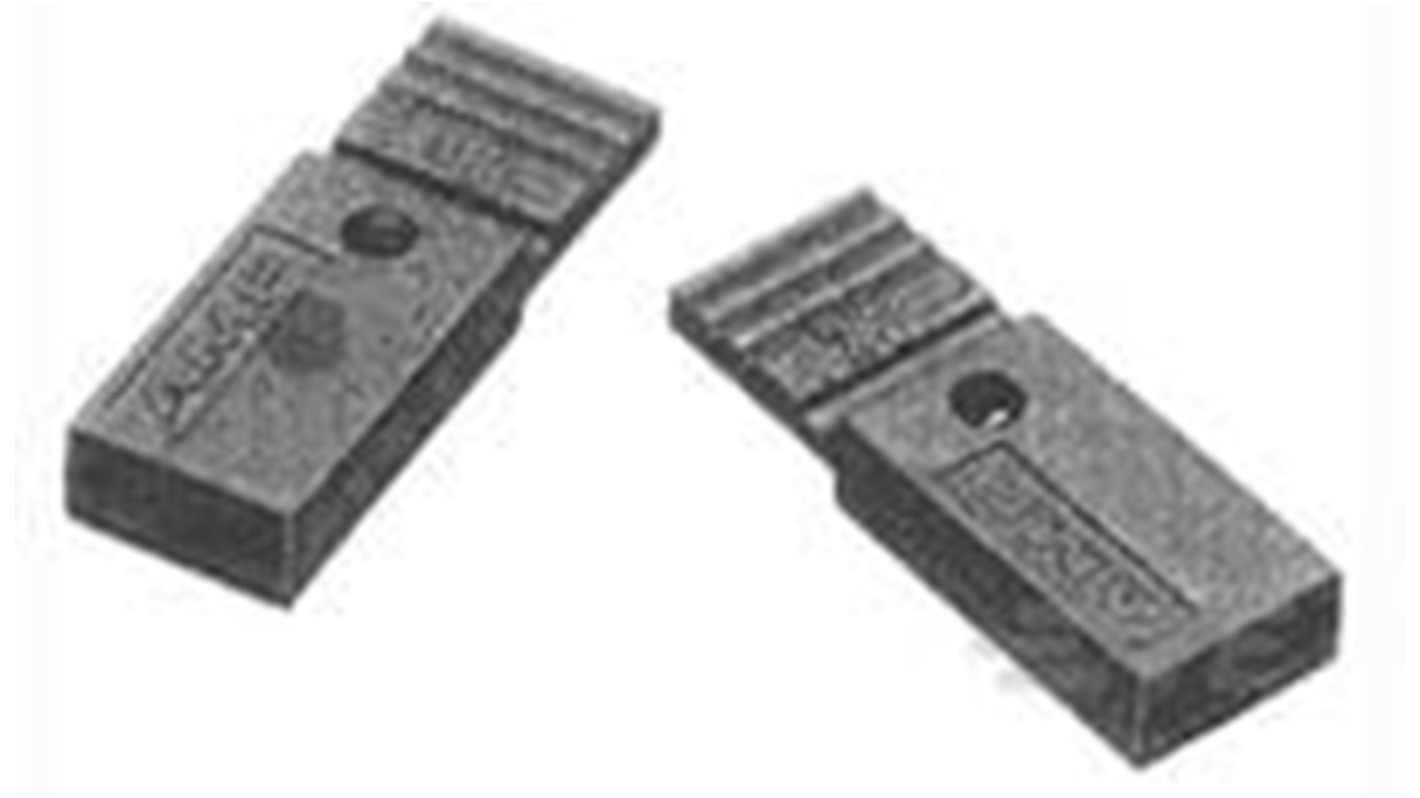

TE Connectivity, 4-881545-2 Shunt Straight Black Open Top 2 Way 1 Row 2.54 mm Pitch
- RS Stock No.:
- 302-530
- Mfr. Part No.:
- 4-881545-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£0.10
(exc. VAT)
£0.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 370 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.10 |
| 10 - 24 | £0.09 |
| 25 + | £0.08 |
*price indicative
- RS Stock No.:
- 302-530
- Mfr. Part No.:
- 4-881545-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Sub Type | Open Top | |
| Product Type | Shunt | |
| Number of Contacts | 2 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Colour | Black | |
| Number of Rows | 1 | |
| Length | 10.9mm | |
| Series | 4-881545-2 | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Standards/Approvals | EU ELV 2000/53/EC, 2016, EU RoHS 2011/65/EU, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32 | |
| Orientation | Straight | |
| Maximum Contact Resistance | 15mΩ | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Sub Type Open Top | ||
Product Type Shunt | ||
Number of Contacts 2 | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Colour Black | ||
Number of Rows 1 | ||
Length 10.9mm | ||
Series 4-881545-2 | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Standards/Approvals EU ELV 2000/53/EC, 2016, EU RoHS 2011/65/EU, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32 | ||
Orientation Straight | ||
Maximum Contact Resistance 15mΩ | ||
The TE Connectivity Novo Shunt features an open-top design with 2 positions and a 2.54 mm centerline. It is used for signal applications and operates within a temperature range of -65 to 105°C. The connector is board-mount, with a UL 94V-0 flammability rating and a termination resistance of 15 mΩ.
Thermoplastic housing
Phosphor bronze base material
