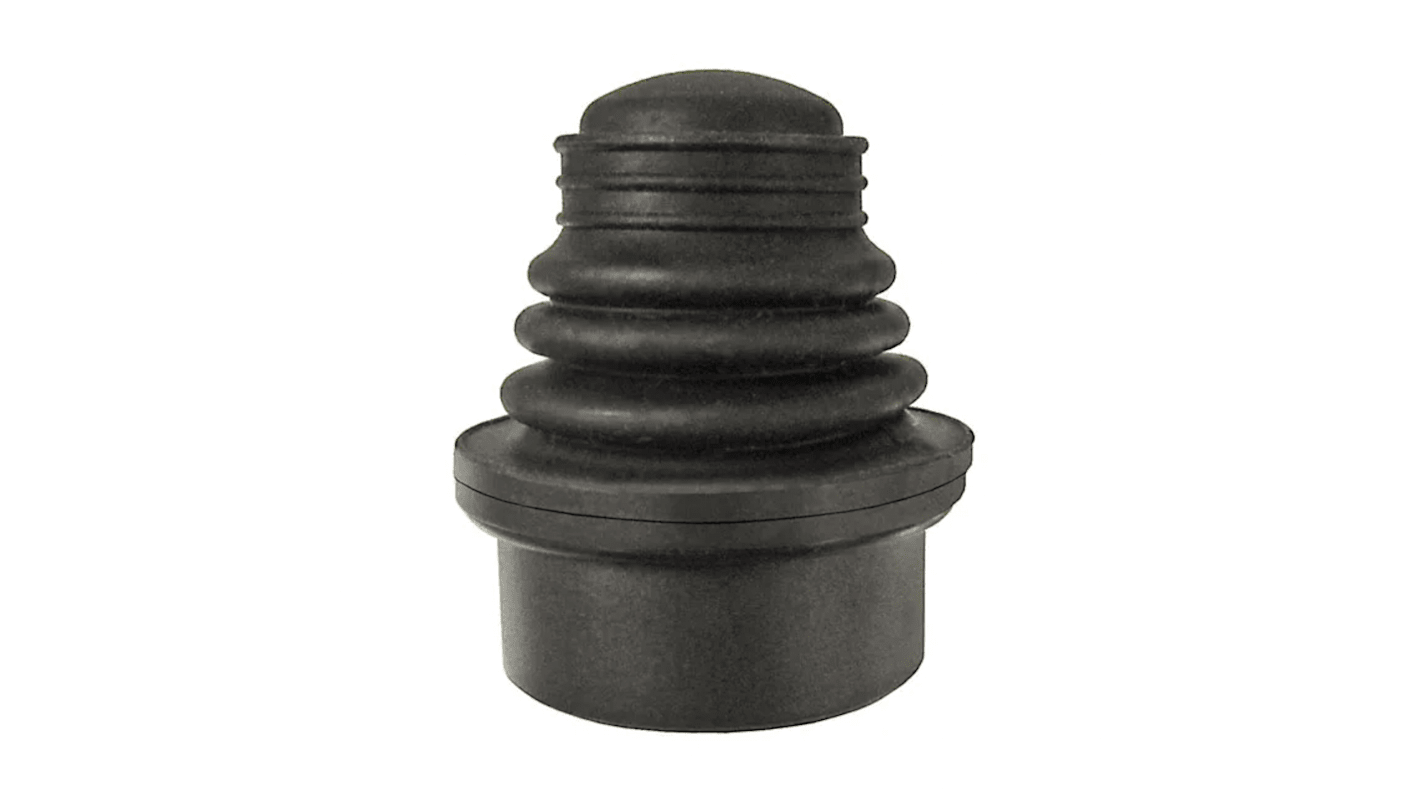

APEM 2-Axis Joystick Push Button, Round, Castle, Conical Hall Effect Sensor, IP69K, IP67, 12 V dc, 50 mA
- RS Stock No.:
- 267-5093
- Mfr. Part No.:
- TS6A1S02A
- Brand:
- APEM
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 267-5093
- Mfr. Part No.:
- TS6A1S02A
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Axes | 2 | |
| Product Type | Joystick | |
| Series | TS | |
| Switch Technology | Hall Effect Sensor | |
| IP Rating | IP69K, IP67 | |
| Handle Type | Push Button, Round, Castle, Conical | |
| Switch Contact Current | 50 mA | |
| Contact Configuration | SPST | |
| Contact Material | Brass with Silver Plated | |
| Joystick Travel | 50 ° | |
| Contact DC Voltage | 12V dc | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | EN61000-6-3:2001, EN61000-4-3, EN61000-4-3 Level 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Number of Axes 2 | ||
Product Type Joystick | ||
Series TS | ||
Switch Technology Hall Effect Sensor | ||
IP Rating IP69K, IP67 | ||
Handle Type Push Button, Round, Castle, Conical | ||
Switch Contact Current 50 mA | ||
Contact Configuration SPST | ||
Contact Material Brass with Silver Plated | ||
Joystick Travel 50 ° | ||
Contact DC Voltage 12V dc | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals EN61000-6-3:2001, EN61000-4-3, EN61000-4-3 Level 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- US
The APEM TS series has proportional miniature thumb controls with non-contacting hall effect technology.
One or two axis
Analog, PWM or USB outputs
IP67 Above panel sealing mounting
Rear or drop in mounting
Pushbutton option
