Lumberg Jack Connector 3.5 mm Cable Mount Stereo Socket, 3Pole 1A
- RS Stock No.:
- 884-1231
- Mfr. Part No.:
- 1520 01
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.24
(exc. VAT)
£8.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
- Plus 235 unit(s) ready to ship from another location
- Plus 1,740 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.448 | £7.24 |
| 25 + | £1.302 | £6.51 |
*price indicative
- RS Stock No.:
- 884-1231
- Mfr. Part No.:
- 1520 01
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Gender | Female | |
| Size | 3.5 mm | |
| Mounting Type | Cable Mount | |
| Type | Stereo | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Contact Plating | Nickel | |
| Current Rating | 1A | |
| Housing Material | PE | |
| Voltage Rating | 12 V dc | |
| Colour | Black | |
| Contact Material | Copper Alloy | |
| No of Poles/ Way | 3 | |
Select all | ||
|---|---|---|
Brand Lumberg | ||
Gender Female | ||
Size 3.5 mm | ||
Mounting Type Cable Mount | ||
Type Stereo | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Contact Plating Nickel | ||
Current Rating 1A | ||
Housing Material PE | ||
Voltage Rating 12 V dc | ||
Colour Black | ||
Contact Material Copper Alloy | ||
No of Poles/ Way 3 | ||
- COO (Country of Origin):
- JP
3.5 mm female jack plugs
From Lumberg, this selection of female jack plugs are available in two-pole (mono) and three-pole (stereo) versions and have a solder connection. These female jack plugs are compatible with JISC 6560 plugs.
Features and Benefits:
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
Lumberg Jack Connector

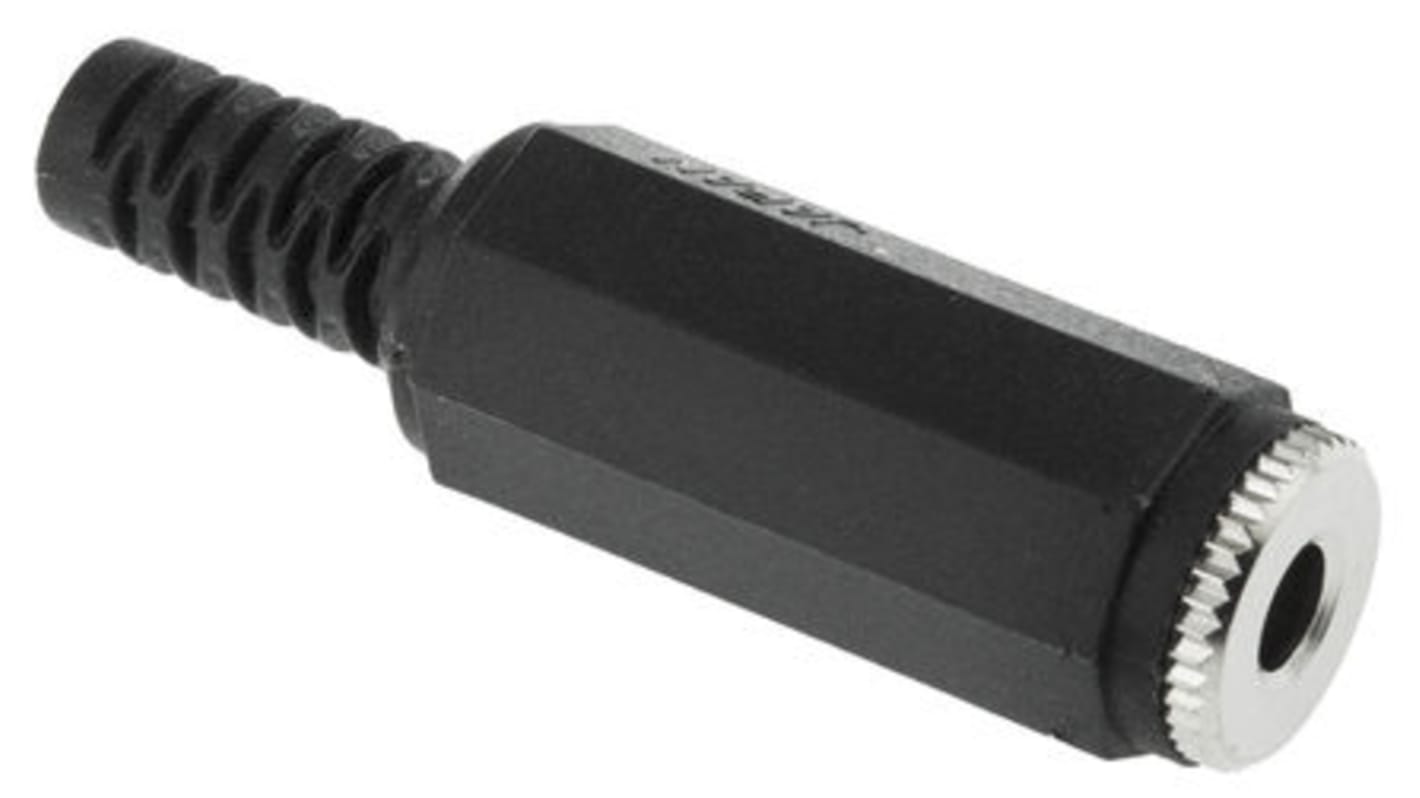

The Lumberg female straight stereo jack socket 3-pole connector of size 3.5mm with bend protection and solder terminals. This jack is cable mount and the housing is made of PE material with copper alloy nickel-plated contact. It has an electrical voltage rating of 12VDC and current rating of 1A.
Features and Benefits
• Cable diameter is 4mm
• Contact Resistance is ≥30mΩ
• Good solder connection
• Operating temperature ranges between -10°C and 50°C
• Contact Resistance is ≥30mΩ
• Good solder connection
• Operating temperature ranges between -10°C and 50°C
Certifications
• UL 94 approved
