Lumberg Jack Connector 3.5 mm Cable Mount Mono Socket, 2Pole 1A
- RS Stock No.:
- 170-5675
- Mfr. Part No.:
- 1522 02
- Brand:
- Lumberg
Subtotal (1 box of 100 units)*
£58.80
(exc. VAT)
£70.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £0.588 | £58.80 |
*price indicative
- RS Stock No.:
- 170-5675
- Mfr. Part No.:
- 1522 02
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lumberg | |
Gender | Female | |
Size | 3.5 mm | |
Mounting Type | Cable Mount | |
Type | Mono | |
Body Orientation | Straight | |
Termination Method | Solder | |
Contact Plating | Nickel | |
Current Rating | 1A | |
Housing Material | PE | |
Voltage Rating | 12 V dc | |
Colour | Black | |
Contact Material | Copper Alloy | |
No of Poles/ Way | 2 | |
Select all | ||
---|---|---|
Brand Lumberg | ||
Gender Female | ||
Size 3.5 mm | ||
Mounting Type Cable Mount | ||
Type Mono | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Contact Plating Nickel | ||
Current Rating 1A | ||
Housing Material PE | ||
Voltage Rating 12 V dc | ||
Colour Black | ||
Contact Material Copper Alloy | ||
No of Poles/ Way 2 | ||
- COO (Country of Origin):
- JP
3.5 mm female jack plugs
From Lumberg, this selection of female jack plugs are available in two-pole (mono) and three-pole (stereo) versions and have a solder connection. These female jack plugs are compatible with JISC 6560 plugs.
Features and Benefits:
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
Lumberg Jack Plug

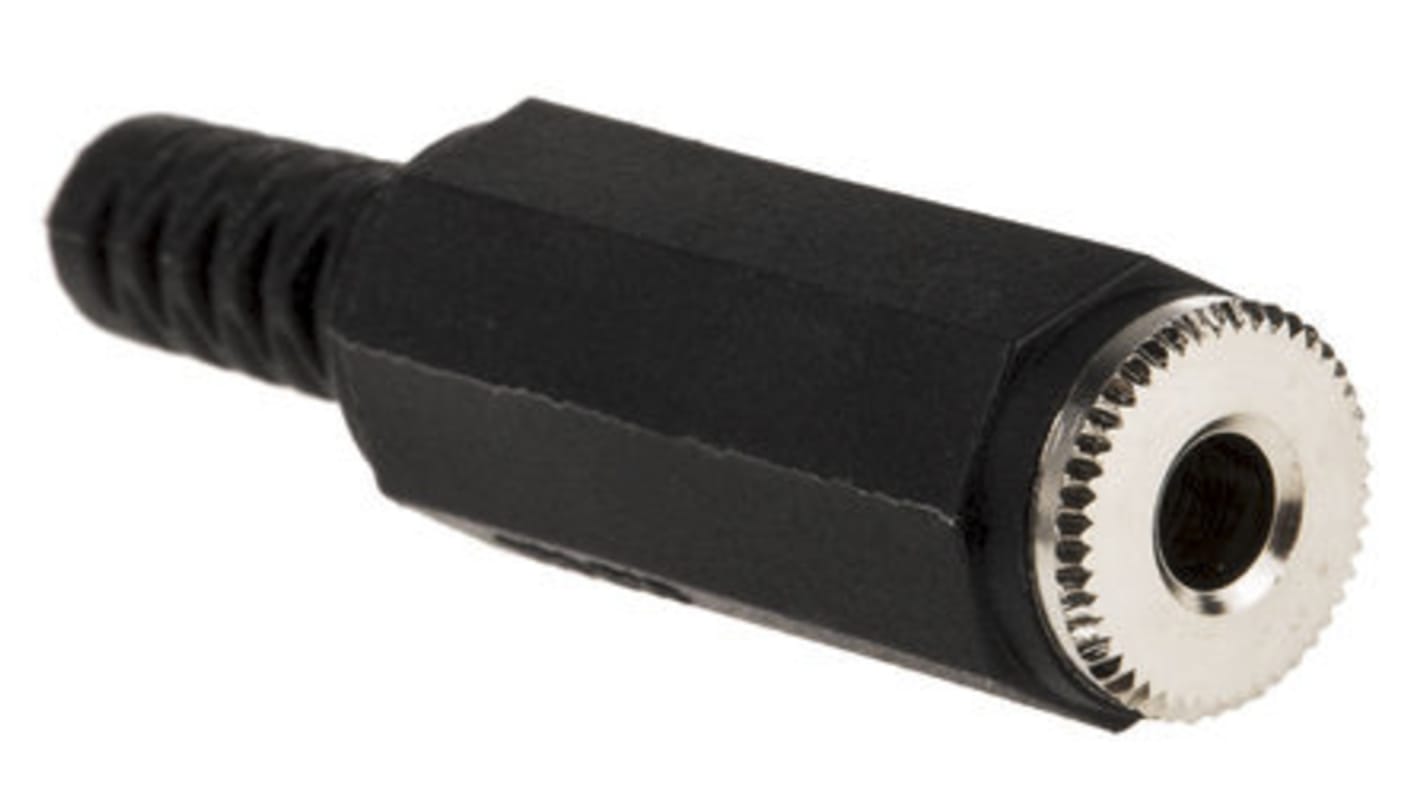

The Lumberg female straight mono jack plug connector of size 3.5mm and has 2-poles. This jack is cable mount and the housing is made of PE material with copper alloy nickel-plated contact. It has an electrical voltage rating of 12VDC and current rating 1A.
Features and Benefits
• Contact Resistance is ≥30mΩ
• Good solder connection
• Insulation resistance ≥ 100 MΩ
• Operating temperature ranges between -10°C and 50°C
• Provides bend protection and solder terminals
• Good solder connection
• Insulation resistance ≥ 100 MΩ
• Operating temperature ranges between -10°C and 50°C
• Provides bend protection and solder terminals
Certifications
• UL 94 approved
