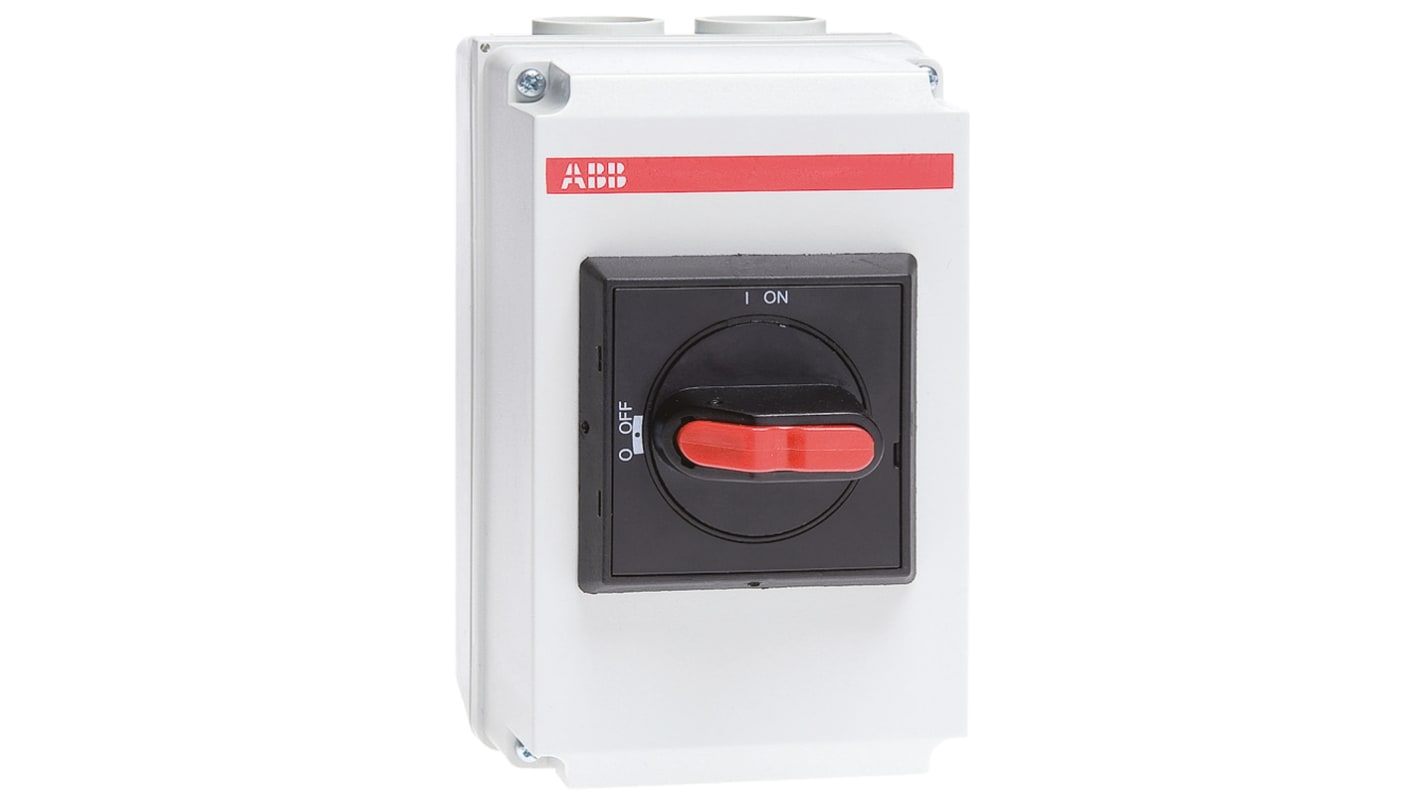

ABB 3-Pole Panel Mount Isolator Switch -, IP65, 16A, 75 kW
- RS Stock No.:
- 841-2688
- Mfr. Part No.:
- OTDCP16S12M 1SCA125153R1001
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£124.35
(exc. VAT)
£149.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £124.35 |
| 5 - 9 | £118.14 |
| 10 - 24 | £111.93 |
| 25 - 49 | £105.69 |
| 50 + | £99.47 |
*price indicative
- RS Stock No.:
- 841-2688
- Mfr. Part No.:
- OTDCP16S12M 1SCA125153R1001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Panel Mount | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Auxiliary Contacts Available | No | |
| Switching Current | 16A | |
| Series | OT | |
| Terminal Type | Screw | |
| Padlock Compatibility | No | |
| Minimum Operating Temperature | 0°C | |
| Switching Power | 75kW | |
| Switching DC Voltage | 1000V dc | |
| Switching AC Voltage | 415V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, IEC | |
| Hazardous Area Certification | NO | |
| Depth | 129.5mm | |
| Length | 95mm | |
| Width | 150mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Panel Mount | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Auxiliary Contacts Available No | ||
Switching Current 16A | ||
Series OT | ||
Terminal Type Screw | ||
Padlock Compatibility No | ||
Minimum Operating Temperature 0°C | ||
Switching Power 75kW | ||
Switching DC Voltage 1000V dc | ||
Switching AC Voltage 415V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, IEC | ||
Hazardous Area Certification NO | ||
Depth 129.5mm | ||
Length 95mm | ||
Width 150mm | ||
Switch Disconnectors for Photovoltaic Systems
The ABB OTDC series switch-disconnectors are expertly designed for PV applications and are most commonly used to isolate single strings or arrays of solar panels and battery banks. The switch disconnectors can also act as the main switch for the entire photovoltaic application.
Compact size
Unique safety features
Simple and quick installation
Safe and reliable
OTDC 16…32 Amperes
OTDC from 16…32 Amperes have numerous DC ratings within the same footprint space and the rated operational voltage can be scaled up to 1000 V to suit your application. Tunnel terminals capture fine stranded wires and they are wide enough to allow wires up to 16 mm and short circuit bars are preinstalled as standard.
OTDC 100...250
OTDC switches from 100…250 Amperes are the only 2-pole solution in the market with an operational voltage of 1000 VDC. This is possible thanks to carefully optimized arc plates and dual magnetic breaking.The switches are symmetrical in design and connections are independent of polarity, meaning they can work in both ways.
The OT range of switch disconnectors are suitable for use in a variety of applications including motor control centres, switchboards and as main switches in machines.
