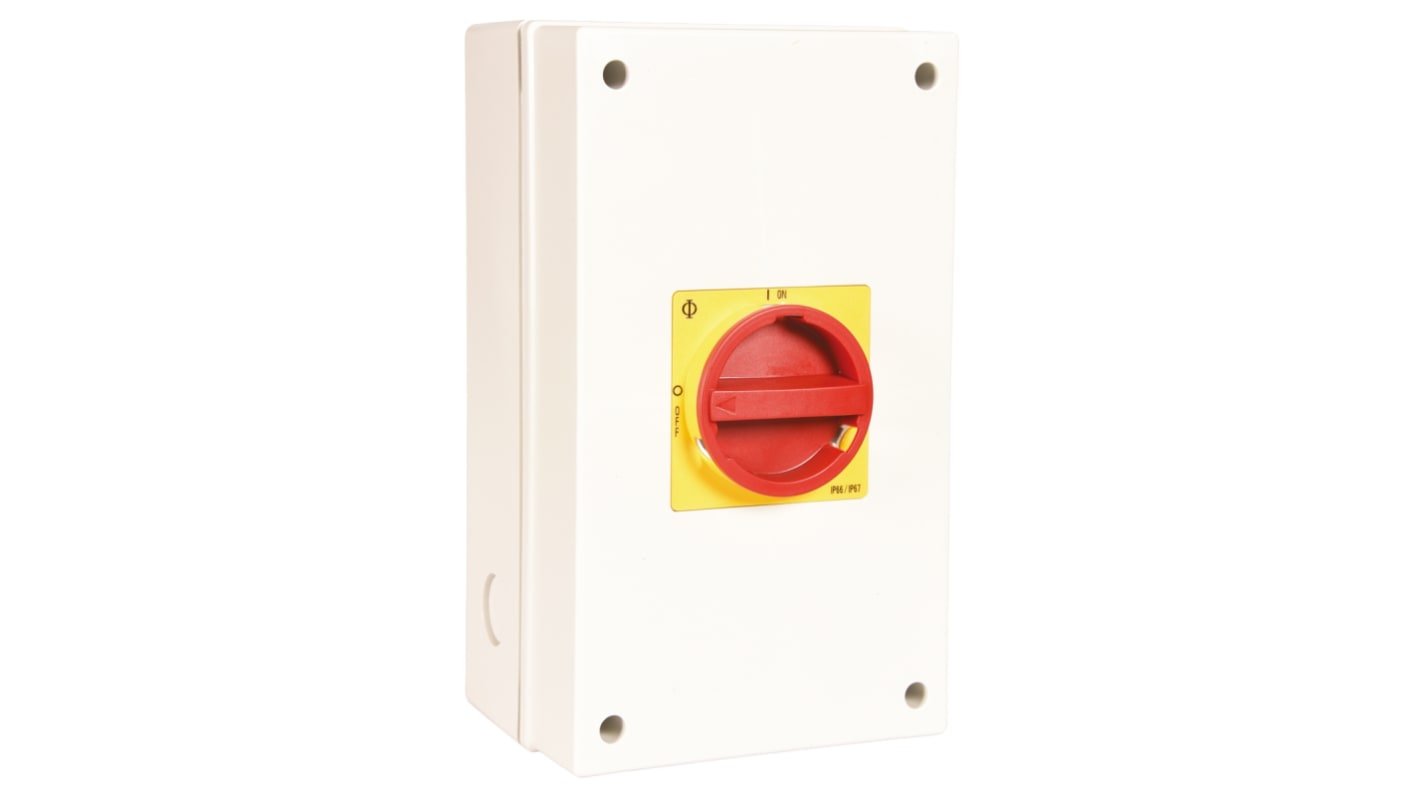

Kraus & Naimer 4P Pole Isolator Switch - 100A Maximum Current, 30kW Power Rating, IP66, IP67
- RS Stock No.:
- 828-5290
- Mfr. Part No.:
- KG100 T204/GBA290 *KL1V
- Brand:
- Kraus & Naimer
10 In stock - FREE next working day delivery available
Added
Price Each
£120.90
(exc. VAT)
£145.08
(inc. VAT)
| Units | Per unit |
| 1 + | £120.90 |
- RS Stock No.:
- 828-5290
- Mfr. Part No.:
- KG100 T204/GBA290 *KL1V
- Brand:
- Kraus & Naimer
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
3 & 4 Pole Switch Disconnectors, IP66/67
A range of grey enclosed Kraus & Naimer 3 and 4 pole emergency-off switch disconnectors, available in 80A, 100A and 125A. The switches have a red/yellow padlockable handle and for added saftey measure are interlocked in "ON" position to prevent panel door opening.
Earth terminal included
Optional black handle available
Optional black handle available
Kraus & Naimer
All have a nominal voltage of 690V. The stated motor rating utilisation category AC23A/AC3 is for 3 phase 380/440V supply.
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 4P |
| Maximum Current | 100A |
| IP Rating | IP66, IP67 |
| Power Rating | 30 kW, 37kW |
| Voltage Rating | 690 V, 380 → 415V |
| Electrical Phase | 3 |
| Handle Colour | Black |
| Accepts Padlocks | Yes |
| Normal State Configuration | NO |
| Length | 250mm |
| Width | 145mm |
| Depth | 107mm |
| Throw Configuration | Single |
- RS Stock No.:
- 828-5290
- Mfr. Part No.:
- KG100 T204/GBA290 *KL1V
- Brand:
- Kraus & Naimer
