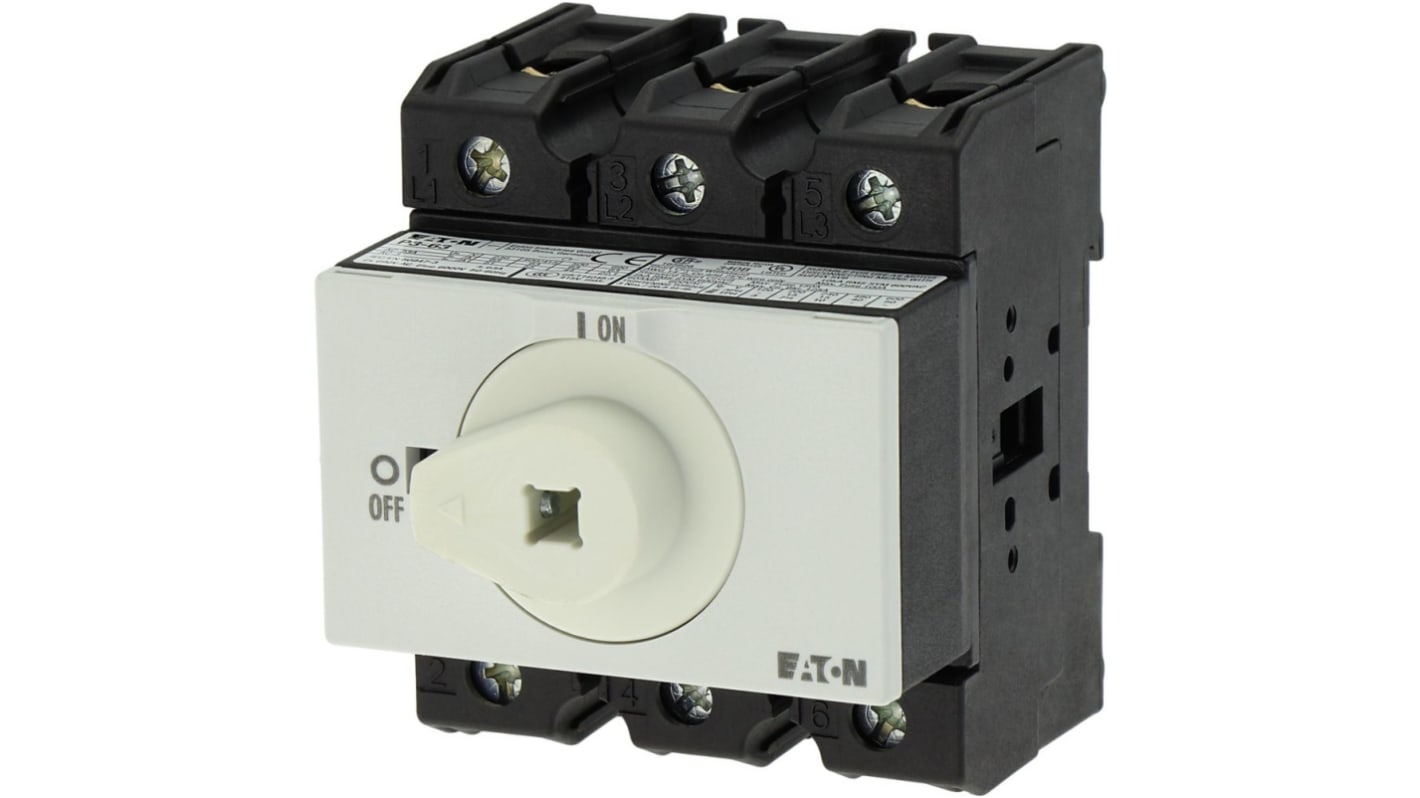

Eaton 3P Pole Panel Mount Isolator Switch - 63A Maximum Current, 30kW Power Rating, IP65
- RS Stock No.:
- 805-5667
- Distrelec Article No.:
- 304-10-346
- Mfr. Part No.:
- 172784 P3-63/M4/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£85.19
(exc. VAT)
£102.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 3 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £85.19 |
*price indicative
- RS Stock No.:
- 805-5667
- Distrelec Article No.:
- 304-10-346
- Mfr. Part No.:
- 172784 P3-63/M4/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3P | |
Maximum Current | 63A | |
Mounting Type | Panel Mount | |
IP Rating | IP65 | |
Power Rating | 30kW | |
Voltage Rating | 690V ac | |
Accepts Padlocks | Yes | |
Handle Colour | Red | |
Normal State Configuration | NO | |
Enclosed/Not Enclosed | Not-enclosed | |
Switch Rating | 340A | |
Length | 340mm | |
Width | 95mm | |
Depth | 88mm | |
Throw Configuration | Single | |
Terminal Type | Screw | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3P | ||
Maximum Current 63A | ||
Mounting Type Panel Mount | ||
IP Rating IP65 | ||
Power Rating 30kW | ||
Voltage Rating 690V ac | ||
Accepts Padlocks Yes | ||
Handle Colour Red | ||
Normal State Configuration NO | ||
Enclosed/Not Enclosed Not-enclosed | ||
Switch Rating 340A | ||
Length 340mm | ||
Width 95mm | ||
Depth 88mm | ||
Throw Configuration Single | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
Eaton Isolator Switch, 690V Maximum Rated Operation Voltage, 340A Switch Rating - P3 Series - 172784 P3-63/M4/SVB
In need of a quick and easy way to shut down your system? Install this three-pole isolator switch from Eaton to boost safety. It cuts the power to attached circuits cold, so you can safely deal with emergencies or carry out repairs in your industrial, engineering or machine-building applications. For versatility, this unit works with motors as small as 3HP at 120V up to 50HP at 600V. A high mechanical lifespan of 100,000 uses means it will be with you for the long haul.
Features & Benefits
• Compact dimensions of 95 (W) x 340 (L) x 88mm (H) save space in busy setups
• IP65 rating indicates it's dustproof and water resistant to handle challenging environments
• 15g shock resistance for protection against vibrations and knocks
• Performs in challenging temperatures from -25°C to +50°C to suit demanding applications
• Screw terminals speed up wiring and achieve vibration-proof connections
• IP65 rating indicates it's dustproof and water resistant to handle challenging environments
• 15g shock resistance for protection against vibrations and knocks
• Performs in challenging temperatures from -25°C to +50°C to suit demanding applications
• Screw terminals speed up wiring and achieve vibration-proof connections
What's the benefit of a 3-pole isolator over a single-pole alternative?
Three-pole switches shut down all three AC phases, preventing wayward currents from harming users or damaging industrial machinery. Single-pole options are best suited to single-phase electrical supplies, like those in domestic setups.
Note
Eaton formerly known as Moeller
