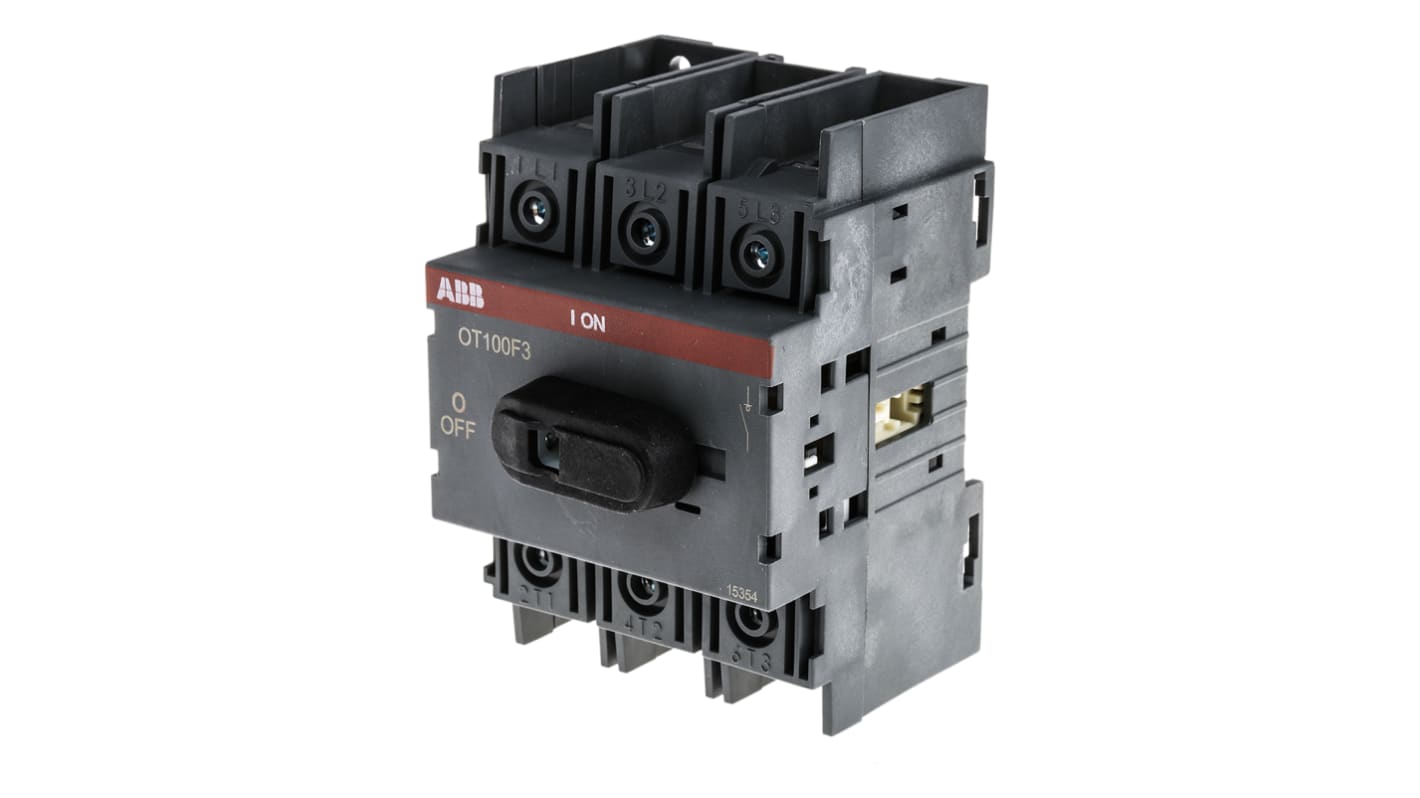

ABB 3-Pole DIN Rail Non-Fused Isolator Switch -, IP20, 100A, 560 kW
- RS Stock No.:
- 686-7288
- Mfr. Part No.:
- OT100F3 1SCA105004R1001
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£65.74
(exc. VAT)
£78.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
- Plus 14 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £65.74 |
| 5 - 9 | £62.47 |
| 10 - 24 | £59.16 |
| 25 - 49 | £55.88 |
| 50 + | £52.59 |
*price indicative
- RS Stock No.:
- 686-7288
- Mfr. Part No.:
- OT100F3 1SCA105004R1001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Non-Fused Isolator Switch | |
| Mount Type | DIN Rail | |
| IP Rating | IP20 | |
| Electrical Phase | 3 | |
| Handle Colour | Black | |
| Series | OT | |
| Terminal Type | Screw | |
| Switching Current | 100A | |
| Auxiliary Contacts Available | No | |
| Minimum Operating Temperature | 40°C | |
| Switching Power | 560kW | |
| Switching AC Voltage | 600V ac | |
| Switching DC Voltage | 1000V dc | |
| Padlock Compatibility | No | |
| Maximum Operating Temperature | 40°C | |
| Width | 70mm | |
| Standards/Approvals | UL, IEC | |
| Depth | 74mm | |
| Length | 100mm | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Non-Fused Isolator Switch | ||
Mount Type DIN Rail | ||
IP Rating IP20 | ||
Electrical Phase 3 | ||
Handle Colour Black | ||
Series OT | ||
Terminal Type Screw | ||
Switching Current 100A | ||
Auxiliary Contacts Available No | ||
Minimum Operating Temperature 40°C | ||
Switching Power 560kW | ||
Switching AC Voltage 600V ac | ||
Switching DC Voltage 1000V dc | ||
Padlock Compatibility No | ||
Maximum Operating Temperature 40°C | ||
Width 70mm | ||
Standards/Approvals UL, IEC | ||
Depth 74mm | ||
Length 100mm | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- FI
ABB Non-Fused Isolator Switch, 2.5kA Switch Rating, 750V AC Voltage Rating - 1SCA105004R1001
Choose this non-fused isolator switch from ABB when you need a fast way to break current in your circuitry. It's ideal for safely shutting off the flow of electricity to specific machine parts for repair or maintenance. This unit's at home in three-phase setups, so it's suited to common industrial jobs. Its three poles give you the power to manage multiple circuits at once. Installation is done in a jiffy, thanks to screw terminals that make it quick to achieve a secure fix.
Features & Benefits
• 37kW power rating for use with demanding applications
• DIN rail mounting makes set-up swift and straightforward
• Mechanical durability of 20,000 cycles, so you get long-term performance
• Compact dimensions of 100 (L) x 70 (W) x 74mm (D) mean it's space-efficient
• 360g weight minimises surface strain
Applications
• Construction industry
• Factory automation
• Metalworking facilities
Is this non-fused isolator switch protected from hazardous overvoltages?
Yes. This component has inbuilt 8kV impulse protection so it prevents high voltage spikes from damaging your equipment.
Does this product have any other safety features?
Yes. This unit's IP20-rated which means it's touch-proof and resistant to wires bigger than 12mm.
