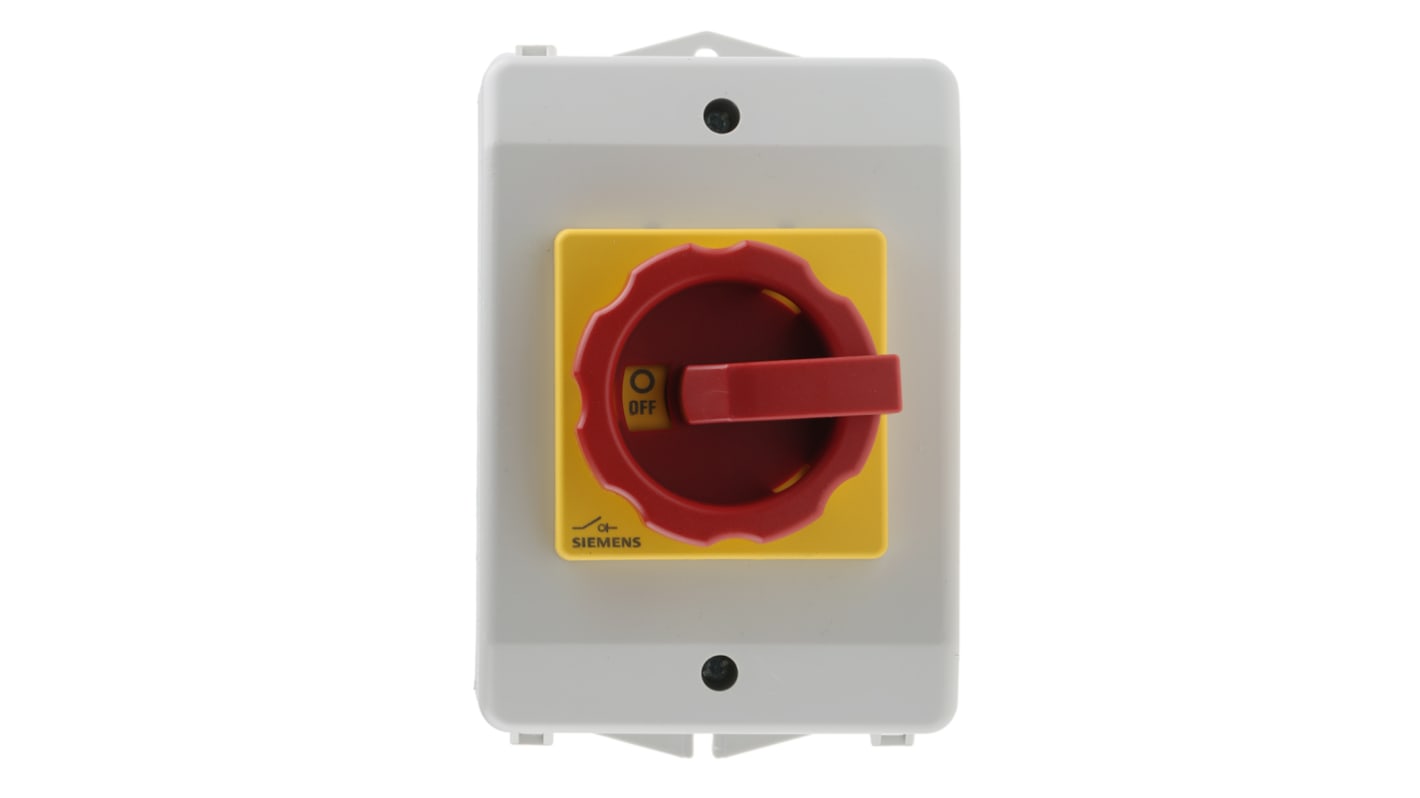

Siemens 3P Pole Isolator Switch - 16A Maximum Current, 7.5kW Power Rating, IP65
- RS Stock No.:
- 518-6761
- Mfr. Part No.:
- 3LD2064-1GP53
- Brand:
- Siemens
Subtotal (1 unit)*
£47.78
(exc. VAT)
£57.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.78 |
*price indicative
- RS Stock No.:
- 518-6761
- Mfr. Part No.:
- 3LD2064-1GP53
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 3P | |
| Maximum Current | 16A | |
| IP Rating | IP65 | |
| Power Rating | 7.5kW | |
| Voltage Rating | 690V ac | |
| Electrical Phase | 3 | |
| Accepts Padlocks | Yes | |
| Handle Colour | Red | |
| Normal State Configuration | NO/NC | |
| Auxiliary Contacts Available | Yes | |
| Length | 100mm | |
| Width | 140mm | |
| Depth | 81mm | |
| Throw Configuration | Single | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 3P | ||
Maximum Current 16A | ||
IP Rating IP65 | ||
Power Rating 7.5kW | ||
Voltage Rating 690V ac | ||
Electrical Phase 3 | ||
Accepts Padlocks Yes | ||
Handle Colour Red | ||
Normal State Configuration NO/NC | ||
Auxiliary Contacts Available Yes | ||
Length 100mm | ||
Width 140mm | ||
Depth 81mm | ||
Throw Configuration Single | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- DE
Siemens Isolator Switch, Accepts Padlocks, 690V AC Insulation Voltage - SENTRON Series - 3LD2064-1GP53
Want a solution for cutting power to a circuit quickly? This isolator switch from Siemens gets the job done in a snap. Use it to disconnect electrical circuits from a power source in an emergency or when you're carrying out routine maintenance. A 3-phase configuration means the unit can shut off power across all phases simultaneously, boosting safety. As it has a voltage rating of 690V AC, it's suitable for use in high-voltage applications. Streamlined dimensions of 81 (D) x 100 (L) x 140mm (W) make it a comfortable fit in setups with limited space. Thanks to a mechanical service life of 100,000 switching cycles, you can rely on this switch to last.
Features & Benefits
• Operates safely in a temperature range between -25°C and +55°C, so it's well suited to industrial settings
• Red handle for instant identification
• IP65 rating indicates it's dustproof and shrugs off low-pressure water jets
• Finger-safe to protect against electric shocks
• Current rating of 16A offers broad compatibility with commonly used equipment
• Red handle for instant identification
• IP65 rating indicates it's dustproof and shrugs off low-pressure water jets
• Finger-safe to protect against electric shocks
• Current rating of 16A offers broad compatibility with commonly used equipment
What's the power rating of this isolator switch?
This isolator switch has a power rating of 7.5kW, so it's an energy-conscious option.
