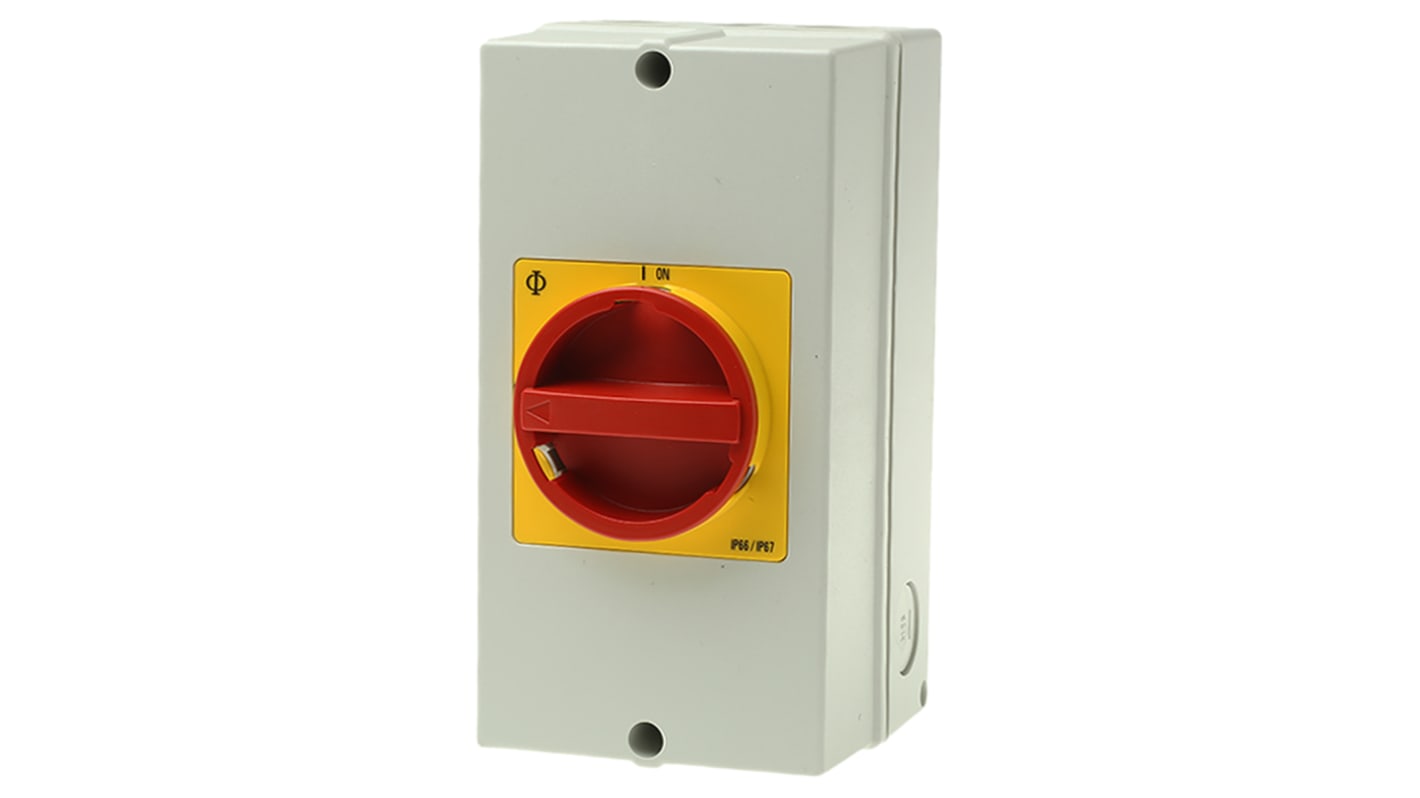

Kraus & Naimer 4P Pole Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP66, IP67
- RS Stock No.:
- 381-3685
- Mfr. Part No.:
- KG64 T204/GBA301 * KL1V
- Brand:
- Kraus & Naimer
Available to back order for despatch 07/05/2024
Added
Price Each
£62.67
(exc. VAT)
£75.20
(inc. VAT)
| Units | Per unit |
| 1 + | £62.67 |
- RS Stock No.:
- 381-3685
- Mfr. Part No.:
- KG64 T204/GBA301 * KL1V
- Brand:
- Kraus & Naimer
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Polycarbonate Enclosed Starter
High impact grey polycarbonate enclosure, UV stabilised to IP66/67
Low profile red/yellow operating handle integral with enclosure cover
Lockable with up to three padlocks in the OFF position; lid interlocked in the ON position
Earth terminal included
Nominal switching voltage 690 V
Low profile red/yellow operating handle integral with enclosure cover
Lockable with up to three padlocks in the OFF position; lid interlocked in the ON position
Earth terminal included
Nominal switching voltage 690 V
Note
Stated motor rating, Util. Cat. AC23A/AC3 is for a 3 phase 380/440 V supply.
Standards
EN60947, VDE 0660, EN 60204
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 4P |
| Maximum Current | 63A |
| IP Rating | IP66, IP67 |
| Power Rating | 22kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Handle Colour | Red/Yellow |
| Accepts Padlocks | Yes |
| Length | 190mm |
| Width | 100mm |
| Depth | 110mm |
| Terminal Type | Wire Lead |
| Maximum Operating Temperature | +55°C |
