Schneider Electric 3-Pole Panel Mount Isolator Switch -, IP65, 20A, 11 kW
- RS Stock No.:
- 279-6135
- Mfr. Part No.:
- VCF01
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£51.17
(exc. VAT)
£61.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 14 unit(s) shipping from 04 May 2026
- Plus 71 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.17 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 279-6135
- Mfr. Part No.:
- VCF01
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Panel Mount | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Red | |
| Switching Current | 20A | |
| Series | TeSyS Vario | |
| Auxiliary Contacts Available | No | |
| Terminal Type | Screw Clamp | |
| Padlock Compatibility | Yes | |
| Switching Power | 11kW | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 690V ac | |
| Maximum Operating Temperature | 50°C | |
| Hazardous Area Certification | No | |
| Length | 1300000.00mm | |
| Depth | 60mm | |
| Standards/Approvals | RoHS, EU | |
| Width | 60mm | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Panel Mount | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Red | ||
Switching Current 20A | ||
Series TeSyS Vario | ||
Auxiliary Contacts Available No | ||
Terminal Type Screw Clamp | ||
Padlock Compatibility Yes | ||
Switching Power 11kW | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 690V ac | ||
Maximum Operating Temperature 50°C | ||
Hazardous Area Certification No | ||
Length 1300000.00mm | ||
Depth 60mm | ||
Standards/Approvals RoHS, EU | ||
Width 60mm | ||
Better World Product Yes | ||

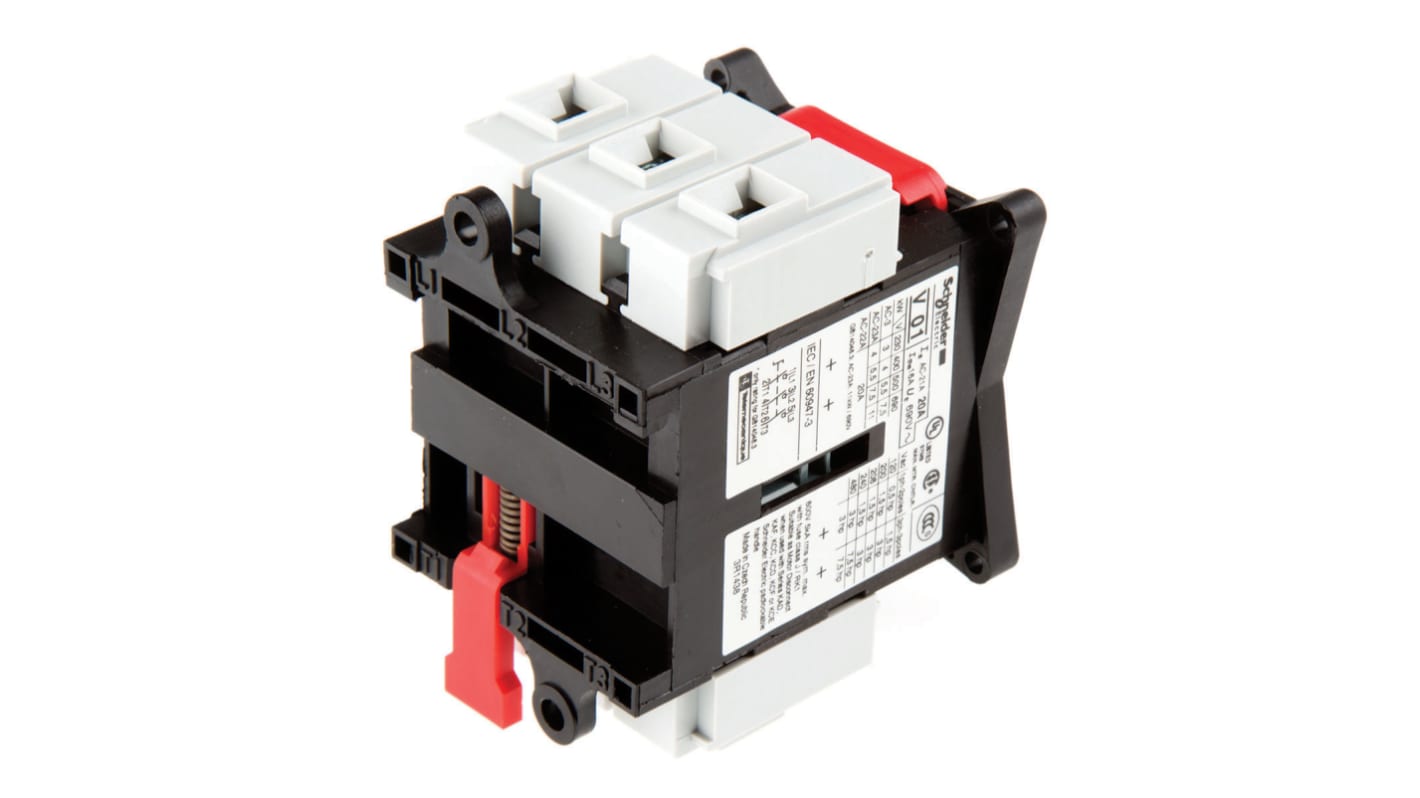

Schneider Electric VARIO Series Isolator Switch, 20A Switching Current, IP65 - VCF01
This isolator switch provides a robust means of disconnecting three-phase supplies for control and emergency-stop duties in industrial panels. Designed for direct mounting on doors, it offers manual rotary control with a front plate that clearly indicates open and closed positions and supports padlocking for secure isolation during maintenance.
Features & Benefits
• 20A conventional thermal current enabling safe circuit isolation
• 690V switching capability supporting high-voltage applications
• 11kW switching power at 690V for motor and load control
• IP65 enclosure rating for protection in harsh environments
• Screw clamp terminals accepting up to 10mm² conductors for secure connections
• Rotary red handle with padlock compatibility for clear status and lockout
• 690V switching capability supporting high-voltage applications
• 11kW switching power at 690V for motor and load control
• IP65 enclosure rating for protection in harsh environments
• Screw clamp terminals accepting up to 10mm² conductors for secure connections
• Rotary red handle with padlock compatibility for clear status and lockout
Applications
• Suitable for door-mounted emergency-stop isolation in machine control systems
• Ideal for isolating 3-phase motors in production lines
• used with control panels in automation and electrical distribution cabinets
• Can be used for maintenance lock-out procedures in industrial plants
• Ideal for isolating 3-phase motors in production lines
• used with control panels in automation and electrical distribution cabinets
• Can be used for maintenance lock-out procedures in industrial plants
What Terminal connection types are provided for power wiring?
Power conductors connect via screw clamp terminals sized for up to 10mm² solid or 6mm² flexible with ferrules, tightened to 2.1N·m.
How does the device perform under short-circuit conditions?
It has a rated conditional short-circuit current of 10kA at 400V with associated 20A fuses and a making capacity of 200A at 400V for specified utilisation categories.
What mechanical endurance can be expected from the switch mechanism?
The mechanism is rated for 100,000 mechanical cycles and 100,000 electrical cycles in AC-21 utilisation.
Which environmental limits apply to safe operation?
The unit is specified to operate between -20°C and 50°C and withstand vibration and shock levels specified by IEC test standards.
Note
The figures quoted for rated operational power within the price table are with respect to a voltage of 230/240V, with figures within brackets ( ) being those with respect to a voltage of 690V.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.
Approvals
UL, CSA, GL
