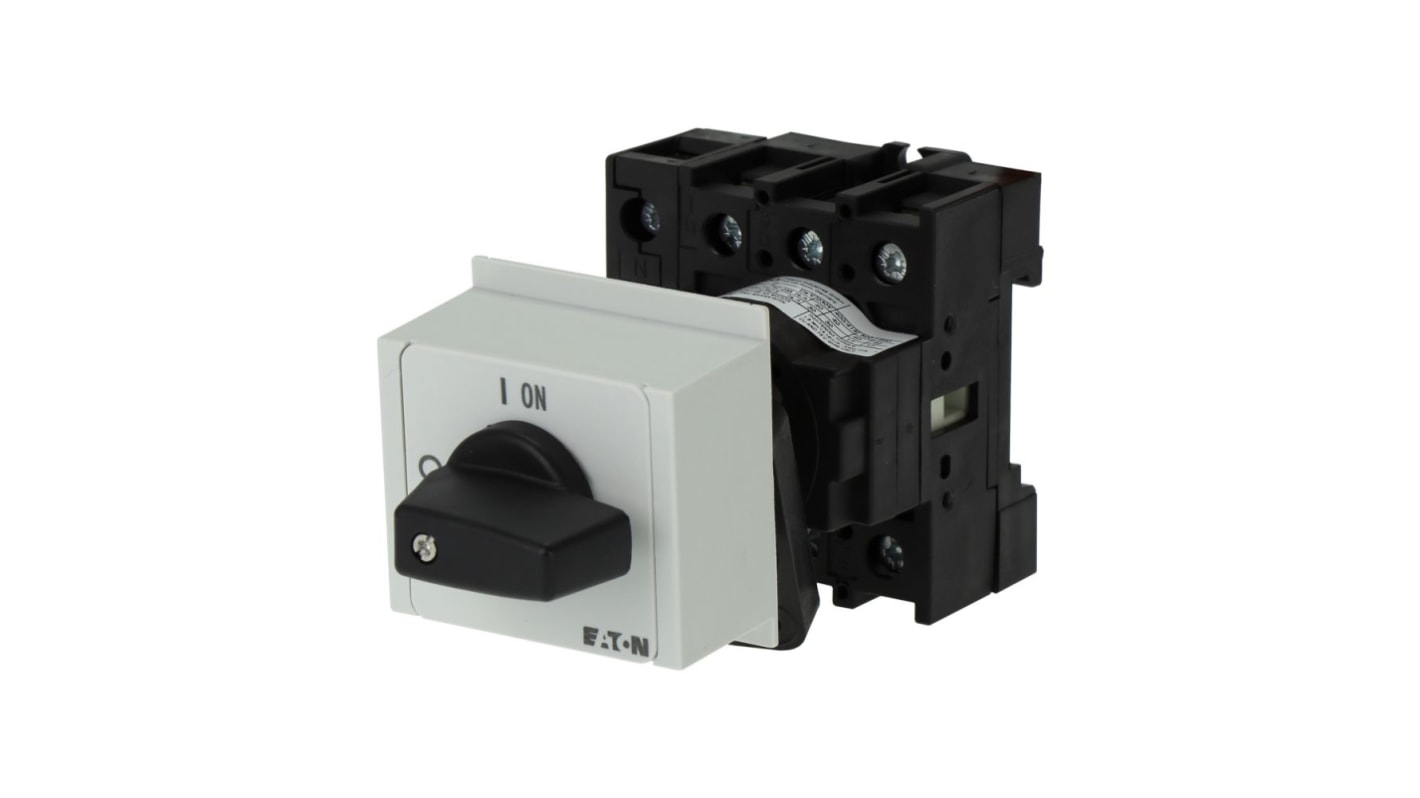

Eaton 3-Pole Distribution Board Isolator Switch -, IP30, 40 A, 22 kW
- RS Stock No.:
- 273-6504
- Mfr. Part No.:
- 199933 P1-40/IVS/N
- Brand:
- Eaton
Subtotal (1 unit)*
£66.53
(exc. VAT)
£79.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.53 |
*price indicative
- RS Stock No.:
- 273-6504
- Mfr. Part No.:
- 199933 P1-40/IVS/N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Distribution Board | |
| IP Rating | IP30 | |
| Handle Colour | Black | |
| Switching Current | 40 A | |
| Series | P1 | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | Yes | |
| Switching AC Voltage | 690 V ac | |
| Switching Power | 22kW | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Depth | 90mm | |
| Length | 90mm | |
| Standards/Approvals | IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3 | |
| Hazardous Area Certification | No | |
| Width | 63 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Distribution Board | ||
IP Rating IP30 | ||
Handle Colour Black | ||
Switching Current 40 A | ||
Series P1 | ||
Terminal Type Screw | ||
Auxiliary Contacts Available Yes | ||
Switching AC Voltage 690 V ac | ||
Switching Power 22kW | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Depth 90mm | ||
Length 90mm | ||
Standards/Approvals IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3 | ||
Hazardous Area Certification No | ||
Width 63 mm | ||
- COO (Country of Origin):
- GB
The Eaton On Off switch fitted with auxiliary contact, black thumb grip and front plate. This switch has 50 operations per Hz operating frequency with 300000 operations mechanical lifespan. This switch offers damp heat, constant to IEC 60068-2-78 and damp heat, cyclic to IEC 60068-2-30 climatic proofing.
UKCE and CE compliances
90 degree switching angle
Class III overvoltage category
IEC EN 60947 3 and IEC EN 60204 certifications
