Eaton 3-Pole Flush Isolator Switch -, IP65

RS Stock No.:: 266-4601
Mfr. Part No.:: 172768 P1-25/M4/SVB-SW/HI11
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65

Subtotal (1 unit)*

£67.88

(exc. VAT)

£81.46

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 06 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£67.88

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4601
Mfr. Part No.:: 172768 P1-25/M4/SVB-SW/HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Flush
	IP Rating	IP65
	Terminal Type	Screw
	Auxiliary Contacts Available	Yes
	Series	1727
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Length	340mm
	Width	72mm
	Hazardous Area Certification	No
	Depth	340mm
	Standards/Approvals	IEC/EN 60204, CE, CSA, CSA-C22.2 No. 60947-4-1-14, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, CSA-C22.2 No. 94, CSA Class No.: 3211-05, VDE 0660, CSA File No.: 012528

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Flush
	IP Rating IP65
	Terminal Type Screw
	Auxiliary Contacts Available Yes
	Series 1727
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Length 340mm
	Width 72mm
	Hazardous Area Certification No
	Depth 340mm
	Standards/Approvals IEC/EN 60204, CE, CSA, CSA-C22.2 No. 60947-4-1-14, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, CSA-C22.2 No. 94, CSA Class No.: 3211-05, VDE 0660, CSA File No.: 012528

COO (Country of Origin):: GB

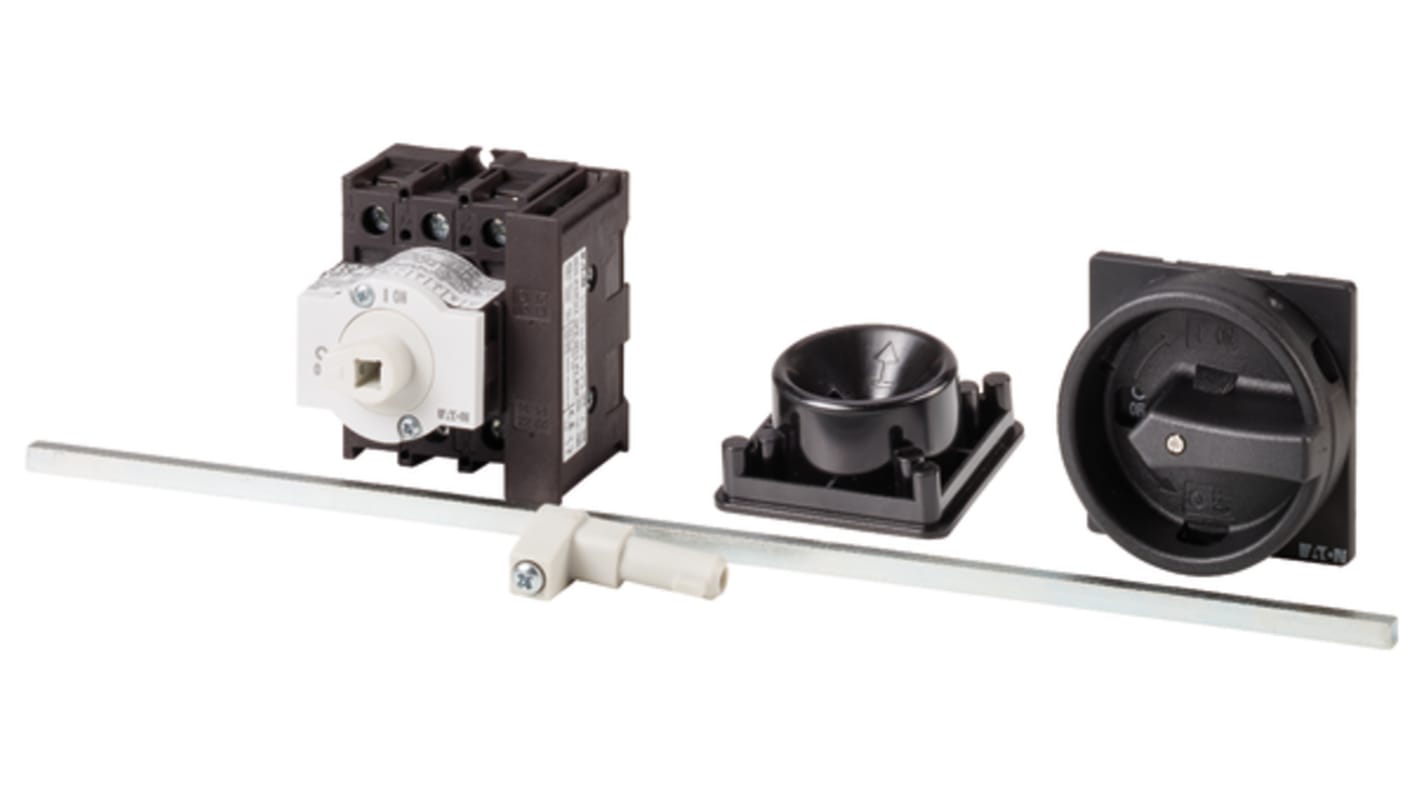

The Eaton main switch with emergency switching off function fitted with metal shaft for a control panel and a rotary handle with a locking ring to protect from damage of excess current, overloads and short circuit. It assists in controlling, switching and managing voltage power for enhanced reliability and safety in industrial, building or machine construction applications.

Corrosion resistant

Thermally stable
