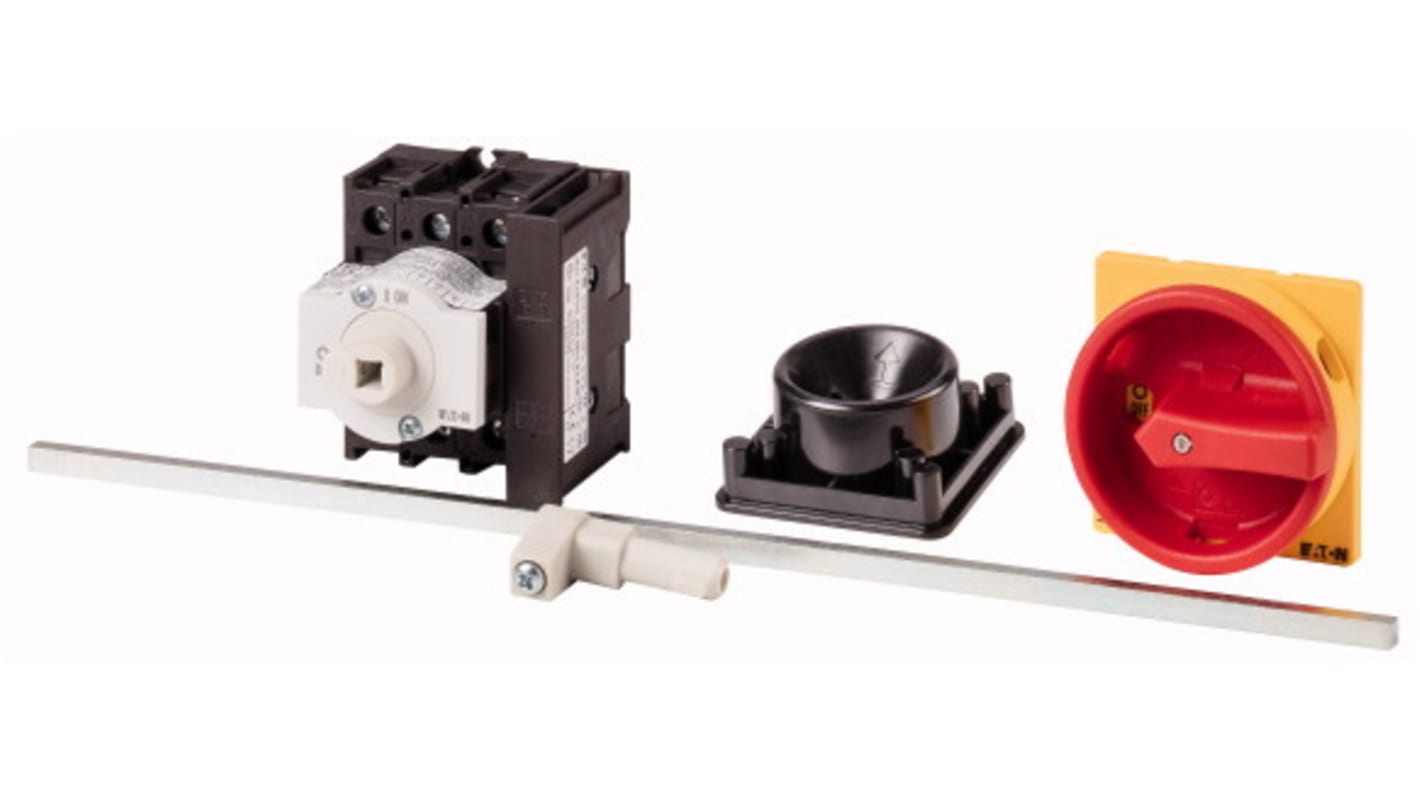

Eaton 3-Pole Rear Isolator Switch -, IP65, 25A, 13 kW

RS Stock No.:: 266-4600
Mfr. Part No.:: 172767 P1-25/M4/SVB/HI11
Brand:: Eaton

Eaton 3-Pole Rear Isolator Switch -, IP65, 25A, 13 kW

Subtotal (1 unit)*

£67.88

(exc. VAT)

£81.46

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 21 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£67.88

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4600
Mfr. Part No.:: 172767 P1-25/M4/SVB/HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Rear
	IP Rating	IP65
	Auxiliary Contacts Available	Yes
	Switching Current	25A
	Series	1727
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Switching Power	13kW
	Switching DC Voltage	24V
	Switching AC Voltage	690V
	Maximum Operating Temperature	50°C
	Hazardous Area Certification	No
	Standards/Approvals	VDE 0660, UL File No.: E36332, UL, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CSA, CE
	Width	72mm
	Length	340mm
	Depth	340mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Rear
	IP Rating IP65
	Auxiliary Contacts Available Yes
	Switching Current 25A
	Series 1727
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Switching Power 13kW
	Switching DC Voltage 24V
	Switching AC Voltage 690V
	Maximum Operating Temperature 50°C
	Hazardous Area Certification No
	Standards/Approvals VDE 0660, UL File No.: E36332, UL, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CSA, CE
	Width 72mm
	Length 340mm
	Depth 340mm

COO (Country of Origin):: GB

Eaton Isolator Switch, 25A Maximum Current, 3 Poles - 172767 P1-25/M4/SVB/HI11

This isolator switch is a robust electrical component designed for high-performance applications. Featuring 3 poles and a maximum current of 25A, it provides a dependable solution for effectively isolating circuits. The rear panel mounting ensures a secure installation, making it suitable for various industrial setups. With an IP65 rating on the front, this device is engineered to withstand dust and moisture, supporting its use in demanding environments. It also has a power rating of 11kW, highlighting its capability for heavy-duty operations.

Features & Benefits

• Designed with 3 poles for efficient circuit isolation
• Rated at a maximum current of 25A for heavy load usage
• Rear panel mounting simplifies installation and maintenance
• Suitable for power operations up to 11kW
• Ideal for industrial and electrical environments

Applications

• Used for circuit isolation in industrial machinery
• Ideal for control panels in automated systems
• Utilised in motor control centres for reliable operation
• Suitable for harsh environments including outdoor installations
• Frequently applied in electrical distribution systems

What is the significance of the IP65 rating for this device?

The IP65 rating indicates that the device is completely dust-tight and protected against water jets, ensuring durability in various conditions.

How does the rear panel mounting feature enhance usability?

This mounting type allows for straightforward installation and easy access for maintenance, streamlining setup in industrial applications.

What types of circuits can benefit from a 25A isolator switch?

An isolator switch with a 25A rating is suitable for medium-sized electrical loads, ensuring safe disconnection in various applications.

What electrical specifications should I consider for suitable applications?

When selecting an isolator switch, consider the maximum current ratings and power ratings to ensure compatibility with your electrical systems.
