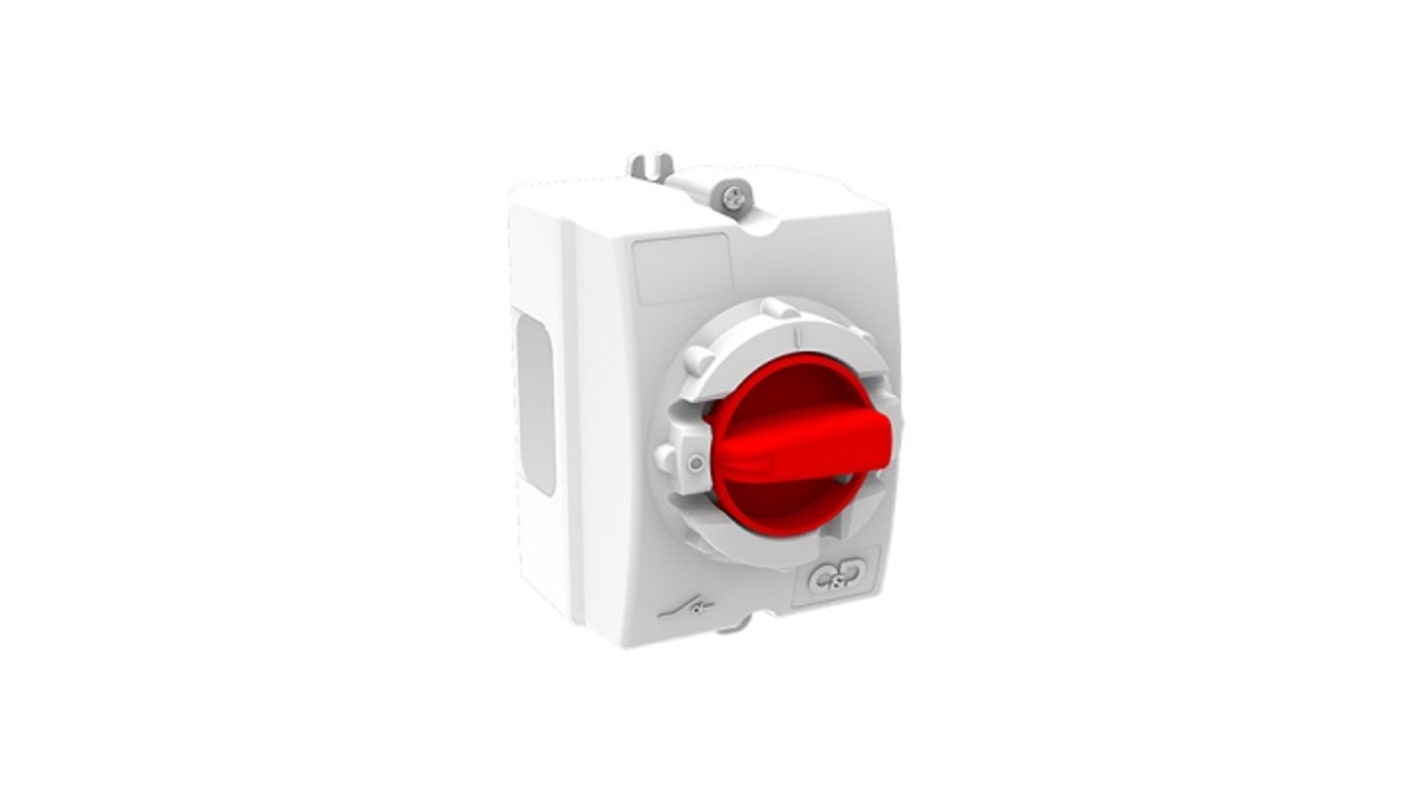

Craig & Derricott 4-Pole Isolator Switch -, IP66, 25A
- RS Stock No.:
- 254-8872
- Mfr. Part No.:
- EDDKG323NL
- Brand:
- Craig & Derricott
Subtotal (1 unit)*
£82.31
(exc. VAT)
£98.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.31 |
*price indicative
- RS Stock No.:
- 254-8872
- Mfr. Part No.:
- EDDKG323NL
- Brand:
- Craig & Derricott
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Craig & Derricott | |
| Number of Poles | 4 | |
| Product Type | Isolator Switch | |
| IP Rating | IP66 | |
| Electrical Phase | 3 | |
| Auxiliary Contacts Available | Yes | |
| Series | EDDKG | |
| Switching Current | 25A | |
| Switching AC Voltage | 440V ac | |
| Padlock Compatibility | Yes | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC / BS EN 60947-3 | |
| Select all | ||
|---|---|---|
Brand Craig & Derricott | ||
Number of Poles 4 | ||
Product Type Isolator Switch | ||
IP Rating IP66 | ||
Electrical Phase 3 | ||
Auxiliary Contacts Available Yes | ||
Series EDDKG | ||
Switching Current 25A | ||
Switching AC Voltage 440V ac | ||
Padlock Compatibility Yes | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC / BS EN 60947-3 | ||
- COO (Country of Origin):
- GB
The Craig & Derricott switch disconnector has pad lockable handle which allows for an insertion of up to three padlocks in the ’Off’ position thus preventing the isolator being switched to the ’On’ position. It is interlocked in the ON position preventing the lid from being removed and when padlocked in the OFF position.
Die-cast aluminium enclosed isolation equipment with sealing up to IP66
3P+NL format
Cable entries 2 x M20 top, bottom and back
Compliant to IEC / BS EN 60947-3
