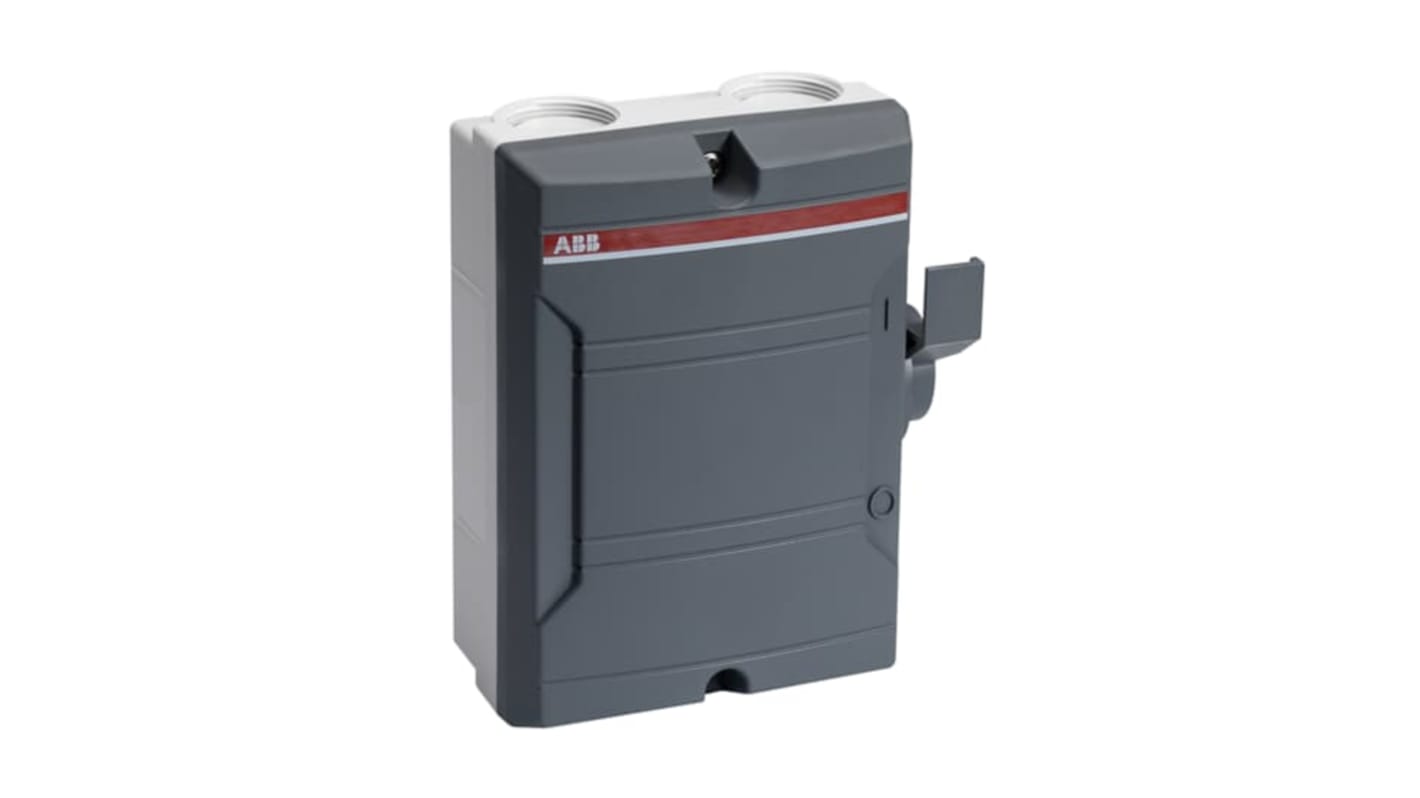

ABB 3P Pole Surface Mount Switch Disconnector - 40A Maximum Current, 15kW Power Rating, IP65
- RS Stock No.:
- 237-3338
- Mfr. Part No.:
- 2CMA142408R1000 BW 340 TPN
- Brand:
- ABB
Subtotal (1 unit)*
£61.00
(exc. VAT)
£73.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.00 |
*price indicative
- RS Stock No.:
- 237-3338
- Mfr. Part No.:
- 2CMA142408R1000 BW 340 TPN
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 3P | |
Maximum Current | 40A | |
Mounting Type | Surface Mount | |
IP Rating | IP65 | |
Power Rating | 15kW | |
Series | 2CMA | |
Model Number | 2CMA142408R1000 | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 3P | ||
Maximum Current 40A | ||
Mounting Type Surface Mount | ||
IP Rating IP65 | ||
Power Rating 15kW | ||
Series 2CMA | ||
Model Number 2CMA142408R1000 | ||
- COO (Country of Origin):
- BG
The enclosure of the ABB's side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colours, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallel cables, both from top and bottom. Membrane grommets are included (IP54). The handle is pad lockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Cable Entry Position Up/Down
Cable Outlets Per Side 2xM32 / 2xM32+M16
Degree of Protection acc. to IEC 60529 IP65
Impact Resistance Housing IK08 Rating
Enclosure Material Plastic
Cable Outlets Per Side 2xM32 / 2xM32+M16
Degree of Protection acc. to IEC 60529 IP65
Impact Resistance Housing IK08 Rating
Enclosure Material Plastic
