ABB 3-Pole Screw, Screw Switch Disconnector -, IP65, 200A, 160 kW
- RS Stock No.:
- 235-1781
- Mfr. Part No.:
- 1SCA022512R6330
- Brand:
- ABB
Subtotal (1 unit)*
£1,450.39
(exc. VAT)
£1,740.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,450.39 |
*price indicative
- RS Stock No.:
- 235-1781
- Mfr. Part No.:
- 1SCA022512R6330
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Mount Type | Screw, Screw | |
| IP Rating | IP65 | |
| Handle Colour | Yellow, Red | |
| Switching Current | 200A | |
| Auxiliary Contacts Available | Yes | |
| Series | OT | |
| Terminal Type | Screw Clamp Terminal | |
| Switching AC Voltage | 1000V ac | |
| Minimum Operating Temperature | 0°C | |
| Switching Power | 160kW | |
| Depth | 230mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC 60947-1-3 | |
| Width | 600mm | |
| Length | 400mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Mount Type Screw, Screw | ||
IP Rating IP65 | ||
Handle Colour Yellow, Red | ||
Switching Current 200A | ||
Auxiliary Contacts Available Yes | ||
Series OT | ||
Terminal Type Screw Clamp Terminal | ||
Switching AC Voltage 1000V ac | ||
Minimum Operating Temperature 0°C | ||
Switching Power 160kW | ||
Depth 230mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC 60947-1-3 | ||
Width 600mm | ||
Length 400mm | ||

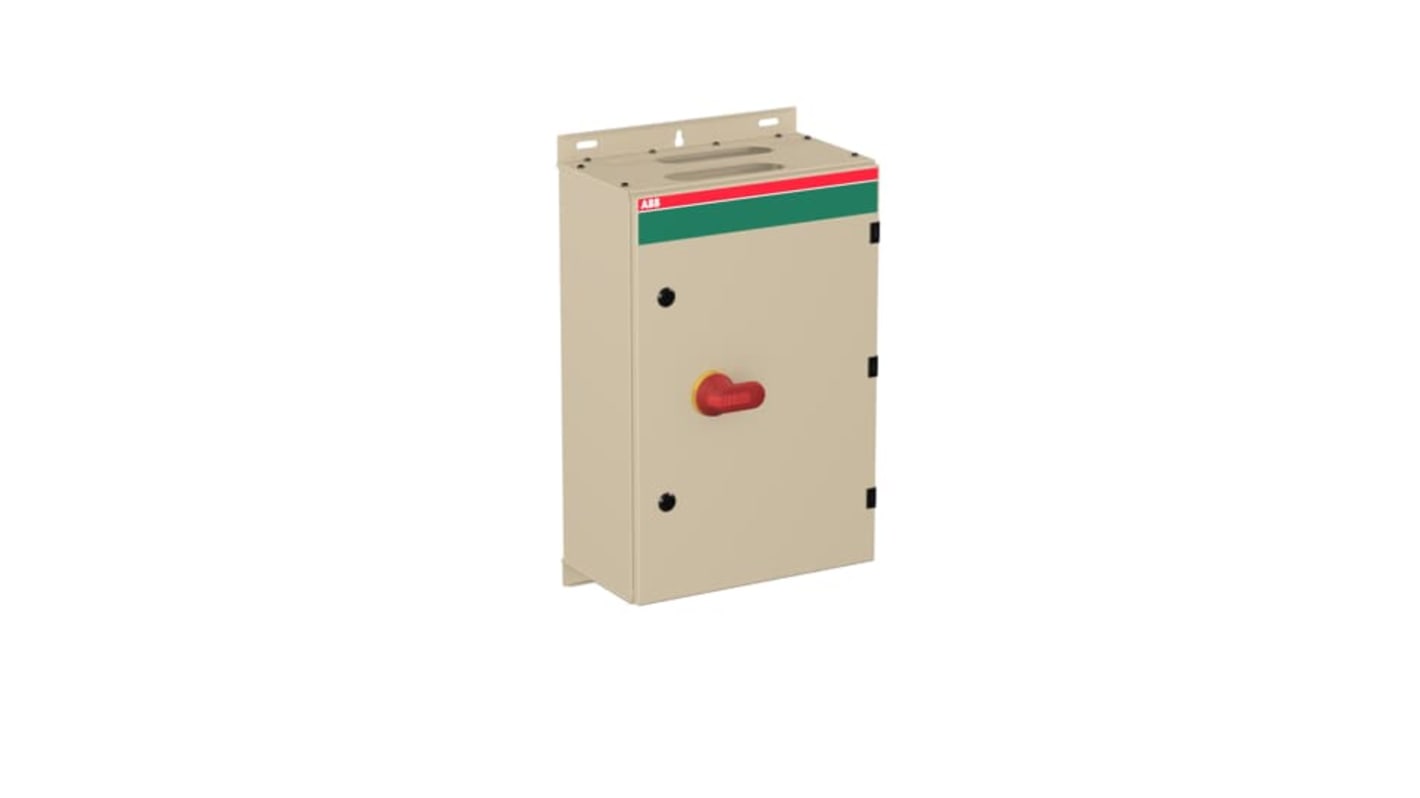

The ABB enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Rated operational voltage 1000V
Number of poles 3
Maximum mounted auxiliary contacts 2NO,2NC
