ABB 3-Pole Screw Switch Disconnector -, IP65, 200A
- RS Stock No.:
- 235-1636
- Mfr. Part No.:
- 1SCA022278R1340
- Brand:
- ABB
Subtotal (1 unit)*
£1,252.56
(exc. VAT)
£1,503.07
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,252.56 |
*price indicative
- RS Stock No.:
- 235-1636
- Mfr. Part No.:
- 1SCA022278R1340
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Mount Type | Screw | |
| IP Rating | IP65 | |
| Handle Colour | Red, Yellow | |
| Series | OT | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw Clamp Terminal | |
| Switching Current | 200A | |
| Switching AC Voltage | 1000V ac | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | 0°C | |
| Depth | 130mm | |
| Hazardous Area Certification | NO | |
| Width | 560mm | |
| Standards/Approvals | -3 Standards, IEC 60947-1 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Mount Type Screw | ||
IP Rating IP65 | ||
Handle Colour Red, Yellow | ||
Series OT | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw Clamp Terminal | ||
Switching Current 200A | ||
Switching AC Voltage 1000V ac | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature 0°C | ||
Depth 130mm | ||
Hazardous Area Certification NO | ||
Width 560mm | ||
Standards/Approvals -3 Standards, IEC 60947-1 | ||
- COO (Country of Origin):
- FI

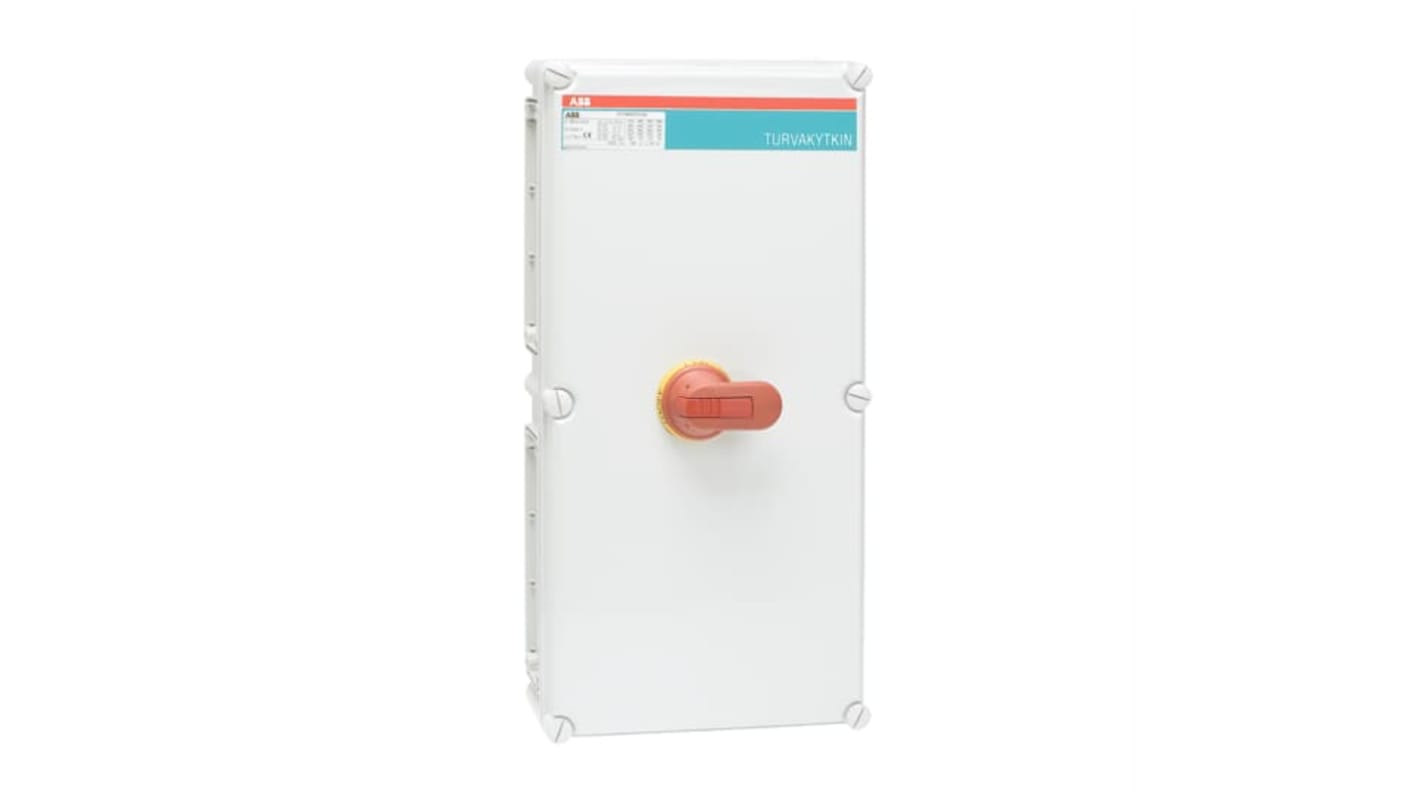

The ABB Safety switch enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is pad lockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.
Rated operational voltage 1000V
Number of poles 3
Maximum mounted auxiliary contacts 2NO,2NC
