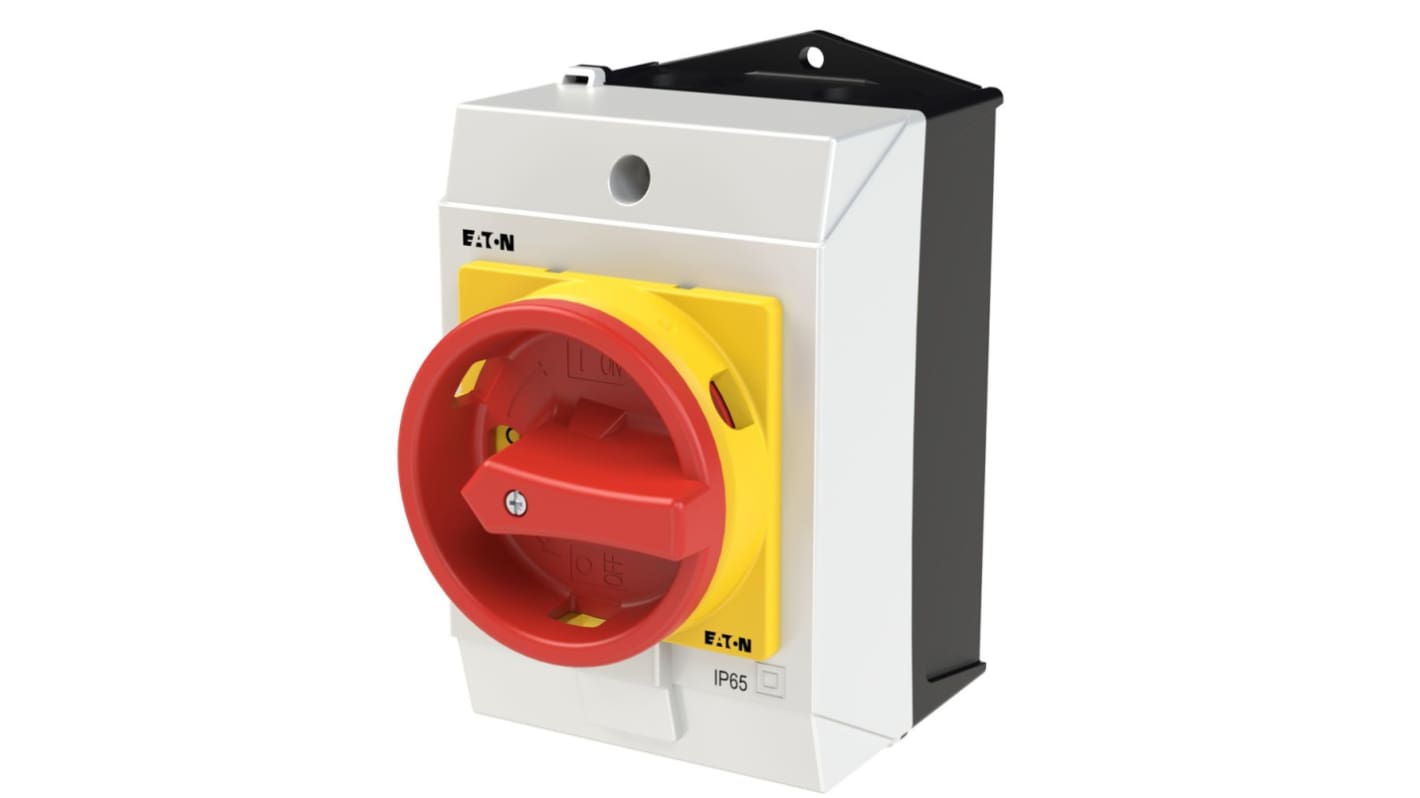

Eaton 1 Pole Surface Mount Non Fused Isolator Switch - 20A Maximum Current, 5.5kW Power Rating, IP65
- RS Stock No.:
- 229-9382
- Mfr. Part No.:
- 207145 T0-1-8200/I1/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£39.03
(exc. VAT)
£46.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.03 |
*price indicative
- RS Stock No.:
- 229-9382
- Mfr. Part No.:
- 207145 T0-1-8200/I1/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1 | |
Maximum Current | 20A | |
Mounting Type | Surface Mount | |
IP Rating | IP65 | |
Power Rating | 5.5kW | |
Voltage Rating | 690V | |
Handle Colour | Red | |
Auxiliary Contacts Available | No | |
Series | Moeller | |
Enclosed/Not Enclosed | Not-enclosed | |
Length | 137mm | |
Width | 80mm | |
Depth | 137mm | |
Maximum Operating Temperature | +40°C | |
Terminal Type | Screw | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Maximum Current 20A | ||
Mounting Type Surface Mount | ||
IP Rating IP65 | ||
Power Rating 5.5kW | ||
Voltage Rating 690V | ||
Handle Colour Red | ||
Auxiliary Contacts Available No | ||
Series Moeller | ||
Enclosed/Not Enclosed Not-enclosed | ||
Length 137mm | ||
Width 80mm | ||
Depth 137mm | ||
Maximum Operating Temperature +40°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- GB
Eaton Non Fused Isolator Switch, 20A Maximum Current, IP65 - 207145 T0-1-8200/I1/SVB
This non-fused isolator switch is designed for reliable surface mounting in various electrical applications. With a robust construction measuring 137mm in length and 80mm in width, it features a red rotary handle for easy operation and emergency switching off functionality. This switch operates at a maximum current of 20A and can withstand voltage ratings of up to 690V, ensuring it meets high-performance demands.
Features & Benefits
• Offers emergency switching off for safety in critical situations
• Surface mount design facilitates quick and easy installation
• Rated IP65 for enhanced protection against dust and water
• Non-enclosed design allows better airflow and cooling
• Screw terminals ensure secure and reliable connections
• Supports power ratings up to 5.5kW for diverse applications
• Surface mount design facilitates quick and easy installation
• Rated IP65 for enhanced protection against dust and water
• Non-enclosed design allows better airflow and cooling
• Screw terminals ensure secure and reliable connections
• Supports power ratings up to 5.5kW for diverse applications
Applications
• Ideal for industrial machinery and control systems
• Used to isolate motors for maintenance without power interruptions
• Suitable for electrical installations in damp environments
• Effective in requiring frequent on/off switching
• Used to isolate motors for maintenance without power interruptions
• Suitable for electrical installations in damp environments
• Effective in requiring frequent on/off switching
What types of electrical connections are supported?
The switch features screw connections, allowing secure and tight terminal contact, which ensures reliability in various electrical setups.
How does the IP65 rating benefit this isolator switch?
The IP65 rating indicates strong resistance to dust ingress and water sprays, making it suitable for both indoor and outdoor use in demanding conditions.
What is the operational temperature range for this device?
It functions effectively within a temperature range of -25°C to +40°C, making it versatile for different environments.
Can this switch handle various motor ratings?
Yes, it supports multiple motor ratings, including 5.5kW at 400V, ensuring its compatibility with diverse applications in the energy sector.
Note
Eaton formerly known as Moeller
