Eaton 2P Pole Surface Mount Non Fused Isolator Switch - 20A Maximum Current, 5.5kW Power Rating, IP65
- RS Stock No.:
- 229-9380
- Mfr. Part No.:
- 207143 T0-1-102/I1/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£39.61
(exc. VAT)
£47.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 38 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.61 |
*price indicative
- RS Stock No.:
- 229-9380
- Mfr. Part No.:
- 207143 T0-1-102/I1/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 2P | |
Maximum Current | 20A | |
Mounting Type | Surface Mount | |
IP Rating | IP65 | |
Power Rating | 5.5kW | |
Voltage Rating | 690V ac | |
Accepts Padlocks | Yes | |
Handle Colour | Red, Yellow | |
Series | Moeller | |
Length | 137mm | |
Width | 80mm | |
Depth | 137mm | |
Minimum Operating Temperature | -25°C | |
Terminal Type | Screw | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 2P | ||
Maximum Current 20A | ||
Mounting Type Surface Mount | ||
IP Rating IP65 | ||
Power Rating 5.5kW | ||
Voltage Rating 690V ac | ||
Accepts Padlocks Yes | ||
Handle Colour Red, Yellow | ||
Series Moeller | ||
Length 137mm | ||
Width 80mm | ||
Depth 137mm | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- GB

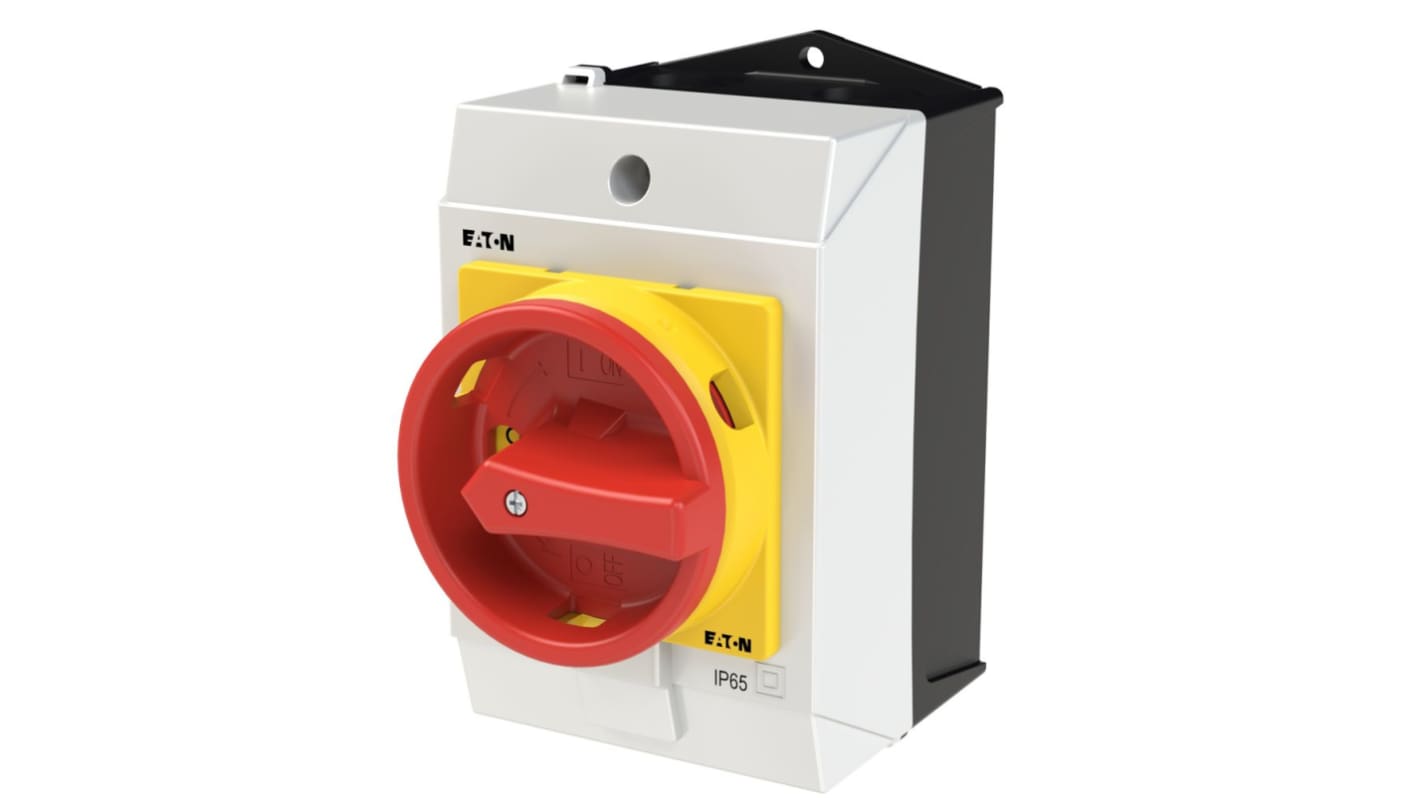

Eaton T0 Main Switch, 20A Current Rating, Surface Mount Type - 207143 T0-1-102/I1/SVB
This non-fused isolator switch is designed for efficient electrical isolation in various applications. It provides robust performance with a surface mount design and dimensions of 137mm length, 80mm width, and 110mm height. It operates at a maximum current of 20A and a voltage rating of 230V AC, making it suitable for a variety of industrial settings.
Features & Benefits
• Emergency switching-off function enhances safety in critical situations
• IP65 rated for protection against dust and water ingress
• Equipped with a red rotary handle for visibility and ease of use
• Lockable in the off position, ensuring safe maintenance
• Mechanical lifespan of 400,000 operations guarantees longevity
• IP65 rated for protection against dust and water ingress
• Equipped with a red rotary handle for visibility and ease of use
• Lockable in the off position, ensuring safe maintenance
• Mechanical lifespan of 400,000 operations guarantees longevity
Applications
• Ideal for isolating circuits in industrial machinery
• Used in electrical control panels for secure power management
• Suitable for maintenance environments requiring safe operator access
• Effective in installations where a robust protective switch is necessary
• Used in electrical control panels for secure power management
• Suitable for maintenance environments requiring safe operator access
• Effective in installations where a robust protective switch is necessary
What is the maximum operational temperature range for this device?
The device operates efficiently within a temperature range of -25°C to +40°C, making it suitable for various environments.
How does the locking facility improve safety during maintenance?
The locking feature allows the switch to be secured in the off position, preventing accidental operation during maintenance tasks and ensuring safety for personnel.
What type of electrical connections does this switch support?
It uses screw terminals for secure and reliable electrical connections, accommodating various wiring configurations for flexibility in installation.
Note
Eaton formerly known as Moeller
