Kraus & Naimer 6P Pole Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65
- RS Stock No.:
- 193-6023
- Mfr. Part No.:
- KG64BT206/GBA004*KL
- Brand:
- Kraus & Naimer
Available to back order for despatch 03/06/2024
Added
Price Each
£142.01
(exc. VAT)
£170.41
(inc. VAT)
| Units | Per unit |
| 1 + | £142.01 |
- RS Stock No.:
- 193-6023
- Mfr. Part No.:
- KG64BT206/GBA004*KL
- Brand:
- Kraus & Naimer
Technical Reference
Legislation and Compliance
Product Details

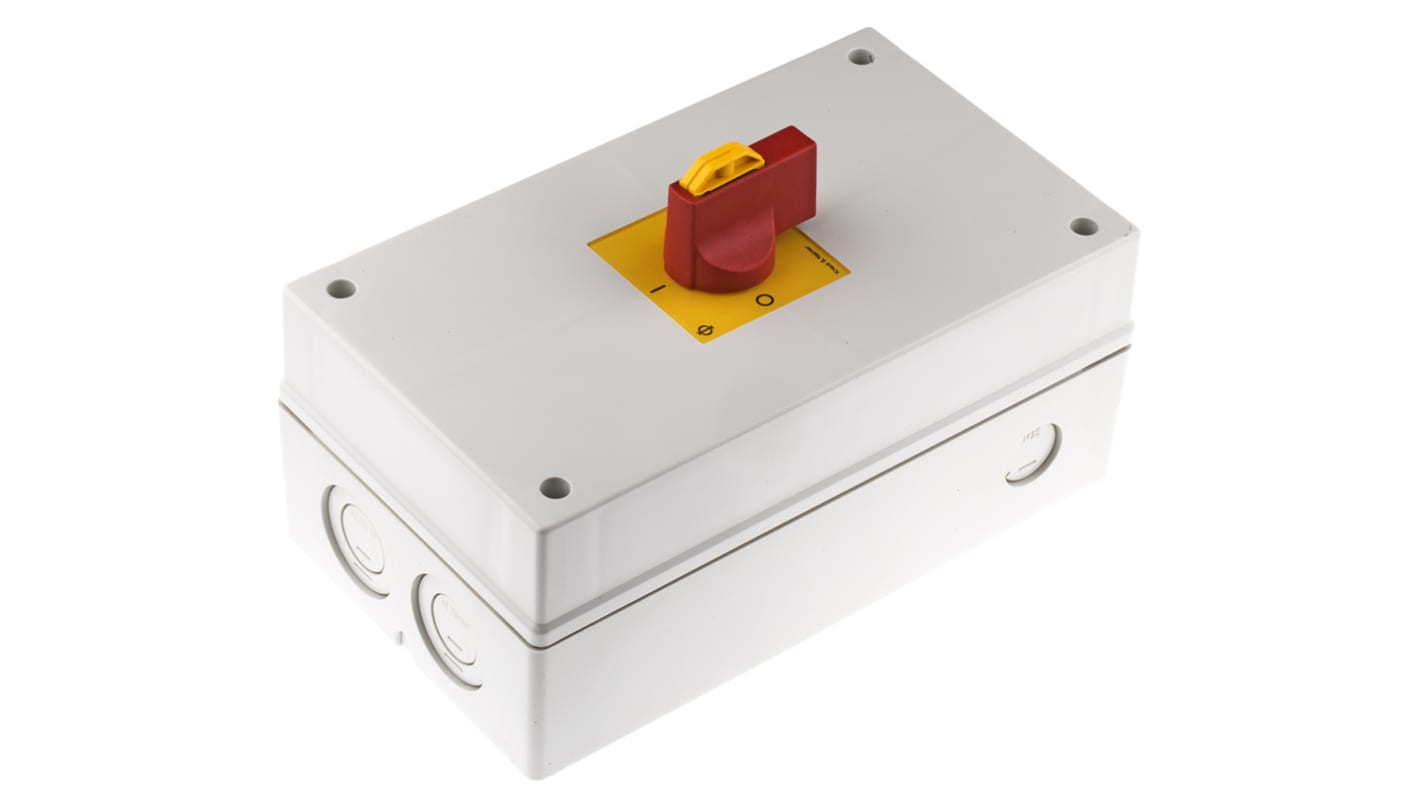

Polycarbonate Enclosed Switch-Disconnector
High impact polycarbonate enclosures to IP65
Lockable with up to four padlocks in the OFF position
Versions available with N/O early break auxiliary contacts
Earth terminal provided, neutral terminal not included
Aux. contact not feasible in 3 pole units
160A unit fitted with terminal lugs for ease of wiring
Nominal switching voltage 690V
Lockable with up to four padlocks in the OFF position
Versions available with N/O early break auxiliary contacts
Earth terminal provided, neutral terminal not included
Aux. contact not feasible in 3 pole units
160A unit fitted with terminal lugs for ease of wiring
Nominal switching voltage 690V
Note
Stated motor rating, Util. Cat. AC23A/AC3 is for a 3 phase 380/440V supply.
Standards
EN 60947, VDE 0660, EN 60204
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 6P |
| Maximum Current | 63A |
| IP Rating | IP65 |
| Power Rating | 22kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Accepts Padlocks | Yes |
| Auxiliary Contacts Available | Yes |
| Length | 250mm |
| Width | 145mm |
| Depth | 145mm |
| Terminal Type | Wire Lead |
| Maximum Operating Temperature | +55°C |
