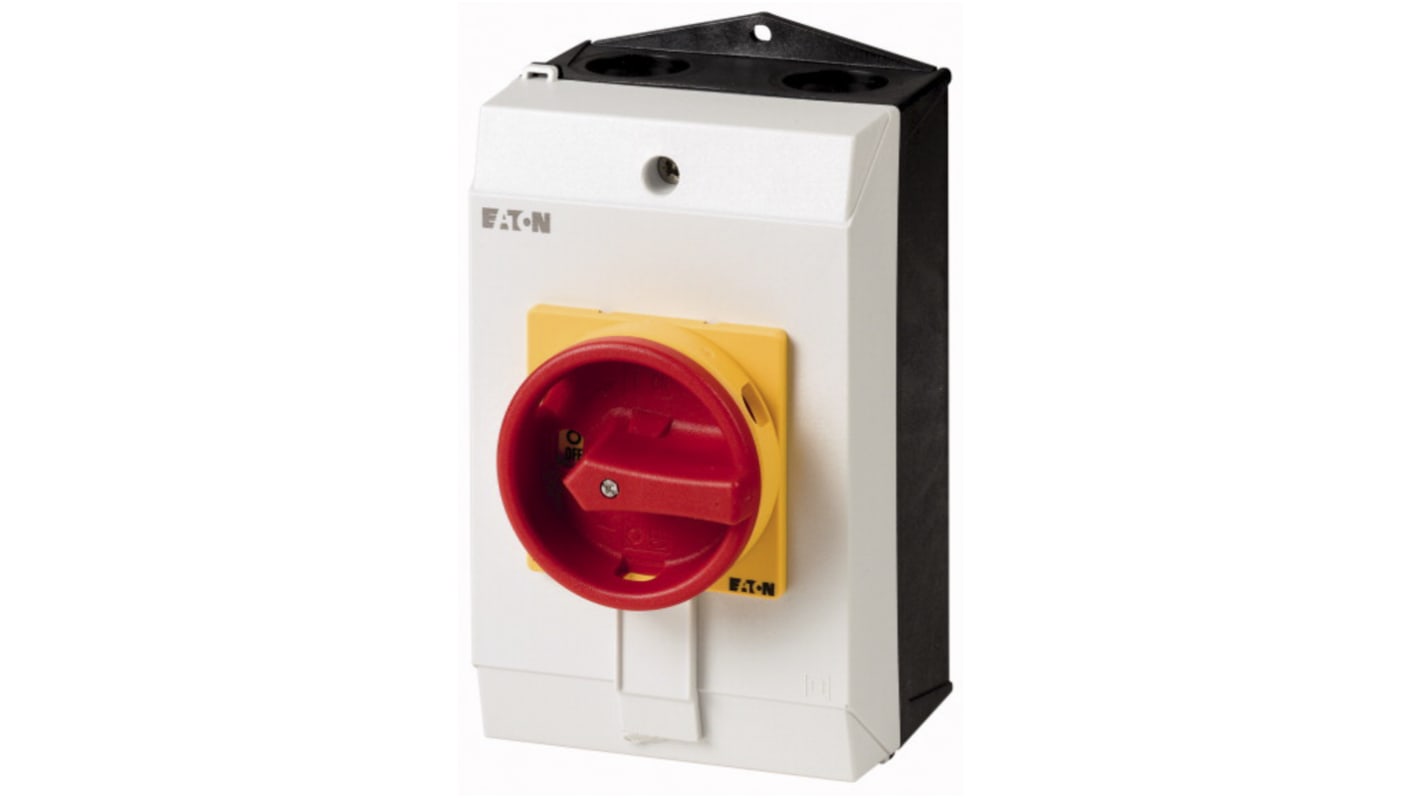

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 25A, 13 kW

RS Stock No.:: 180-9306
Mfr. Part No.:: 207308 P1-25/I2-SI
Brand:: Eaton

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 25A, 13 kW

Subtotal (1 unit)*

£71.21

(exc. VAT)

£85.45

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£71.21

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 180-9306
Mfr. Part No.:: 207308 P1-25/I2-SI
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Surface Mount
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Red
	Series	P1-25
	Switching Current	25A
	Auxiliary Contacts Available	Yes
	Terminal Type	Screw
	Switching DC Voltage	60V dc
	Switching AC Voltage	690V ac
	Switching Power	13kW
	Minimum Operating Temperature	-25°C
	Padlock Compatibility	Yes
	Maximum Operating Temperature	40°C
	Length	100mm
	Depth	160mm
	Hazardous Area Certification	NO
	Width	115mm
	Standards/Approvals	CSA, IEC, RoHS, UL, VDE

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Surface Mount
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Red
	Series P1-25
	Switching Current 25A
	Auxiliary Contacts Available Yes
	Terminal Type Screw
	Switching DC Voltage 60V dc
	Switching AC Voltage 690V ac
	Switching Power 13kW
	Minimum Operating Temperature -25°C
	Padlock Compatibility Yes
	Maximum Operating Temperature 40°C
	Length 100mm
	Depth 160mm
	Hazardous Area Certification NO
	Width 115mm
	Standards/Approvals CSA, IEC, RoHS, UL, VDE

RoHS Status: Exempt

COO (Country of Origin):: GB

Eaton Isolator Switch, 25A Maximum Current, 690V AC Voltage - 207308 P1-25/I2-SI

This isolator switch is an essential component designed for efficient control of electrical circuits. Featuring a 3-pole configuration, it operates effectively at a maximum current rating of 25A. The surface mount design ensures straightforward installation, while its robust IP65 rating guarantees protection against dust and water in harsh environments. This unit operates at a voltage rating of 690V AC and supports a power rating of 11kW, making it suitable for various industrial applications.

Features & Benefits

• Supports a maximum current of 25A for high-performance usage
• Surface mount design simplifies installation and maintenance
• Handles current up to 240A, accommodating high current loads
• Accepts padlocks for enhanced security and safety during operation

Applications

• Used in industrial machinery for reliable circuit control
• Ideal for commercial installations requiring robust electrical isolation
• Utilised in automated systems demanding high-performance switching
• Perfect for situations where water and dust protection is critical

How does the IP65 rating impact its usability in outdoor settings?

The IP65 rating indicates that the switch is protected against dust ingress and water jets from any direction, making it suitable for outdoor installations and harsh conditions.

What is the significance of the handle colour in relation to operation?

The red handle colour allows for easy identification during emergency shutdowns, ensuring quick access in critical situations.

Can this switch be used in environments with extreme temperatures?

Yes, it operates effectively within a temperature range of -25°C to +40°C, making it suitable for a variety of environmental conditions.

Note

Eaton formerly known as Moeller
