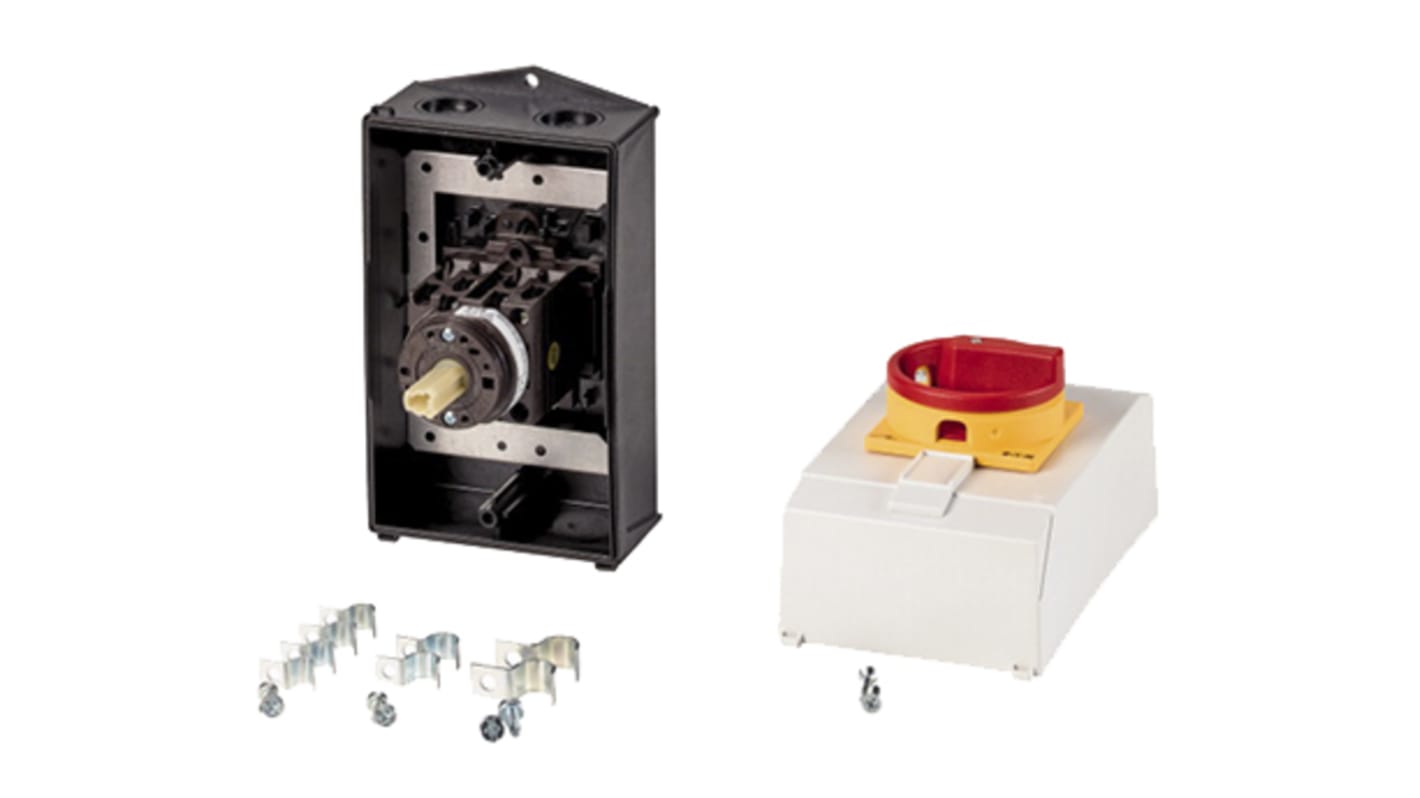

Eaton 3-Pole Surface Isolator Switch -, IP65, 100 A, 5.5 kW

RS Stock No.:: 110-4492
Mfr. Part No.:: 182431 T0-3-15680/I2H/MBS/SVB
Brand:: Eaton

Eaton 3-Pole Surface Isolator Switch -, IP65, 100 A, 5.5 kW

Subtotal (1 unit)*

£64.81

(exc. VAT)

£77.77

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

3 unit(s) shipping from 30 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£64.81

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 110-4492
Mfr. Part No.:: 182431 T0-3-15680/I2H/MBS/SVB
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Surface
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Yellow, Red
	Auxiliary Contacts Available	Yes
	Switching Current	100 A
	Terminal Type	Screw
	Series	T0-3
	Padlock Compatibility	No
	Switching DC Voltage	60 V dc
	Minimum Operating Temperature	-20°C
	Switching AC Voltage	230 V ac
	Switching Power	5.5kW
	Maximum Operating Temperature	40°C
	Length	100mm
	Depth	180mm
	Width	136 mm
	Hazardous Area Certification	No
	Standards/Approvals	UL, IEC, CSA

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Surface
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Yellow, Red
	Auxiliary Contacts Available Yes
	Switching Current 100 A
	Terminal Type Screw
	Series T0-3
	Padlock Compatibility No
	Switching DC Voltage 60 V dc
	Minimum Operating Temperature -20°C
	Switching AC Voltage 230 V ac
	Switching Power 5.5kW
	Maximum Operating Temperature 40°C
	Length 100mm
	Depth 180mm
	Width 136 mm
	Hazardous Area Certification No
	Standards/Approvals UL, IEC, CSA

Eaton Emergency Mains Switch Disconnector

This Professional range of Eaton flush or surface mounted changeover, mains, maintenance and repair switches provides a solution for heavy-duty and industrial applications. This type of switches can sometimes be referred to as an emergency mains switch or emergency switch disconnector, this is because of the nature of what it has been designed to do - stop, in the case of an emergency through the pull or twist of a button.

This range of emergency isolator switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These disconnect switches can also be used as safety switches.

All the changeover switches are IP65 rated meaning they offer complete protection against contact (dust-tight) and water jets. They all have a red rotary handle and all the switches are lockable in the OFF position.

Features & Benefits

IP65 Rated

Flush or Surface Mouniting

Red rotary handle

Lockable in the OFF position

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary switch or knife-blade disconnect to isolate and de-energise a circuit. Commonly used in industrial automation and control settings.
