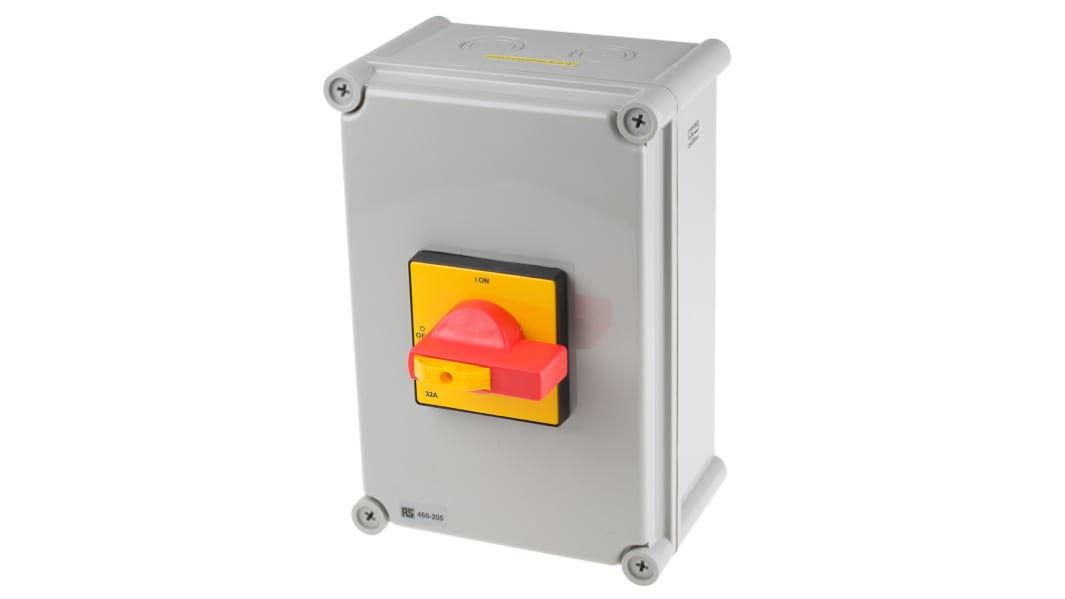

RS PRO 8-Pole DIN Rail Isolator Switch -, IP65, 32A, 11 kW

RS Stock No.:: 466-205
Brand:: RS PRO

RS PRO 8-Pole DIN Rail Isolator Switch -, IP65, 32A, 11 kW

Subtotal (1 unit)*

£82.65

(exc. VAT)

£99.18

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

7 unit(s) ready to ship
Plus 6 unit(s) shipping from 25 August 2026
Plus 15 unit(s) shipping from 13 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£82.65

*price indicative

RS Stock No.:: 466-205
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Isolator Switch
	Number of Poles	8
	Mount Type	DIN Rail
	IP Rating	IP65
	Handle Colour	Red
	Auxiliary Contacts Available	No
	Terminal Type	Wire
	Switching Current	32A
	Series	LB
	Switching AC Voltage	690V ac
	Padlock Compatibility	Yes
	Switching Power	11kW
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	80°C
	Standards/Approvals	EN60947, RoHS
	Width	190mm
	Depth	130mm
	Length	280mm
	Hazardous Area Certification	NO

	Select all
	Brand RS PRO
	Product Type Isolator Switch
	Number of Poles 8
	Mount Type DIN Rail
	IP Rating IP65
	Handle Colour Red
	Auxiliary Contacts Available No
	Terminal Type Wire
	Switching Current 32A
	Series LB
	Switching AC Voltage 690V ac
	Padlock Compatibility Yes
	Switching Power 11kW
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 80°C
	Standards/Approvals EN60947, RoHS
	Width 190mm
	Depth 130mm
	Length 280mm
	Hazardous Area Certification NO

RS PRO Boxed Isolators

Boxed isolator switch disconnector from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. The RS PRO range comes in 3, 4 and 6 pole versions and has a power output available up to 90 kW.

Features and Benefits

• Easy installation

• Compact and reliable

• Finger protection

• Wiping contacts

• IP65 product rating (protection from total dust ingress)

• Padlockable handles

• Excellent switching and high short circuit capacity

• Flame retardant material

• Maximum voltage 750V

Applications

• Non-inductive or slightly inductive loads, resistance fumaces

• Squirrel - cage motors: starting, switching off motors during running

• Control of AC electromagnetic loads

• Switching of resistive loads, including moderate overloads

• Switching of motor loads or other highly inductive loads

• Switching of mixed resistive and inductive loads

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

EN60947
