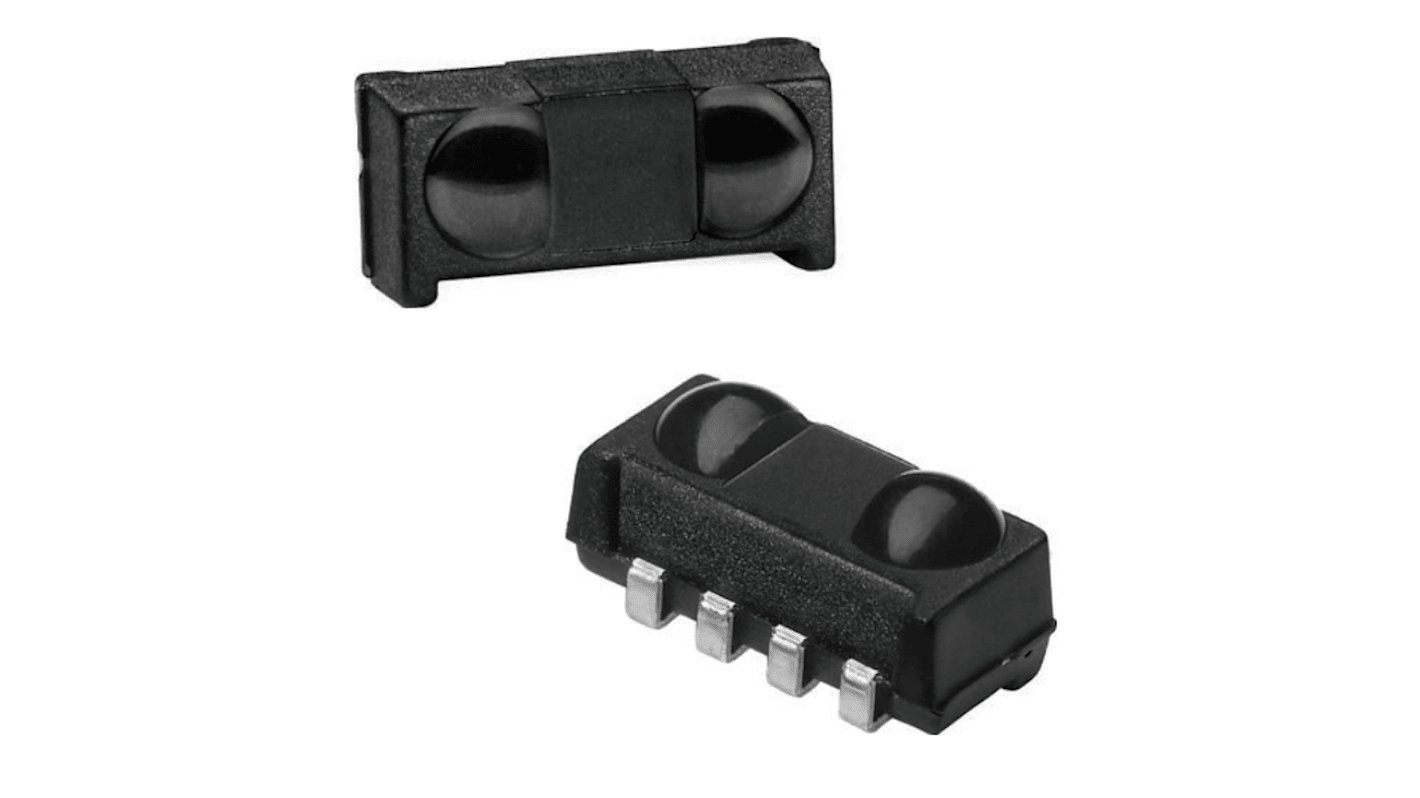

Vishay TSMP95100XVTR, 38 kHz IR Receiver ±50°, 10 m Range -0.3 V 6 V
- RS Stock No.:
- 228-055
- Mfr. Part No.:
- TSMP95100XVTR
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tape of 5 units)*
£7.76
(exc. VAT)
£9.31
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2,300 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.552 | £7.76 |
| 50 - 95 | £1.476 | £7.38 |
| 100 - 495 | £1.366 | £6.83 |
| 500 - 995 | £1.258 | £6.29 |
| 1000 + | £1.208 | £6.04 |
*price indicative
- RS Stock No.:
- 228-055
- Mfr. Part No.:
- TSMP95100XVTR
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 10m | |
| Angle of Half Transmission Distance | ±50° | |
| Maximum Supply Voltage | 6V | |
| Minimum Supply Voltage | -0.3V | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 10m | ||
Angle of Half Transmission Distance ±50° | ||
Maximum Supply Voltage 6V | ||
Minimum Supply Voltage -0.3V | ||
- COO (Country of Origin):
- PH
The Vishay IR Receiver Module is designed for use in infrared remote control systems. It features a PIN diode and preamplifier assembled on a lead frame, with an epoxy package that includes an integrated IR filter to enhance signal clarity. The module provides a modulated output signal, carrier out which can be used for repeater applications and code learning, enabling the amplification and processing of IR signals for a variety of remote control functionalities.
High sensitivity and wide receiving angle
Improved shielding against electrical field disturbance
AGC to suppress ambient noise
