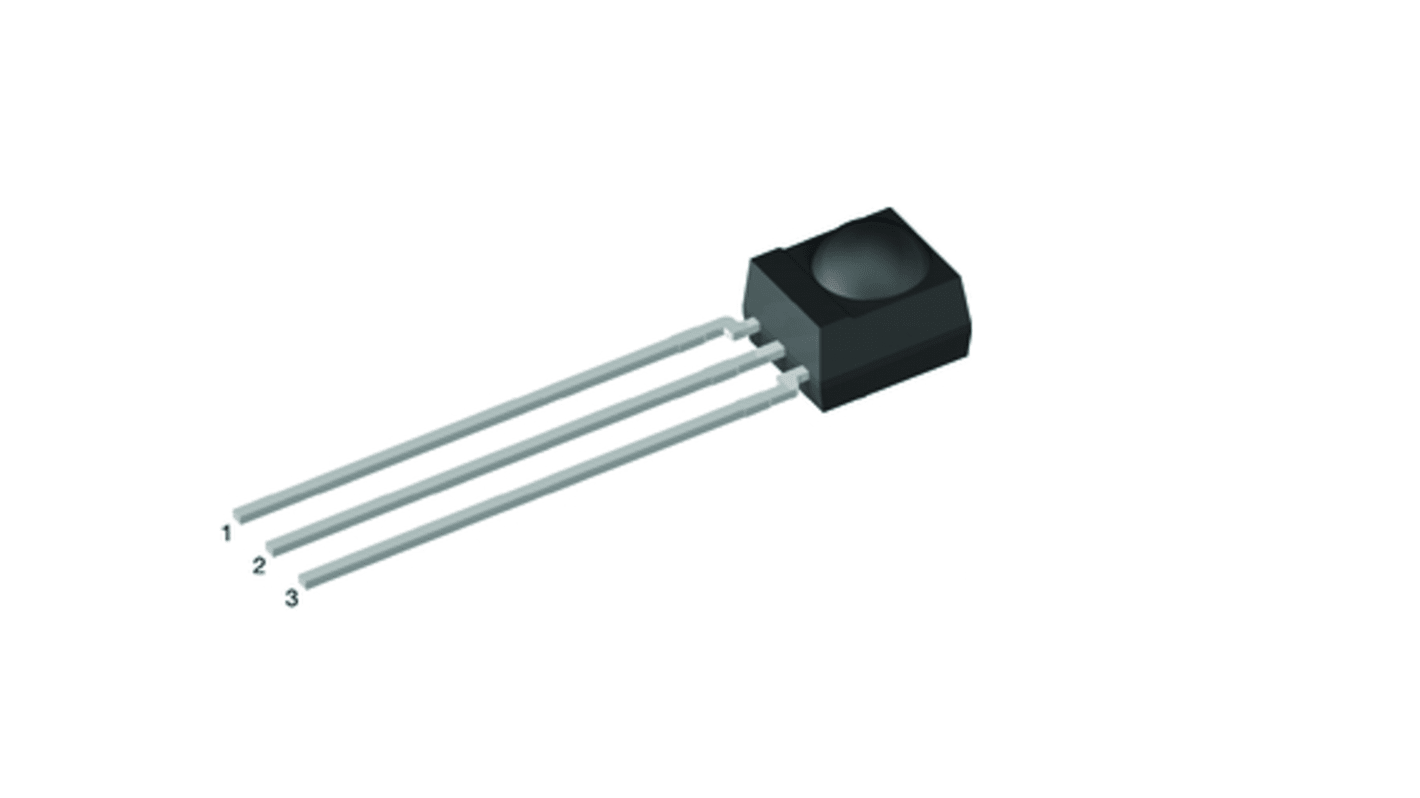

Vishay, 38 kHz IR Receiver ±45°, 45 m Range -0.3 V 6V, Surface 6.95 mm Mold 6 mm 3-Pin 5.6mm
- RS Stock No.:
- 257-6897
- Mfr. Part No.:
- TSOP34338
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tube of 90 units)*
£49.14
(exc. VAT)
£58.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,260 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 90 - 90 | £0.546 | £49.14 |
| 180 - 450 | £0.368 | £33.12 |
| 540 - 990 | £0.359 | £32.31 |
| 1080 - 2070 | £0.35 | £31.50 |
| 2160 + | £0.341 | £30.69 |
*price indicative
- RS Stock No.:
- 257-6897
- Mfr. Part No.:
- TSOP34338
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Receiver | |
| Carrier Frequency | 38kHz | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | ±45° | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | Mold | |
| Height | 6.95mm | |
| Length | 6mm | |
| Maximum Supply Voltage | 6V | |
| Standards/Approvals | GADSL, REACH, RoHS, Halogen Free, IEC 62474 | |
| Width | 5.6mm | |
| Minimum Supply Voltage | -0.3V | |
| Supply Current | 3mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Receiver | ||
Carrier Frequency 38kHz | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance ±45° | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Package Type Mold | ||
Height 6.95mm | ||
Length 6mm | ||
Maximum Supply Voltage 6V | ||
Standards/Approvals GADSL, REACH, RoHS, Halogen Free, IEC 62474 | ||
Width 5.6mm | ||
Minimum Supply Voltage -0.3V | ||
Supply Current 3mA | ||
Automotive Standard No | ||
The Vishay IR Sensor IC is miniaturized receivers for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding.
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Improved shielding against EMI
Supply voltage: 2.5 V to 5.5 V
Improved immunity against ambient light
