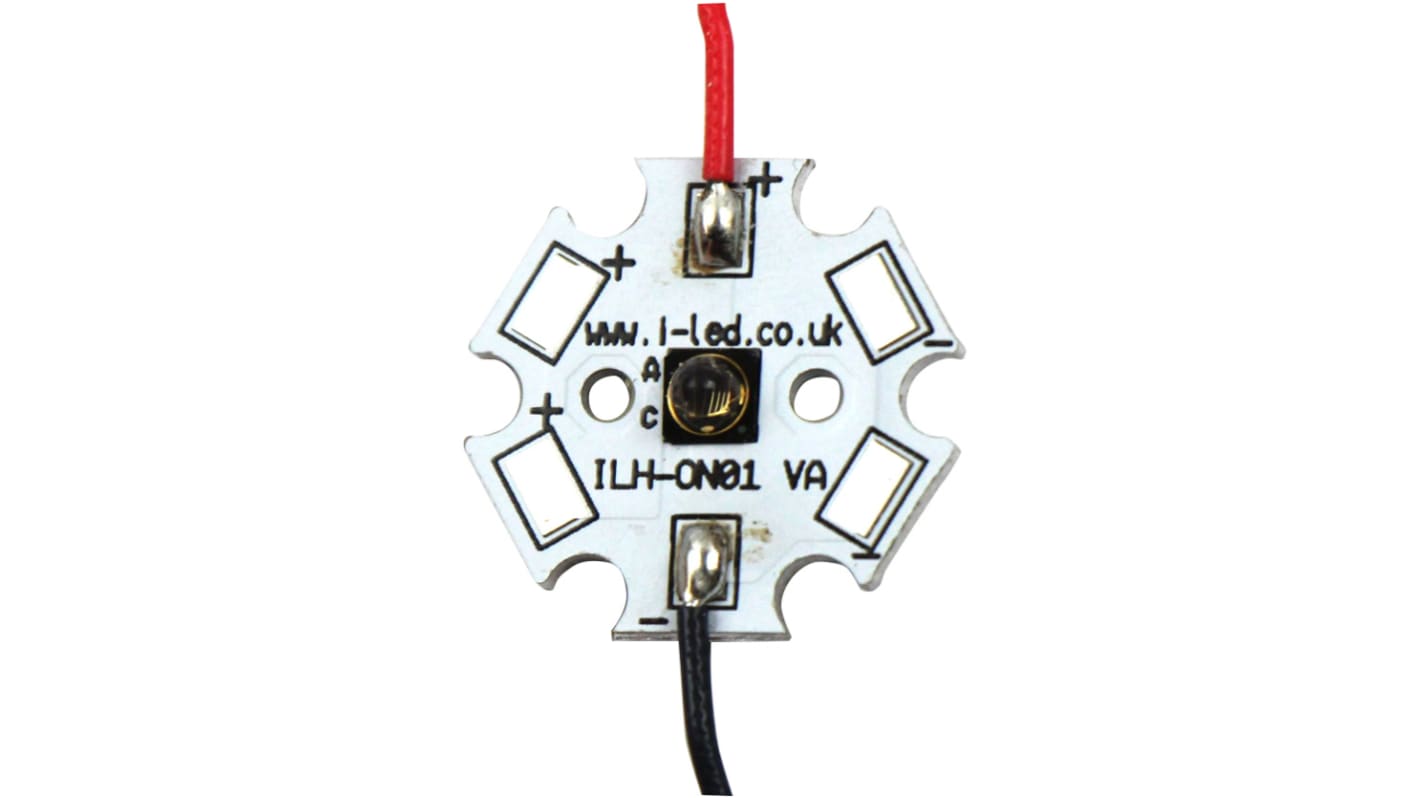

ILH-7MC1-85NC-SC201-WIR200. ILS, ILH-xMX1-xxxx-SC201-WIR200 855nm IR LED, SMD package
- RS Stock No.:
- 209-7965
- Mfr. Part No.:
- ILH-7MC1-85NC-SC201-WIR200.
- Brand:
- Intelligent LED Solutions
Available to back order for despatch 16/08/2024
Price Each
£8.90
(exc. VAT)
£10.68
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £8.90 |
| 5 - 9 | £8.42 |
| 10 - 24 | £8.08 |
| 25 - 49 | £7.87 |
| 50 + | £7.68 |
- RS Stock No.:
- 209-7965
- Mfr. Part No.:
- ILH-7MC1-85NC-SC201-WIR200.
- Brand:
- Intelligent LED Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The ILS has a Stanley high power IR LED. Stanley 7 / 8M LEDs can be driven up to 1500mA.and the 5 / 6M LEDs can be driven up to 1000mA while Stanleys latest power chip technology remains efficient even at the highest drive currents.
Stanley 6M and 8M IR 1 LED PowerStars have a 120 degree silicone resin lens
Stanley 5M and 7M IR 1 LED PowerStars have a 60 degree silicone resin lens
Up to 100,000 Hour lifetime to 70% of original brightness
Stanley 5M and 7M IR 1 LED PowerStars have a 60 degree silicone resin lens
Up to 100,000 Hour lifetime to 70% of original brightness
Specifications
Attribute | Value |
|---|---|
| Peak Wavelength | 855nm |
| Radiant Intensity | 530mW/sr |
| Mounting Type | Surface Mount |
| Series | ILH-xMX1-xxxx-SC201-WIR200 |
