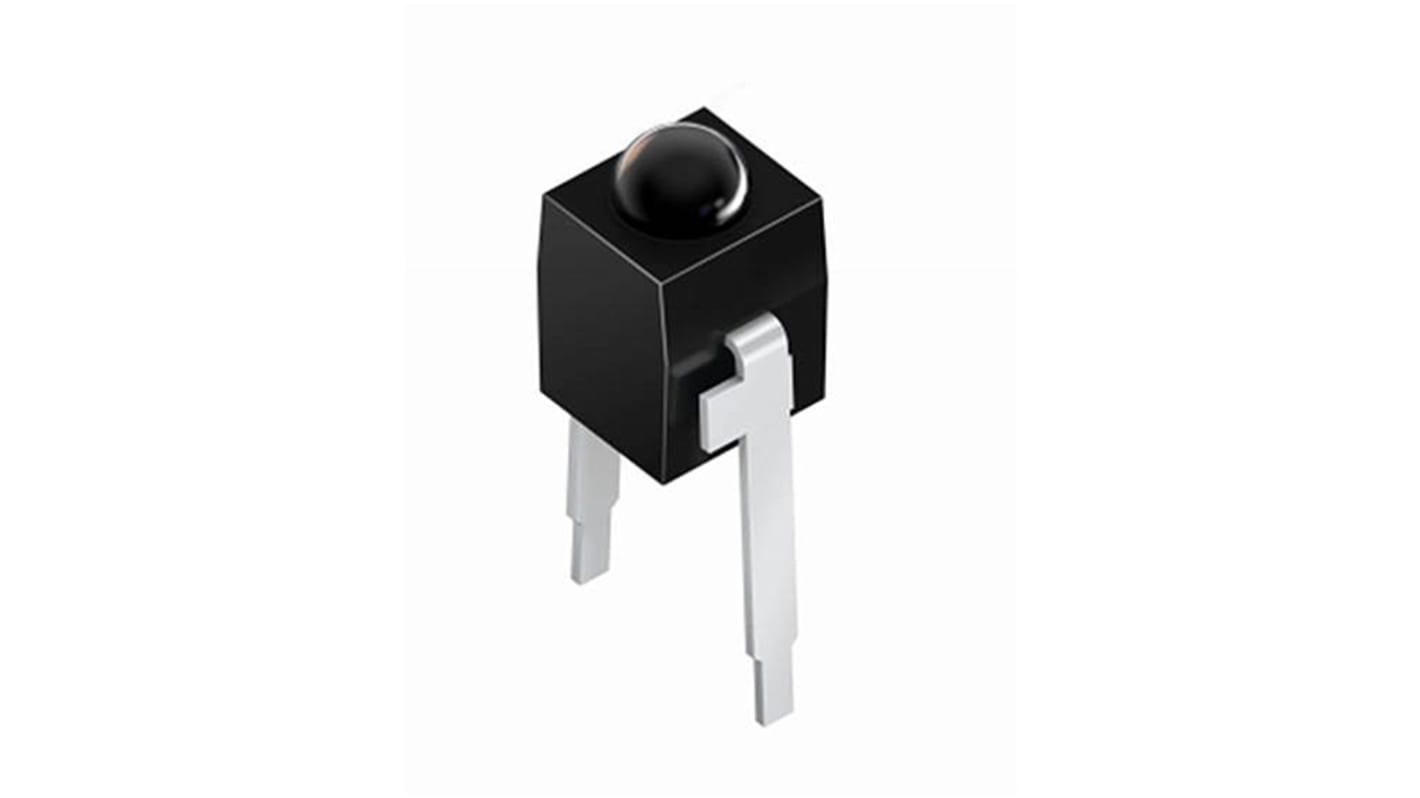

SFH 4941 Osram Opto, 950nm IR LED, Miniature Through Hole package
- RS Stock No.:
- 168-5574
- Mfr. Part No.:
- SFH 4941
- Brand:
- OSRAM Opto Semiconductors
Discontinued product
- RS Stock No.:
- 168-5574
- Mfr. Part No.:
- SFH 4941
- Brand:
- OSRAM Opto Semiconductors
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
OSRAM SFH 494x Infrared Emitter Arrays
The SFH 494x family, from OSRAM Opto Semiconductors, are infrared (IR) emitter arrays with a wavelength of 940nm. These leadframe arrays are available with between 2 and 10 IR emitters per array. The SFH 494x devices offer short switching times within a miniature package. Their package size is equivalent to the BPX 80 series.
Suitable applications for the SFH 494x family include:
- Miniature photointerrupters
- Barcode reader
- Industrial electronics
- Control and drive circuits
- Sensor technology
- Speed controller
- Miniature photointerrupters
- Barcode reader
- Industrial electronics
- Control and drive circuits
- Sensor technology
- Speed controller
Infrared (IR) Light Emitters, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Peak Wavelength | 950nm |
| Package Type | Miniature |
| Radiant Flux | 30mW |
| Radiant Intensity | 50mW/sr |
| Mounting Type | Through Hole |
| Angle of Half Intensity | ±10° |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Dimensions | 2 x 2.2 x 3.45mm |
| Lens Shape | Round |
| LED Material | GaAs |
| Maximum Supply Voltage | 3.6V |
