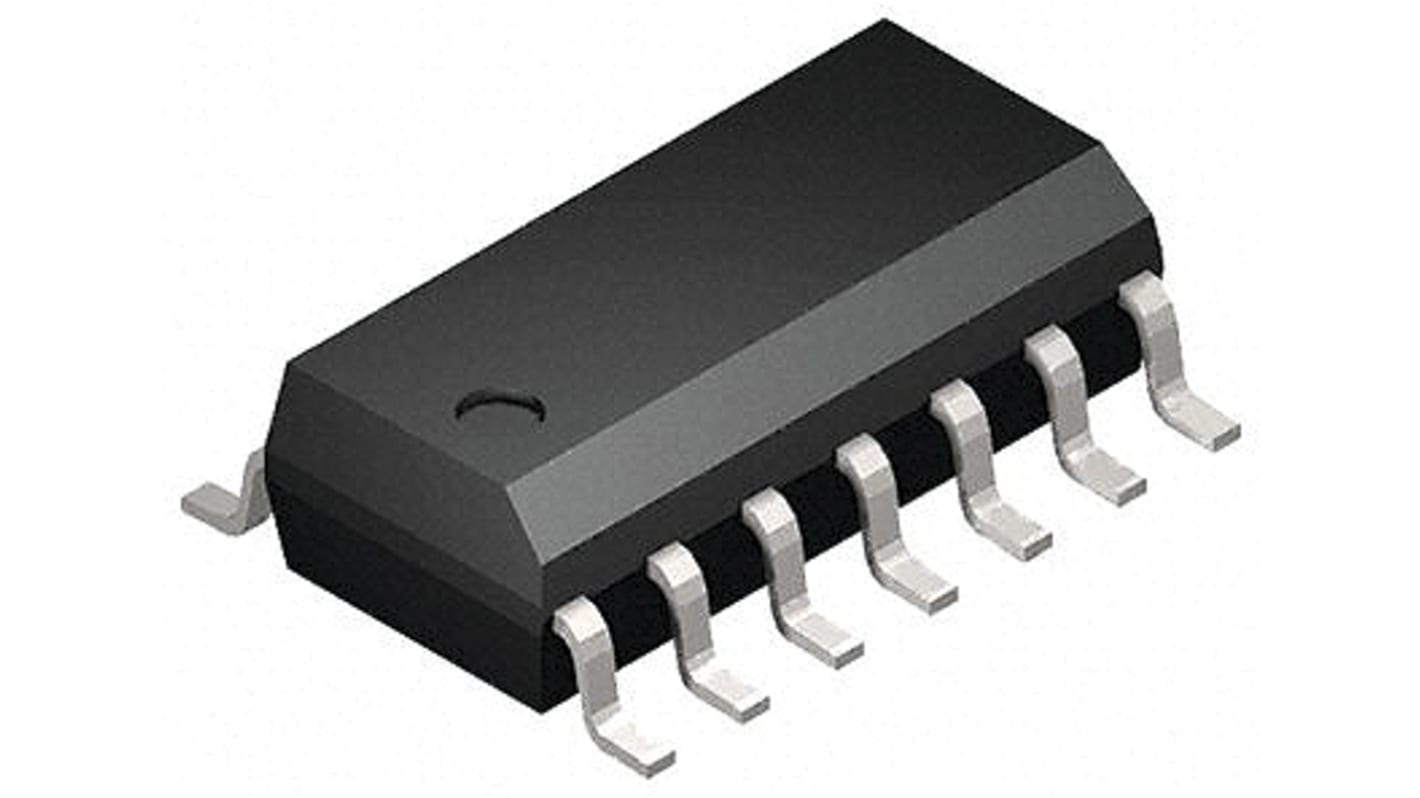

Toshiba 74HC14D Hex Schmitt Trigger CMOS Inverter, 14-Pin SOIC
- RS Stock No.:
- 171-3567
- Mfr. Part No.:
- 74HC14D
- Brand:
- Toshiba
Bulk discount available
Subtotal (1 pack of 50 units)*
£14.05
(exc. VAT)
£16.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
- Plus 400 unit(s) ready to ship from another location
- Plus 16,750 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 100 | £0.281 | £14.05 |
| 150 - 450 | £0.252 | £12.60 |
| 500 - 950 | £0.245 | £12.25 |
| 1000 + | £0.239 | £11.95 |
*price indicative
- RS Stock No.:
- 171-3567
- Mfr. Part No.:
- 74HC14D
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | LSTTL | |
| Number of Elements per Chip | 6 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 190 ns @ 50 pF | |
| Maximum High Level Output Current | -5.2mA | |
| Maximum Low Level Output Current | 5.2mA | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Logic Family | 74HC | |
| Dimensions | 8.95 x 3.9 x 1.38mm | |
| Maximum Operating Supply Voltage | 6 V | |
| Height | 1.38mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 3.9mm | |
| Minimum Operating Supply Voltage | 2 V | |
| Length | 8.95mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Output Type LSTTL | ||
Number of Elements per Chip 6 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 190 ns @ 50 pF | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Low Level Output Current 5.2mA | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 14 | ||
Logic Family 74HC | ||
Dimensions 8.95 x 3.9 x 1.38mm | ||
Maximum Operating Supply Voltage 6 V | ||
Height 1.38mm | ||
Minimum Operating Temperature -40 °C | ||
Width 3.9mm | ||
Minimum Operating Supply Voltage 2 V | ||
Length 8.95mm | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +125 °C | ||
- COO (Country of Origin):
- JP
The 74HC14D is a high speed CMOS SCHMITT INVERTER fabricated with silicon gate C2MOS te It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low po dissipation. Pin configuration and function are the same as the 74HC04D but the inputs have 25% VCC and with its schmitt trigger function, the 74HC14D can be used as a line receivers which will receive signals. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
High speed: tpd = 11 ns (typ.) at VCC = 5 V
Low power dissipation: ICC = 1.0 μA (max) at Ta = 25
High noise immunity: VH = 1.1 V (typ.) at VCC = 4.5 V
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V
Low power dissipation: ICC = 1.0 μA (max) at Ta = 25
High noise immunity: VH = 1.1 V (typ.) at VCC = 4.5 V
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V
