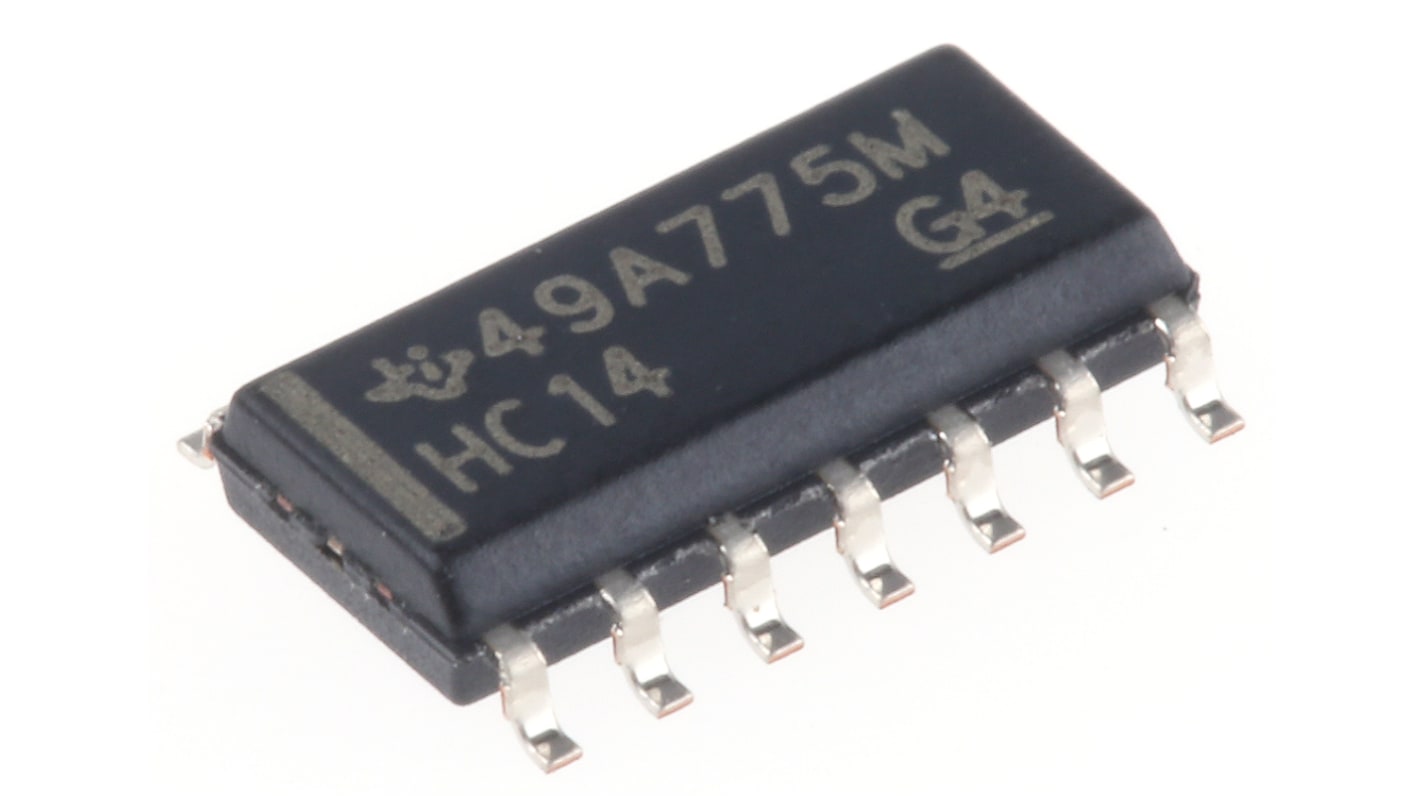

Texas Instruments SN74HC14D Hex Schmitt Trigger CMOS Inverter, 14-Pin SOIC

View all Inverters ICs
Bulk discount available

Subtotal (1 pack of 10 units)*

£5.60

(exc. VAT)

£6.70

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 170 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
10 - 40£0.56£5.60
50 - 90£0.544£5.44
100 - 240£0.531£5.31
250 - 490£0.516£5.16
500 +£0.504£5.04

*price indicative

Packaging Options:
RS Stock No.:
663-1938
Mfr. Part No.:
SN74HC14D
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Function

Inverter

Input Type

Schmitt Trigger

Number of Elements per Chip

6

Schmitt Trigger Input

Yes

Maximum Propagation Delay Time @ Maximum CL

125 ns @ 2 V, 21 ns @ 6 V, 25 ns @ 4.5 V

Maximum High Level Output Current

-5.2mA

Maximum Low Level Output Current

5.2mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Logic Family

HC

Dimensions

8.65 x 3.91 x 1.58mm

Height

1.58mm

Maximum Operating Supply Voltage

6 V

Priced to Clear

Yes

Maximum Operating Temperature

+85 °C

Width

3.91mm

Minimum Operating Temperature

-40 °C

Length

8.65mm

Propagation Delay Test Condition

50pF

Minimum Operating Supply Voltage

2 V

74HC Family Inverters & Buffers, Texas Instruments


Texas Instruments range of Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS


74HC Family
