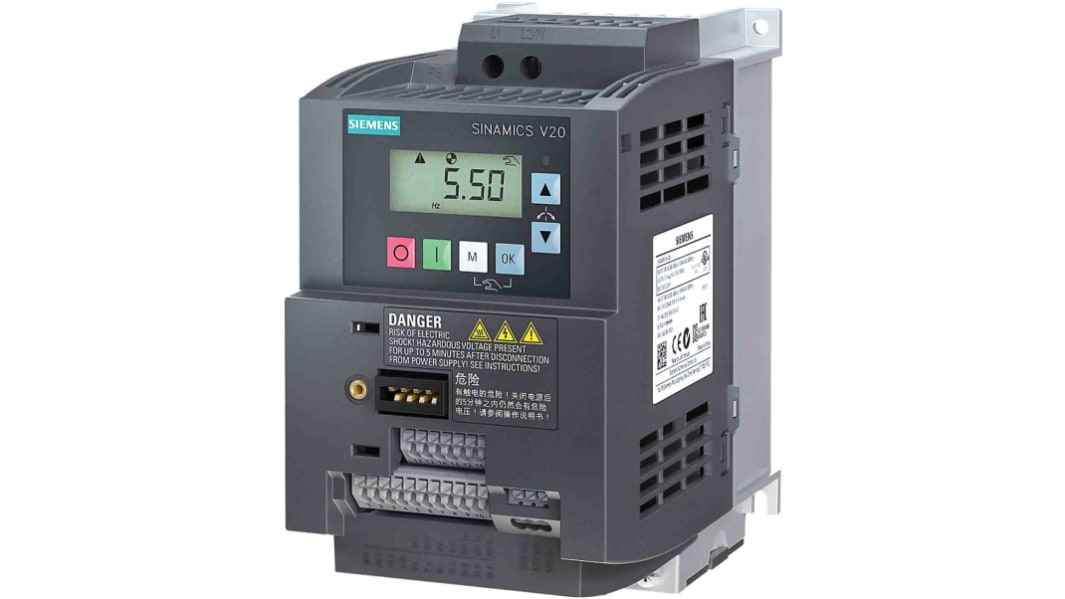

Siemens Inverter Drive, 1.5 kW, 1 Phase, SINAMICS V20 Series 240V ac 7.5 A

RS Stock No.:: 217-6639
Distrelec Article No.:: 302-64-239
Mfr. Part No.:: 6SL3210-5BB21-5BV1
Brand:: Siemens

Siemens Inverter Drive, 1.5 kW, 1 Phase, SINAMICS V20 Series 240V ac 7.5 A

Subtotal (1 unit)*

£223.50

(exc. VAT)

£268.20

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

18 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£223.50

*price indicative

RS Stock No.:: 217-6639
Distrelec Article No.:: 302-64-239
Mfr. Part No.:: 6SL3210-5BB21-5BV1
Brand:: Siemens

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Product Type	Inverter Drive
	Power Rating	1.5kW
	Number of Phases	1
	Maximum Output Current	7.5A
	Series	SINAMICS V20
	Mount Type	Panel
	IP Rating	IP20
	Overall Length	196mm
	Minimum Supply Voltage	200V
	Output Frequency	550Hz
	Maximum Supply Voltage	240V ac
	Drive Type	Vector Control
	Compatible Motor Type	AC Motor
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	Low Voltage Directive 2006/95/EC, CE, C-Tick (RCM), cUL, EMC 2004/108/EC, UL
	Overall Width	73mm
	Overall Depth	165mm

	Select all
	Brand Siemens
	Product Type Inverter Drive
	Power Rating 1.5kW
	Number of Phases 1
	Maximum Output Current 7.5A
	Series SINAMICS V20
	Mount Type Panel
	IP Rating IP20
	Overall Length 196mm
	Minimum Supply Voltage 200V
	Output Frequency 550Hz
	Maximum Supply Voltage 240V ac
	Drive Type Vector Control
	Compatible Motor Type AC Motor
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 40°C
	Standards/Approvals Low Voltage Directive 2006/95/EC, CE, C-Tick (RCM), cUL, EMC 2004/108/EC, UL
	Overall Width 73mm
	Overall Depth 165mm

Datasheet - 6SL3210-5BB21-5BV1

COO (Country of Origin):: CN

Siemens V20 Series Converter, 240V AC Supply Voltage, 7.8A Current Rating - 6SL3210-5BB21-5BV1

This converter is engineered for efficient control of AC motors, providing dependable performance in industrial applications. As part of the Siemens V20 series, it ensures smooth operation for single-phase electrical systems, optimising functionality and energy usage across various environments. Its user-friendly design caters to the specific needs of users in automation and mechanical industries.

Features & Benefits

• Operates effectively on a 240V AC supply voltage

• Supports communication protocols Modbus RTU and USS

• Delivers solid performance with a 1.5 kW power rating

• Facilitates an output frequency range of up to 550 Hz

• Integrated filter enhances energy efficiency

• IP20 rated for protection against solid foreign objects

Applications

• Compatible with AC motors in diverse industrial settings

• Ideal for automation systems requiring precise control

• Suitable for applications needing rapid response frequencies

• Appropriate for environments that necessitate external cooling

What is the operating temperature range?

The device operates effectively between -10°C and 60°C.

Can it handle voltage variations on the supply side?

Yes, it is rated for line voltage fluctuations of 200V to 240V.

How can it be connect digital inputs for control?

The device accommodates up to four standard digital inputs for custom control setups.

What type of overload capability does it support?

It supports low overload at 110% of the rated output current and high overload at 150%.

Is external cooling necessary?

Yes, external cooling is required to maintain optimal operational temperatures.
