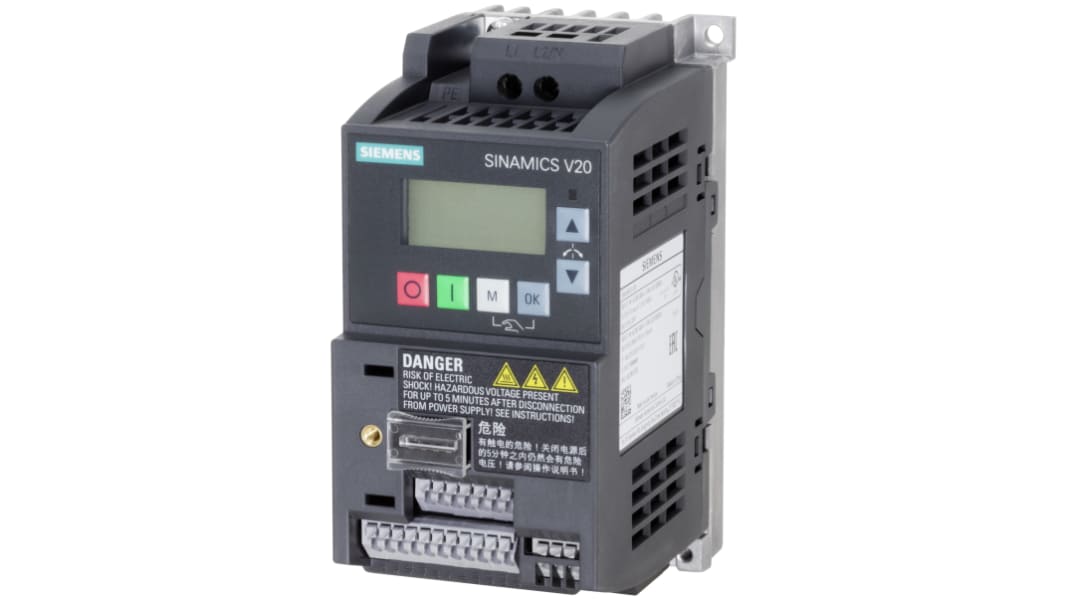

Siemens Inverter Drive, 0.12 kW, 1 Phase, 240 V ac, 900 mA, SINAMICS V20 Series
- RS Stock No.:
- 136-8117
- Mfr. Part No.:
- 6SL3210-5BB11-2UV1
- Brand:
- Siemens
Subtotal (1 unit)*
£119.77
(exc. VAT)
£143.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £119.77 |
*price indicative
- RS Stock No.:
- 136-8117
- Mfr. Part No.:
- 6SL3210-5BB11-2UV1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Power Rating | 0.12 kW | |
Phase | 1 | |
Supply Voltage | 240 V ac | |
Current Rating | 900 mA | |
For Use With | AC Motors | |
Series | SINAMICS V20 | |
Field Bus Communication Type | USS/Modbus RTU | |
IP Rating | IP20 | |
Output Frequency | 0 → 550Hz | |
STO | No | |
Mounting Type | Side by Side Mount, Wall Mount | |
Overall Length | 142mm | |
Overall Depth | 107.8mm | |
Standards Met | CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, KCC | |
Overall Width | 68mm | |
Select all | ||
---|---|---|
Brand Siemens | ||
Power Rating 0.12 kW | ||
Phase 1 | ||
Supply Voltage 240 V ac | ||
Current Rating 900 mA | ||
For Use With AC Motors | ||
Series SINAMICS V20 | ||
Field Bus Communication Type USS/Modbus RTU | ||
IP Rating IP20 | ||
Output Frequency 0 → 550Hz | ||
STO No | ||
Mounting Type Side by Side Mount, Wall Mount | ||
Overall Length 142mm | ||
Overall Depth 107.8mm | ||
Standards Met CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, KCC | ||
Overall Width 68mm | ||
- COO (Country of Origin):
- CN
Siemens SINAMICS V20 Series Inverter Drive, 0.12 kW Power Rating, 240V AC Supply Voltage - 6SL3210-5BB11-2UV1
This inverter drive is designed for use with AC motors, offering a power rating of 0.12 kW. The compact housing measures 68mm in width, 142mm in height, and 107.8mm in depth, making it suitable for installations with limited space. With an operational frequency range of 0 to 550 Hz, this versatile device is ideal for a variety of applications within automation and industrial processes.
Features & Benefits
• Single-phase operation allows easy integration into existing systems
• High efficiency of 0.98 reduces energy consumption
• Modbus RTU communication enables seamless device integration
• Overload capacity supports demanding operational requirements
• IP20 rating offers protection suitable for indoor environments
• Compact design simplifies wall mounting or side-by-side installation
• High efficiency of 0.98 reduces energy consumption
• Modbus RTU communication enables seamless device integration
• Overload capacity supports demanding operational requirements
• IP20 rating offers protection suitable for indoor environments
• Compact design simplifies wall mounting or side-by-side installation
Applications
• Used for controlling AC motors in various industrial settings
• Ideal for requiring precise speed and torque control
• Can be employed in HVAC systems for energy-efficient operation
• Useful in pump and conveyor that demand variable frequency drives
• Ideal for requiring precise speed and torque control
• Can be employed in HVAC systems for energy-efficient operation
• Useful in pump and conveyor that demand variable frequency drives
What are the cooling requirements for optimal operation?
Convection cooling is used for this unit, making it essential to keep the installation area free from obstructions to ensure proper airflow.
How does this drive handle different ambient conditions?
It operates effectively across a temperature range of -10 to 60 °C, making it suitable for various environmental conditions. However, derating may be necessary at temperatures above 40 °C.
What type of inputs and outputs can be connected?
The inverter provides four standard digital inputs and two analogue inputs, allowing for extensive control and monitoring capabilities tailored to specific applications.
