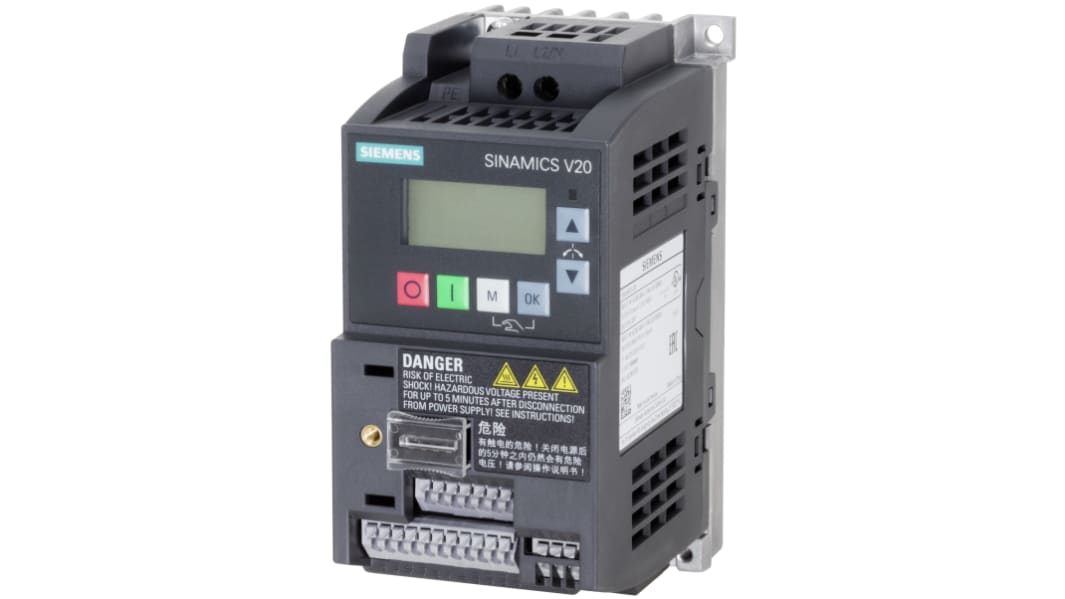

Siemens Inverter Drive, 0.25 kW, 1 Phase, SINAMICS V20 Series 240 V 1.7 A
- RS Stock No.:
- 136-8118
- Distrelec Article No.:
- 300-82-052
- Mfr. Part No.:
- 6SL3210-5BB12-5BV1
- Brand:
- Siemens
Subtotal (1 unit)*
£142.06
(exc. VAT)
£170.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £142.06 |
*price indicative
- RS Stock No.:
- 136-8118
- Distrelec Article No.:
- 300-82-052
- Mfr. Part No.:
- 6SL3210-5BB12-5BV1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Power Rating | 0.25kW | |
| Product Type | Inverter Drive | |
| Number of Phases | 1 | |
| Maximum Output Current | 1.7A | |
| Series | SINAMICS V20 | |
| Mount Type | Wall, Side | |
| Overall Length | 68mm | |
| IP Rating | IP20 | |
| Minimum Supply Voltage | 200V | |
| Output Frequency | 550Hz | |
| Maximum Supply Voltage | 240V | |
| Compatible Motor Type | AC Motor | |
| Drive Type | AC | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 107.8mm | |
| Standards/Approvals | CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, KCC | |
| Overall Depth | 142mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Power Rating 0.25kW | ||
Product Type Inverter Drive | ||
Number of Phases 1 | ||
Maximum Output Current 1.7A | ||
Series SINAMICS V20 | ||
Mount Type Wall, Side | ||
Overall Length 68mm | ||
IP Rating IP20 | ||
Minimum Supply Voltage 200V | ||
Output Frequency 550Hz | ||
Maximum Supply Voltage 240V | ||
Compatible Motor Type AC Motor | ||
Drive Type AC | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 107.8mm | ||
Standards/Approvals CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, KCC | ||
Overall Depth 142mm | ||
- COO (Country of Origin):
- CN
Siemens Inverter Drive, Wall Mounting, 0 to 550Hz Output Frequency - SINAMICS V20 Series - 6SL3210-5BB12-5BV1
Get the upper hand over machine control using this inverter drive from Siemens. It uses PWM to provide a regulated voltage to your motor so your equipment can safely power through tasks. As it has a broad output frequency range between 0 and 550Hz, it's able to keep up with your low-frequency and high-frequency operations. There are integrated vents to allow for convection cooling, meaning the unit won't break a sweat in demanding conditions. It's a smart option for use with AC motors in applications such as industrial pumps and fans.
Features & Benefits
• Easy-to-use push buttons for convenient configuration
• Wide operating temperature range between -10°C and +60°C for use in harsh industrial environments
• Integrated USS and Modbus RTU interfaces for easy communication with control system
• Front-facing display for ease of use and monitoring
• IP20 rating means it's finger-safe and protected against objects larger than 12mm
How do I mount this inverter drive?
This inverter drive is designed for wall mounting or side-by-side mounting, so it's a breeze to incorporate into your existing setup.
