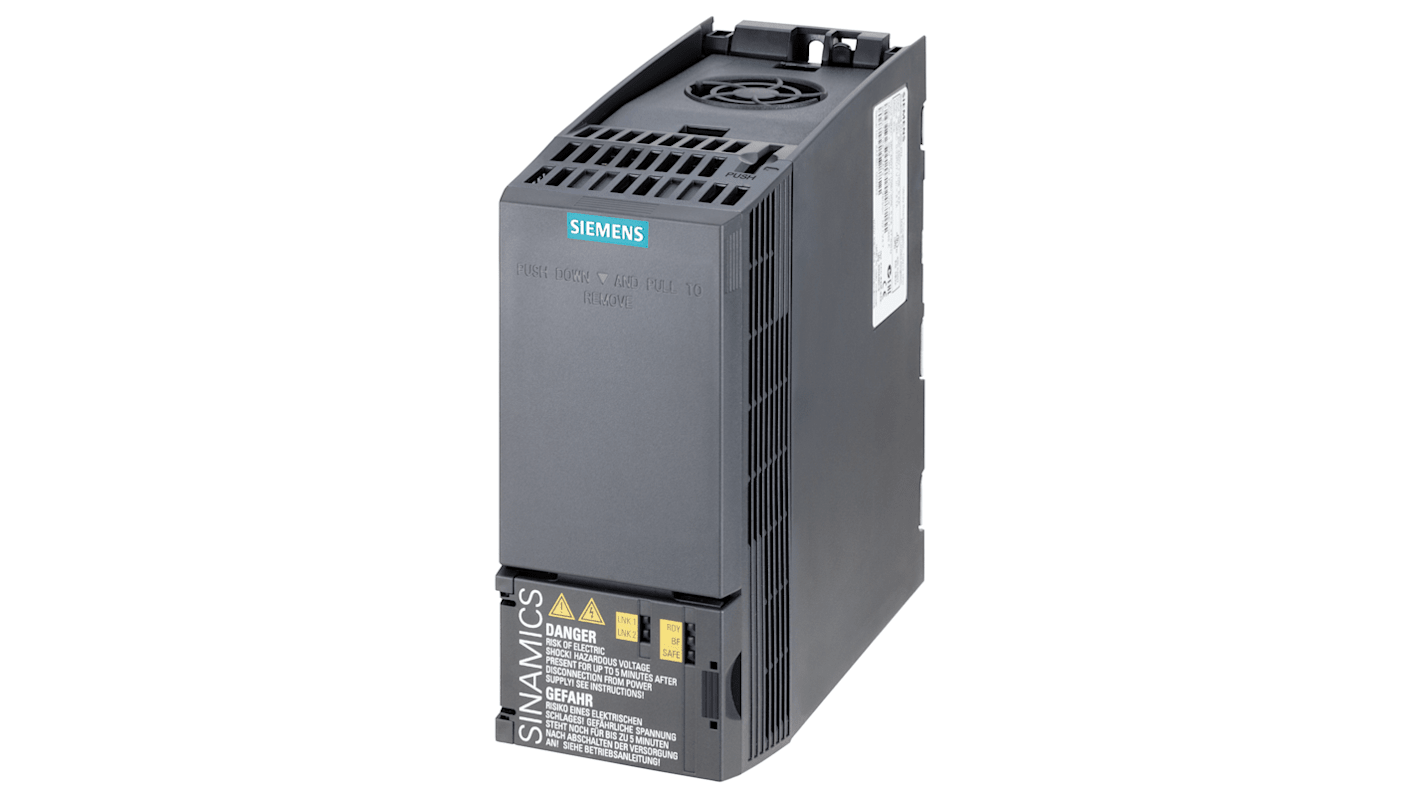

Siemens Inverter Drive, 1.5 kW, 3 Phase, 400 V ac, 6 A, 7.4 A, SINAMICS G120C Series

View all Inverter Drives

Subtotal (1 unit)*

£703.73

(exc. VAT)

£844.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 2 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£703.73

*price indicative

RS Stock No.:
136-8044
Mfr. Part No.:
6SL3210-1KE15-8AP2
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Power Rating

1.5 kW

Phase

3

Supply Voltage

400 V ac

Current Rating

6 A, 7.4 A

For Use With

AC Motors

Series

SINAMICS G120C

Field Bus Communication Type

Profibus

IP Rating

IP20

Output Frequency

0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz

STO

Yes

Drive Type

Vector Control

Overall Length

73mm

Special Features

Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control

Overall Width

155mm

Overall Depth

173mm

Standards Met

CE, C-Tick (RCM), cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL

COO (Country of Origin):
GB

Siemens Inverter Drive, Sensorless Vector Control, 76.4W Power Loss - SINAMICS Series - 6SL3210-1KE15-8AP2


Looking for a compact speed-control solution for your industrial AC motor? Get this inverter drive from Siemens up and running. With dimensions of 173 (H) x 73 (W) x 155mm (D), it fits neatly into compact cabinets. Thanks to a sensorless vector control mechanism, the drive varies the frequency, amplitude and phase of the supply AC voltage to your motor. This lets it track the position of the rotor using an encoder instead of sensors, so cuts back on wiring reins in power consumption. Use this unit to control centrifugal pumps and drilling equipment in the production and mining industries.

Features & Benefits


• Comes with an integrated fan for reliable cooling
• IP20 rating means it's finger-safe and protected from anything larger than 12mm
• Low power loss of 76.4W for energy efficiency and increased productivity
• Integrated USB port for easy communication with a PC
• Power rating of 1.5kW for medium-duty applications

What's the temperature tolerance of this drive?


This drive performs at its best in a temperature range between -10°C and +40°C. Stick to the upper limit to prevent downtime caused by overheating.
