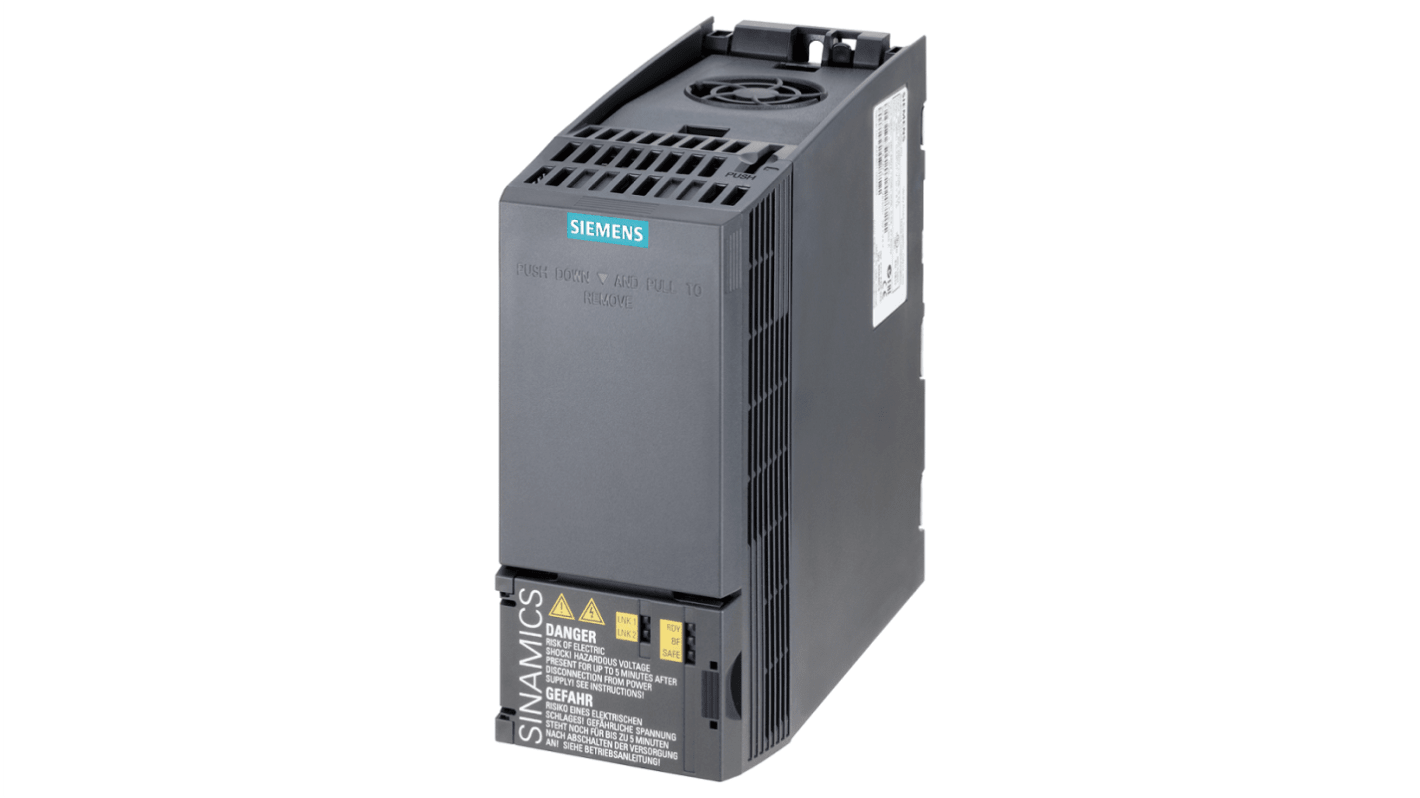

Siemens Inverter Drive, 1.5 kW, 3 Phase, 400 V ac, 4.5 A, 5.5 A, SINAMICS G120C Series

View all Inverter Drives

Subtotal (1 unit)*

£573.18

(exc. VAT)

£687.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£573.18

*price indicative

RS Stock No.:
136-8041
Mfr. Part No.:
6SL3210-1KE14-3UP2
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Power Rating

1.5 kW

Phase

3

Supply Voltage

400 V ac

Current Rating

4.5 A, 5.5 A

For Use With

AC Motors

Series

SINAMICS G120C

Field Bus Communication Type

Profibus

IP Rating

IP20

Output Frequency

0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz

STO

Yes

Drive Type

Vector Control

Overall Length

73mm

Overall Depth

173mm

Standards Met

CE, C-Tick (RCM), cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL

Overall Width

155mm

Special Features

Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control

COO (Country of Origin):
GB

Siemens SINAMICS G120C Series Inverter Drive, 1.5 kW, 400V AC - 6SL3210-1KE14-3UP2


This inverter drive, designed for industrial applications, offers effective control of AC motors with a power rating of 1.5 kW. Utilising vector control technology inherently improves energy efficiency while maintaining optimal performance levels. With a compact design measuring 73mm in width, 155mm in depth, and 173mm in height, it accommodates various automation requirements, ensuring a reliable solution for demanding environments.

Features & Benefits


• Delivers high performance with a maximum output frequency of 550 Hz
• Integrates Profibus communication for seamless connectivity
• Features sensorless vector control enhancing operational efficiency
• Supports overload capability for reliable performance under varying loads
• Maintains an IP20 rating for protection against dust and moisture
• High efficiency ratings at 0.97 ensuring energy conservation

Applications


• Employed for controlling AC motors in manufacturing equipment
• Used with automated production lines demanding precise speed control
• Suitable for requiring variable frequency adjustments
• Ideal for systems where digital inputs and outputs are essential

What are the cooling requirements for this inverter drive?


The drive requires air cooling using an integrated fan and has a cooling air requirement of 0.005 m³/s.

Can this inverter accommodate various ambient temperatures?


It operates efficiently within a range of -10 °C to 40 °C, ensuring functionality in diverse environments.

What are the standard input and output specifications?


The device operates with a 3-phase input of 400V AC and has a rated current of 4.5A or 5.5A depending on load conditions.

How does this inverter handle overload conditions?


It possesses specific overload capabilities, allowing operation at 150% of the base load for short durations, providing flexibility in demanding applications.
