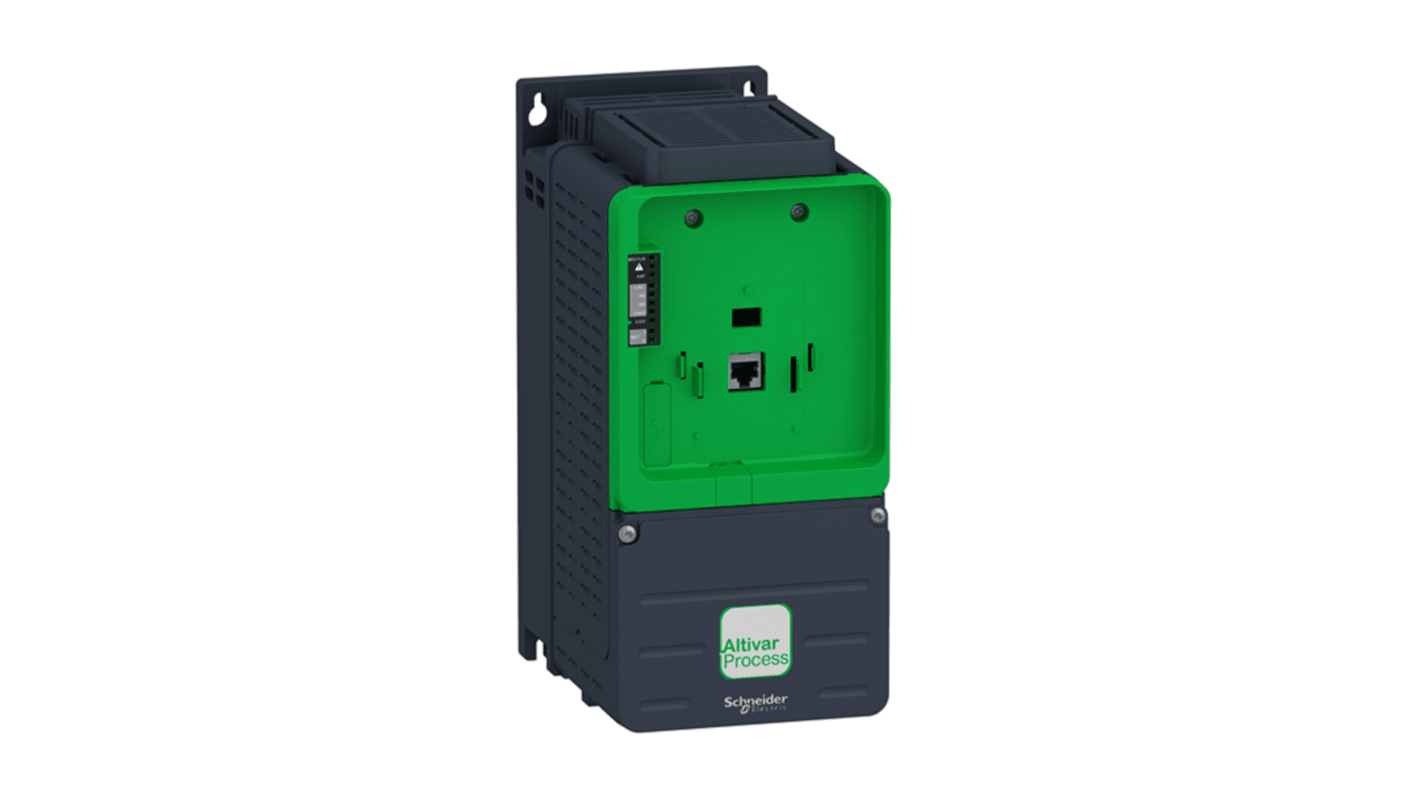

Schneider Electric Inverter Drive, 2.2 kW, 3 Phase, Altivar Series 480V 3.8 A
- RS Stock No.:
- 335-124
- Mfr. Part No.:
- ATV930U22N4Z
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£864.39
(exc. VAT)
£1,037.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £864.39 |
*price indicative
- RS Stock No.:
- 335-124
- Mfr. Part No.:
- ATV930U22N4Z
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 2.2kW | |
| Product Type | Inverter Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 3.8A | |
| Series | Altivar | |
| Mount Type | Cabinet | |
| Overall Length | 285mm | |
| IP Rating | IP21 | |
| Output Frequency | 599Hz | |
| Minimum Supply Voltage | 380V | |
| Maximum Supply Voltage | 480V | |
| Compatible Motor Type | Synchronous, Asynchronous Motor | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 130mm | |
| Standards/Approvals | UL 508C, TUV, RoHS, REACH, IEC 61508, IEC 61000-3-12, IEC 60721-3, IEC 13849-1, EN/IEC 61800-5-1, EN/IEC 61800-3, CSA, CE | |
| Overall Depth | 196mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 2.2kW | ||
Product Type Inverter Drive | ||
Number of Phases 3 | ||
Maximum Output Current 3.8A | ||
Series Altivar | ||
Mount Type Cabinet | ||
Overall Length 285mm | ||
IP Rating IP21 | ||
Output Frequency 599Hz | ||
Minimum Supply Voltage 380V | ||
Maximum Supply Voltage 480V | ||
Compatible Motor Type Synchronous, Asynchronous Motor | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 130mm | ||
Standards/Approvals UL 508C, TUV, RoHS, REACH, IEC 61508, IEC 61000-3-12, IEC 60721-3, IEC 13849-1, EN/IEC 61800-5-1, EN/IEC 61800-3, CSA, CE | ||
Overall Depth 196mm | ||
- COO (Country of Origin):
- CN
The Schneider Electric Altivar Process ATV900 variable speed drive can feed 3 phase synchronous and asynchronous power motors. It works at a rated supply voltage from 380Vac to 480Vac. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master or slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance.
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
Asset monitoring and protection
Drift monitoring
