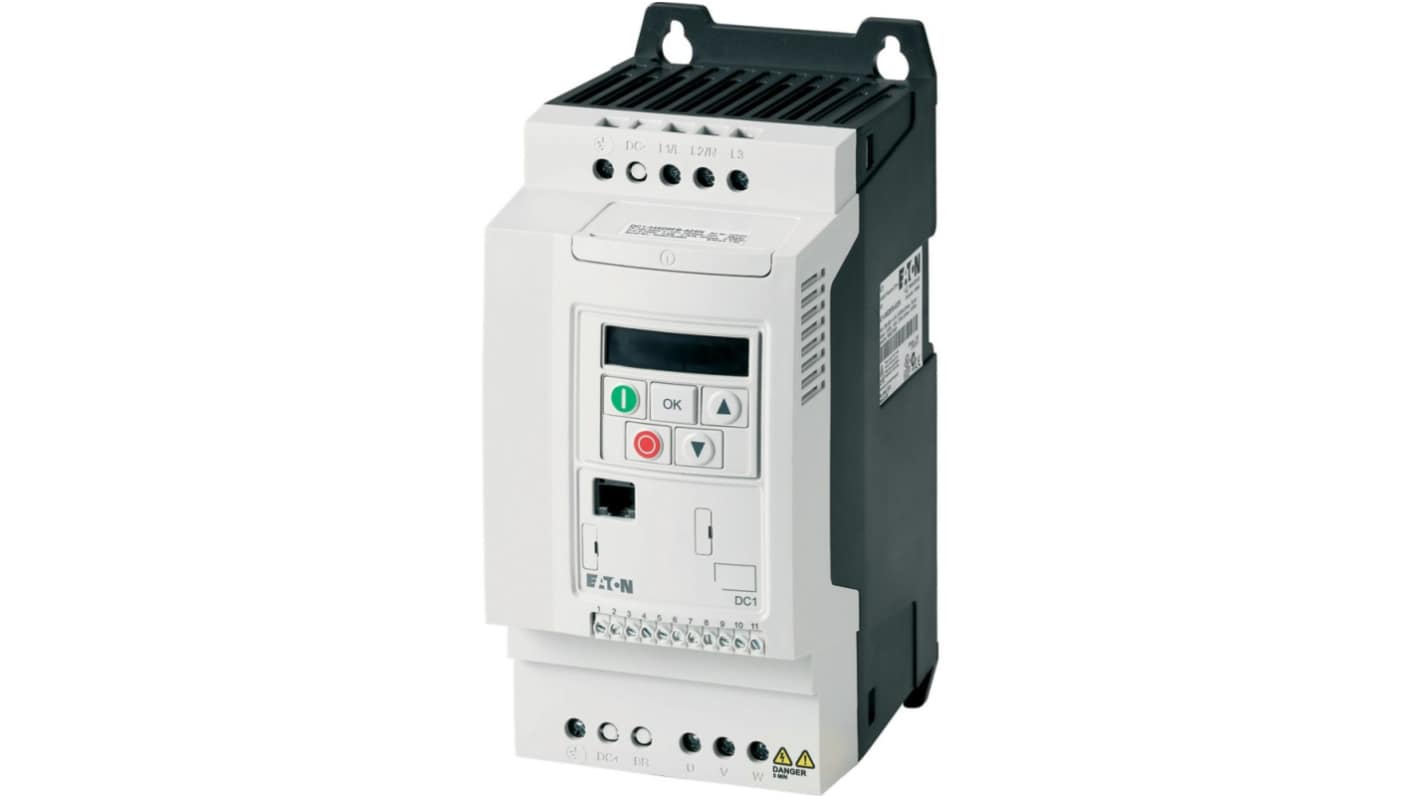

Eaton Inverter Drive, 1 Phase, DC1 Series 230 V ac 10.5 A

View all Inverter Drives

Subtotal (1 unit)*

£438.59

(exc. VAT)

£526.31

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£438.59

*price indicative

Sponsored
EATON DILM Power Contactors
EATON DILM Contactors
Get effective switching control with EATON DILM Contactors—quality you can depend on for powerful, efficient, and versatile performance.
Explore the DILM Contactor Range
RS Stock No.:
246-570
Mfr. Part No.:
185797 DC1-12011NB-A20CE1
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Inverter Drive

Number of Phases

1

Maximum Output Current

10.5A

Series

DC1

Mount Type

Vertical

IP Rating

IP20

Overall Length

152mm

Minimum Supply Voltage

230V ac

Output Frequency

500Hz

Maximum Supply Voltage

230V ac

Minimum Operating Temperature

-10°C

Drive Type

Variable Frequency Drive (VFD)

Compatible Motor Type

PM Motors, BLDC, Synchronous Reluctance Motor

Maximum Operating Temperature

50°C

Standards/Approvals

IEC/EN 61800-5-1, CSA-C22.2 No. 14, EAC, IEC/EN61800-3, UL Report Applies to both US and Canada, RCM, NMMS7, UL File No.: E172143, cUL, UkrSEPRO, CE, UL, UL NMMS, ISO 9001, Specification for general requirements: IEC/EN 61800-2, IEC/EN 61800-3, UL 508C, IEC/EN61800-5

Overall Width

107mm

Overall Depth

152mm

RoHS Status: Exempt

The Eaton Variable Frequency Drive is meticulously designed to enhance performance and energy efficiency in applications requiring precise control of motors. This sophisticated drive operates at 230 V AC and supports single-phase systems, making it an ideal solution for various industrial and commercial settings. With a robust 10.5 A capacity, it offers reliable power for motor control, ensuring smooth operation across a wide frequency range. The IP20/NEMA 0 rated enclosure safeguards the drive against dust and accidental contact, promoting long-term durability. The integration of advanced features, such as Modbus RTU communication and built-in braking chopper, empowers users to optimise their systems for maximum productivity and minimal downtime.

Features an IGBT inverter supporting efficient operation

Offers comprehensive protection against overload and short circuits

Personalised parameterisation available through mobile applications

Easily adaptable to various machine configurations and environments

Minimises operational costs with reduced energy consumption

Extensive certifications validate safety and environmental compliance
