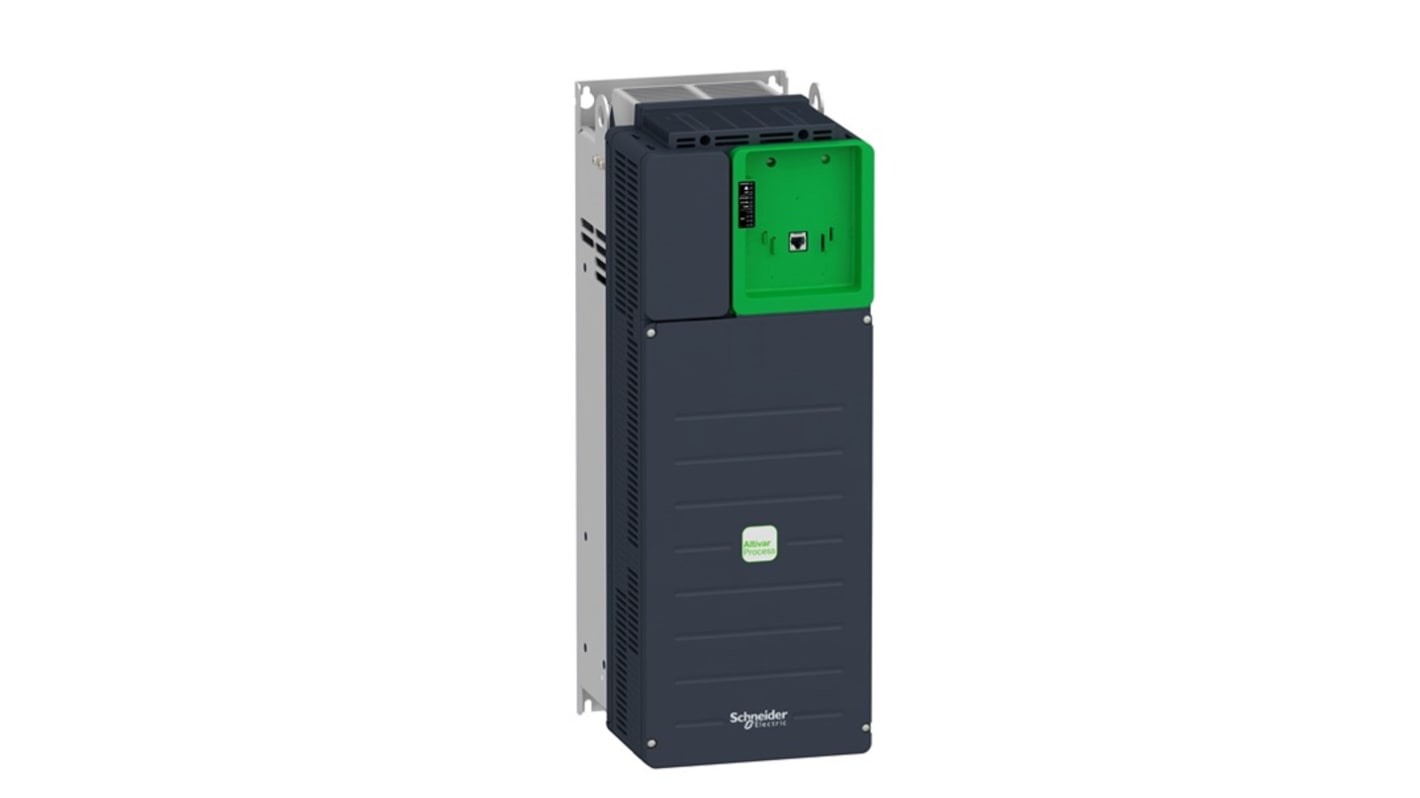

Schneider Electric Inverter Drive, 30 kW, 3 Phase, ATV630D30 Series 480 V 45.9 A
- RS Stock No.:
- 244-915
- Mfr. Part No.:
- ATV630D30N4Z
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£3,411.50
(exc. VAT)
£4,093.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,411.50 |
*price indicative
- RS Stock No.:
- 244-915
- Mfr. Part No.:
- ATV630D30N4Z
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Inverter Drive | |
| Power Rating | 30kW | |
| Number of Phases | 3 | |
| Maximum Output Current | 45.9A | |
| Series | ATV630D30 | |
| Mount Type | Cabinet | |
| Overall Length | 597mm | |
| IP Rating | IP00, IP20 | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 380V | |
| Maximum Supply Voltage | 480V | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 210mm | |
| Standards/Approvals | UL 508C, CE, CSA, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 environment 1 category C2, IEC 61800-5-1, REACH, RoHS | |
| Overall Depth | 262mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Inverter Drive | ||
Power Rating 30kW | ||
Number of Phases 3 | ||
Maximum Output Current 45.9A | ||
Series ATV630D30 | ||
Mount Type Cabinet | ||
Overall Length 597mm | ||
IP Rating IP00, IP20 | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 380V | ||
Maximum Supply Voltage 480V | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 210mm | ||
Standards/Approvals UL 508C, CE, CSA, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 environment 1 category C2, IEC 61800-5-1, REACH, RoHS | ||
Overall Depth 262mm | ||
The Schneider Electric Variable Speed Drive is designed to efficiently power both 3 phase synchronous and asynchronous motors, operating at a rated supply voltage of 380V to 480V AC. It features three built in RJ45 communication ports, including one Ethernet port and two serial ports, ensuring versatile connectivity.
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
Asset monitoring and protection
Drift monitoring
