Robin-Amprobe KMP7036 Insulation Tester, 250 V Min, 1000 V Max CAT III
- RS Stock No.:
- 794-3128
- Mfr. Part No.:
- KMP7036
- Brand:
- Robin-Amprobe
Unavailable
RS will no longer stock this product.
Calibration Options:
Each
£499.67
(exc. VAT)
£599.60
(inc. VAT)
- RS Stock No.:
- 794-3128
- Mfr. Part No.:
- KMP7036
- Brand:
- Robin-Amprobe
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Robin-Amprobe | |
| Model Number | KMP7036 | |
| Product Type | Insulation Tester | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 1000V | |
| Minimum Test Voltage | 250V | |
| Display Type | LCD | |
| Test Current | 1mA | |
| Battery Type | AA | |
| Power Source | Battery | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 35°C | |
| Safety Category Level | CAT III | |
| Safety Category Voltage | 600V | |
| Length | 160mm | |
| Height | 71mm | |
| Width | 101 mm | |
| Standards/Approvals | BS EN 613261, BS EN 610101, BS EN 61557 | |
| Weight | 600g | |
| Select all | ||
|---|---|---|
Brand Robin-Amprobe | ||
Model Number KMP7036 | ||
Product Type Insulation Tester | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 1000V | ||
Minimum Test Voltage 250V | ||
Display Type LCD | ||
Test Current 1mA | ||
Battery Type AA | ||
Power Source Battery | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 35°C | ||
Safety Category Level CAT III | ||
Safety Category Voltage 600V | ||
Length 160mm | ||
Height 71mm | ||
Width 101 mm | ||
Standards/Approvals BS EN 613261, BS EN 610101, BS EN 61557 | ||
Weight 600g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

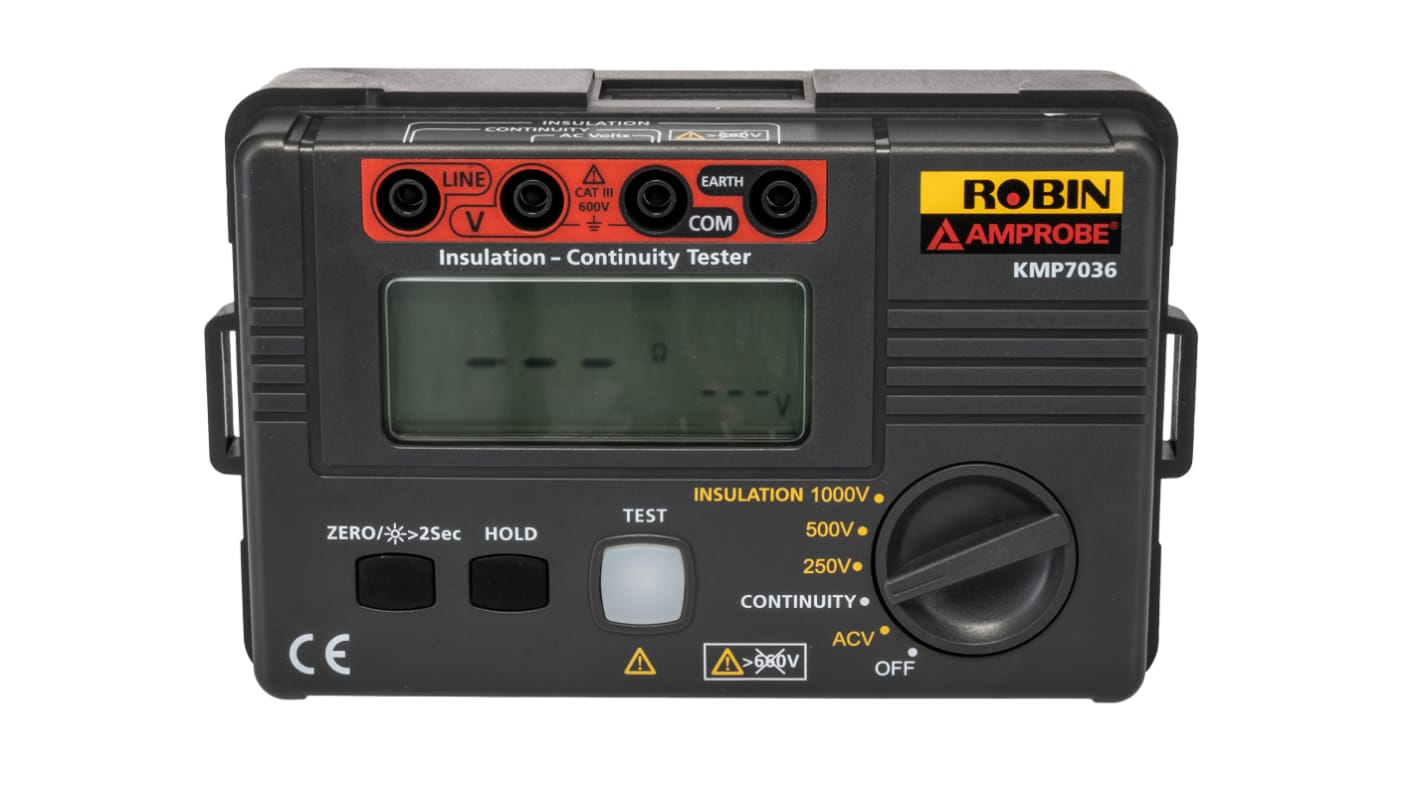

KMP7036 Insulation Tester
The KMP7036 Insulation-Continuity Tester is used for accurately measuring the insulation of electrical equipment, ensuring that electricity has a direct path to flow safely and there is no risk to those around the area. The Isolation Tester can test cables, wires, transformers, electrical motors and other similar devices to evaluate if insulation breakdown has become excessive; if so, steps can be taken to fix the problems long before they become a significant danger.
Tests insulation of wires, cables, transformers and electrical motors
Selectable test voltages 250V, 500V and 1000V
Test button hold to perform the Dielectric Absorption Ratio Test
Continuity test at 200mA short-circuit
Built in voltmeter and red light warning for live circuit indication
Large, backlit display
Automatic discharge of test object after completion of measurement
Data Hold
Test lead resistance zero facility
Low battery indication
Safety CAT III 600V
Supplied with
2 x test leads, 2 x test probes, 2 x alligator clips, 6 x AA batteries, user manual, carry case and strap
