Yokogawa MY600/NB2 Insulation Tester, 50 V Min, 1000 V Max CAT III
- RS Stock No.:
- 663-020
- Mfr. Part No.:
- MY600/NB2
- Brand:
- Yokogawa
Subtotal (1 unit)*
£1,300.00
(exc. VAT)
£1,560.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,300.00 |
*price indicative
- RS Stock No.:
- 663-020
- Mfr. Part No.:
- MY600/NB2
- Brand:
- Yokogawa
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yokogawa | |
| Product Type | Insulation Tester | |
| Model Number | MY600/NB2 | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 1000V | |
| Minimum Test Voltage | 50V | |
| Display Type | Digital | |
| Power Source | Four size AA Batteries | |
| Minimum Operating Temperature | -10°C | |
| Safety Category Level | CAT III | |
| Maximum Operating Temperature | 50°C | |
| Safety Category Voltage | 600V | |
| Width | 156 mm | |
| Length | 97mm | |
| Standards/Approvals | EN61326-2-2 EN61010-1, EN61010-2-30, 10 EN61326-1 ClassB, JIS C 1302:2018 (Planned) EN61557-1, EN61010-031, IEC61010-2-034 | |
| Height | 46mm | |
| Weight | 490g | |
| Select all | ||
|---|---|---|
Brand Yokogawa | ||
Product Type Insulation Tester | ||
Model Number MY600/NB2 | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 1000V | ||
Minimum Test Voltage 50V | ||
Display Type Digital | ||
Power Source Four size AA Batteries | ||
Minimum Operating Temperature -10°C | ||
Safety Category Level CAT III | ||
Maximum Operating Temperature 50°C | ||
Safety Category Voltage 600V | ||
Width 156 mm | ||
Length 97mm | ||
Standards/Approvals EN61326-2-2 EN61010-1, EN61010-2-30, 10 EN61326-1 ClassB, JIS C 1302:2018 (Planned) EN61557-1, EN61010-031, IEC61010-2-034 | ||
Height 46mm | ||
Weight 490g | ||
- COO (Country of Origin):
- JP

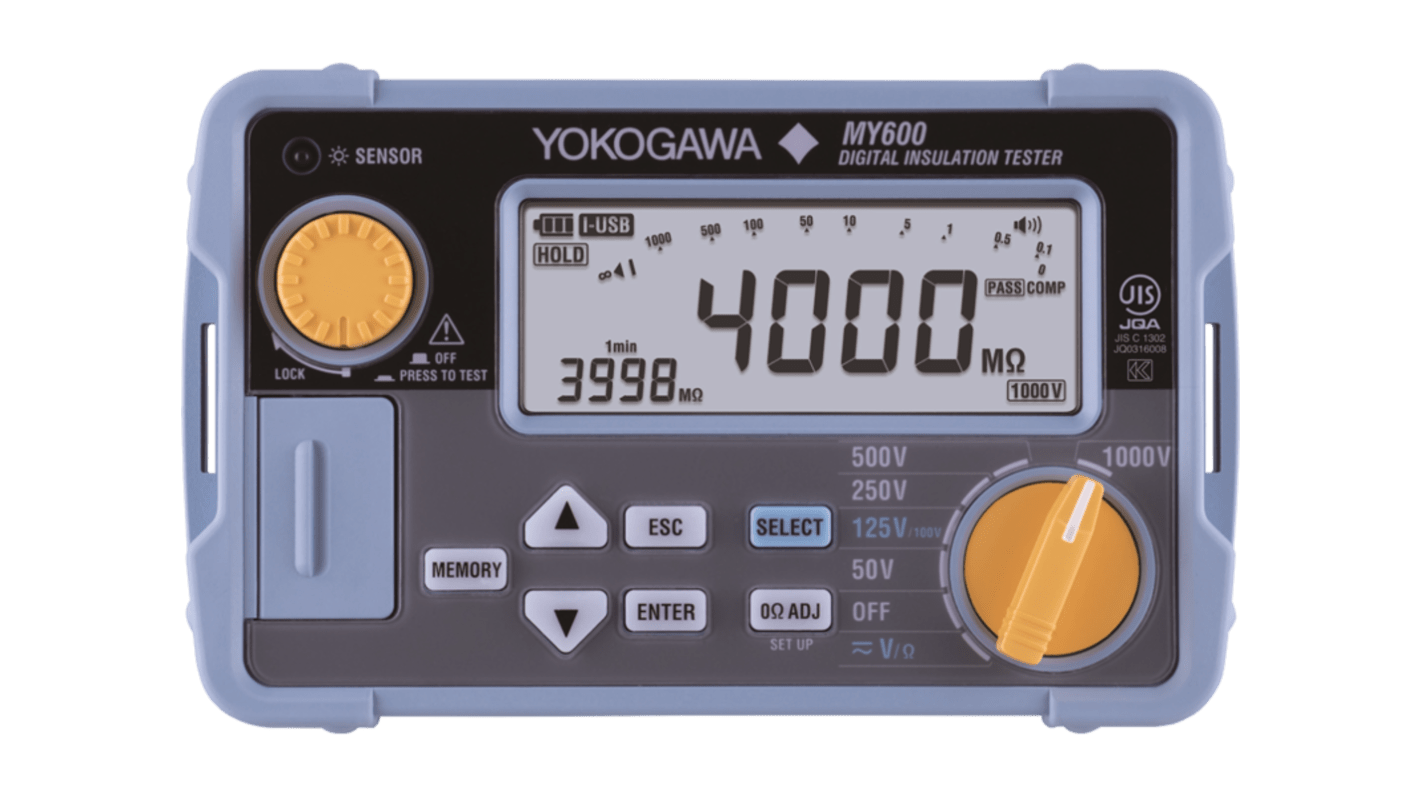

The Yokogawa Digital Insulation Tester is a handheld instrument designed for fast and reliable insulation resistance measurements in industrial and field environments. The device features a rapid response time of approximately 0.5 seconds and includes diagnostic functions like Polarization Index and Dielectric Absorption Ratio for preventive maintenance. It supports data logging of up to 1000 points and enables PC communication for report generation and analysis. The tester also includes visual PASS/FAIL indicators and automatic LED lighting for low-visibility conditions.
Measures insulation resistance up to 4000 MΩ
Offers auto-ranging for improved resolution at low resistance levels
Includes comparator function for PASS/FAIL judgment
Provides USB communication for data transfer to PC
