Gossen Metrawatt METRISO C Insulation Resistance Tester, 50V Min, 1000V Max, 100GΩ Max, CAT II 500 V
- RS Stock No.:
- 361-8581
- Mfr. Part No.:
- M541A
- Brand:
- Gossen Metrawatt
View all Insulation Testers
- RS Stock No.:
- 361-8581
- Mfr. Part No.:
- M541A
- Brand:
- Gossen Metrawatt
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

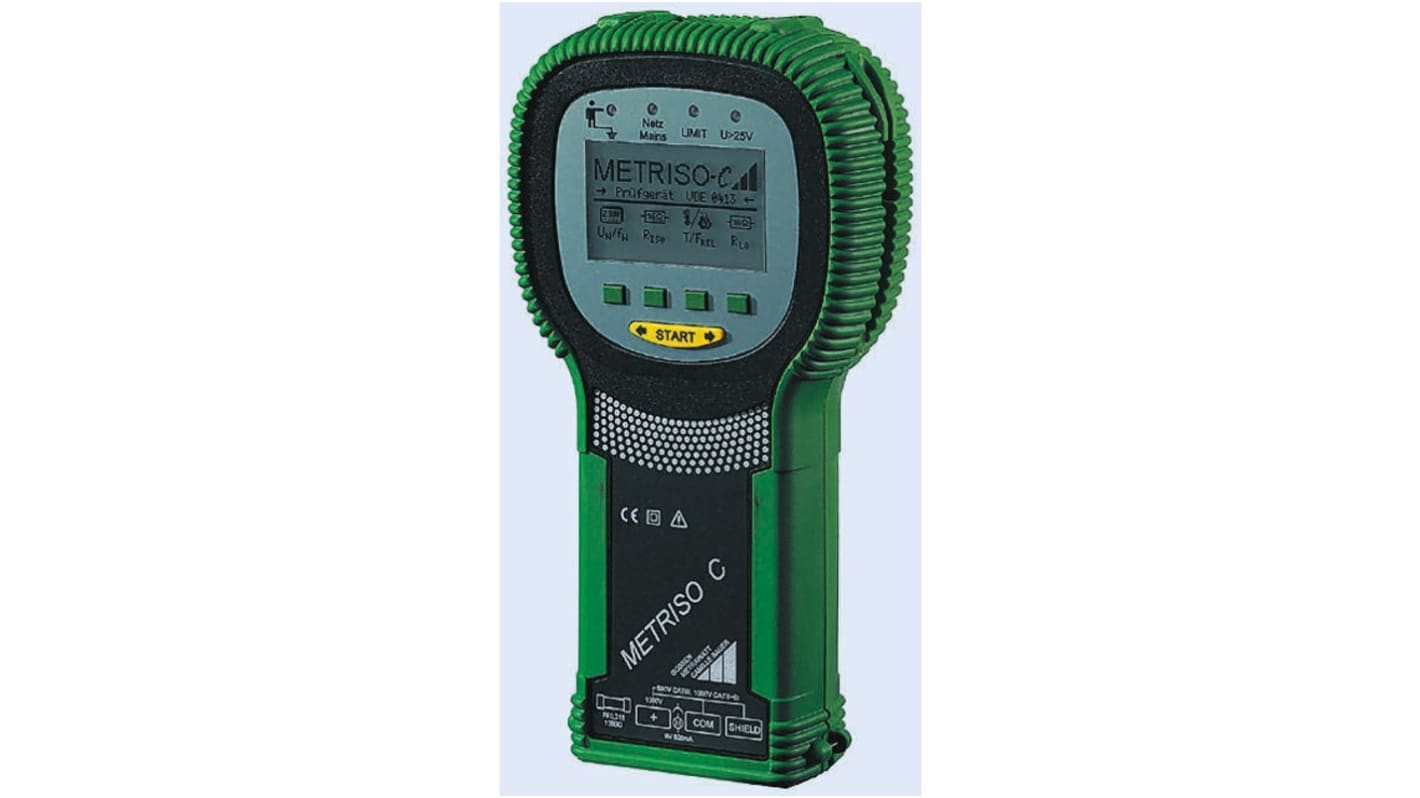

METRISO C insulation testing device
Measures insulation/low impedance resistance and discharge currentMeasures equipotential bonding conductors or earthing conductors by low impedanceVoltage and frequency measurementReading memory can be read from PC Extremely robust housingClear, intuitive menu guidance with help functionsSimple, fast operation with 5 softkeysPhase tester included
Supplied with
METRISO C, transfer belt, batteries, measuring cables, operating instruction, WinProfi PC program for communicating with the METRISO C.
Specifications
| Attribute | Value |
| Tester Type | Insulation Resistance Tester |
| Minimum Test Voltage | 50V |
| Maximum Test Voltage | 1000V |
| Maximum Insulation Resistance Measurement | 100GΩ |
| Display Type | LCD - Dot Matrix |
| Test Current | 200mA |
| Battery Life | 1000 Tests (NiCd), 1600 Tests (Alkaline) |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Power Source | Battery |
| Safety Category Level | CAT II |
| Safety Category Voltage | 500V |
| Safety Category | CAT II 500 V |
| Weight | 1.2kg |
| Height | 65mm |
| Model Number p | METRISO C |
| Dimensions | 275 x 140 x 65mm |
| Length | 275mm |
| Battery Type | C |
| Width | 140mm |
