Gossen Metrawatt METRISO PRIME Insulation Tester, 100 V Min, 5000 V Max CAT IV, CAT III, CAT II
- RS Stock No.:
- 867-5630
- Mfr. Part No.:
- M550T
- Brand:
- Gossen Metrawatt
Subtotal (1 unit)*
£1,413.94
(exc. VAT)
£1,696.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 8 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,413.94 |
*price indicative
- RS Stock No.:
- 867-5630
- Mfr. Part No.:
- M550T
- Brand:
- Gossen Metrawatt
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gossen Metrawatt | |
| Product Type | Insulation Tester | |
| Model Number | METRISO PRIME | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 5000V | |
| Minimum Test Voltage | 100V | |
| Display Type | Analogue | |
| Test Current | 1mA | |
| Battery Type | Type D | |
| Power Source | Battery | |
| Minimum Operating Temperature | 0°C | |
| Safety Category Voltage | 1000V | |
| Safety Category Level | CAT IV, CAT III, CAT II | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CE | |
| Height | 140mm | |
| Width | 290 mm | |
| Length | 250mm | |
| Weight | 3.4kg | |
| Select all | ||
|---|---|---|
Brand Gossen Metrawatt | ||
Product Type Insulation Tester | ||
Model Number METRISO PRIME | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 5000V | ||
Minimum Test Voltage 100V | ||
Display Type Analogue | ||
Test Current 1mA | ||
Battery Type Type D | ||
Power Source Battery | ||
Minimum Operating Temperature 0°C | ||
Safety Category Voltage 1000V | ||
Safety Category Level CAT IV, CAT III, CAT II | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CE | ||
Height 140mm | ||
Width 290 mm | ||
Length 250mm | ||
Weight 3.4kg | ||
- COO (Country of Origin):
- DE

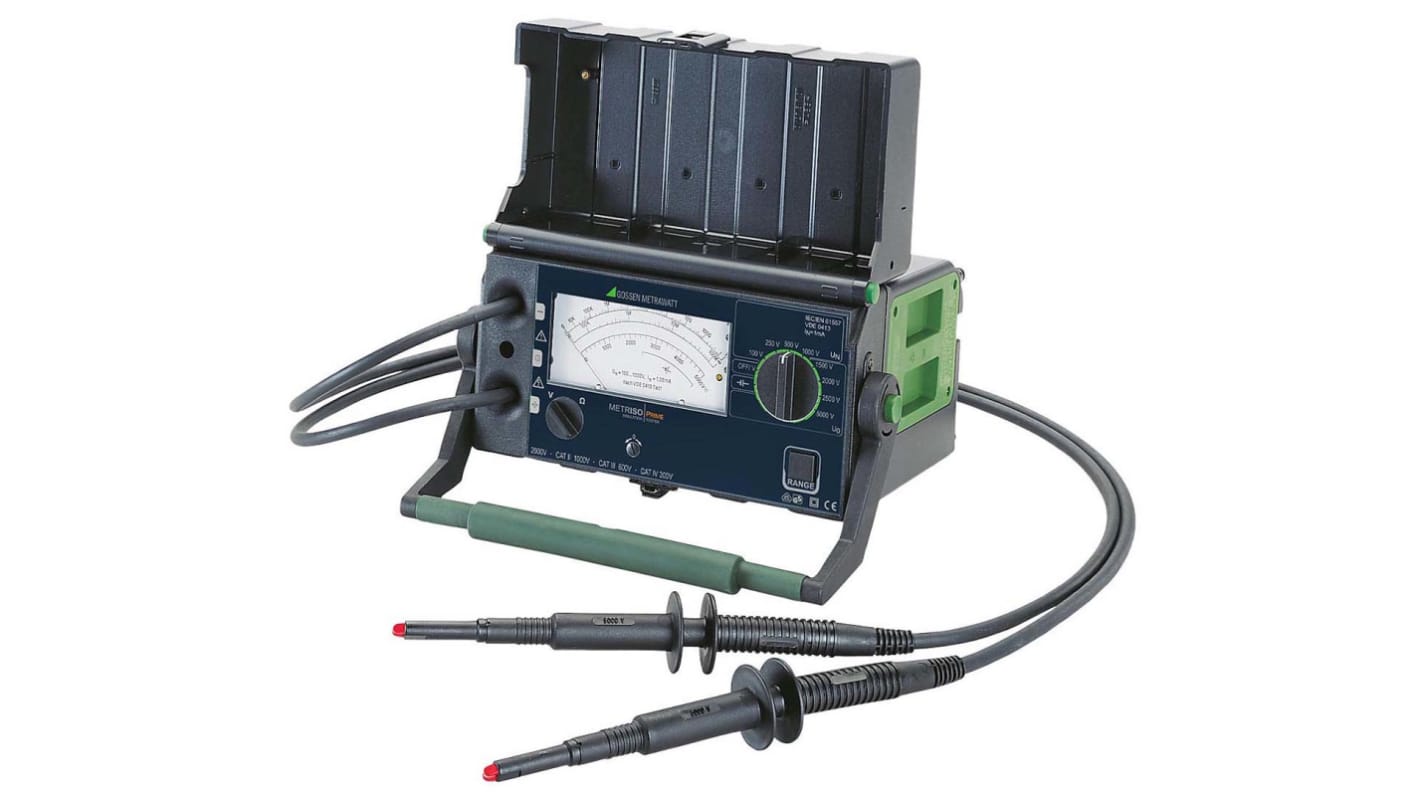

Gossen Metrawatt Insulation Tester
The Gossen Metrawatt 100Gohm high voltage insulation tester is used to measure high insulation resistance between 10kΩ and 1TΩ. The maximum testing voltage of this tester is 5000V. The result of the test is shown in analogue form. This device is battery powered and has a D battery type.
.
It s usedfor Insulation measurement for cables, motors, etc.
Supplied with METRISO PRIME tester, 2 crocodile clips (5 kV version), carrying strap, operating instructions.
Features and Benefits
Analog high-voltage insulation measuring instrument with the following voltages: 100, 250, 500 and 1000 V (per EN 61 557 part 1) and 1500, 2000, 2500 and 5000 V.
Large measuring range from 10 kΩ to 1 TΩ
Easy to read logarithmic display
Measuring voltages: 100, 250, 500, 1000, 1500, 2000, 2500 and 5000 V
Measurement to 1000 V per DIN VDE 0413
Measuring range: 100 kΩ to 100 MΩ (1000 V)
Voltage measurement up to 2000 VDC/AC
Guard terminal to eliminate the surface current
Operating temperature ranges between 0°C and 40°C
5m extension cable as accessory equipment
Certifications
CE certified
DIN EN 61010-1:2010
GS certified
IEC 61010-1:2010
VDE 0411-1:2011
CAT II 1000V
CAT III 600V
CAT IV 300V
