Megger MIT2500 Insulation Tester, 50V Min, 2500V Max, 200GΩ Max, CAT IV
- RS Stock No.:
- 122-6798
- Distrelec Article No.:
- 300-77-060
- Mfr. Part No.:
- 1004-745
- Brand:
- Megger
Subtotal (1 unit)*
£1,134.43
(exc. VAT)
£1,361.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,134.43 |
*price indicative
- RS Stock No.:
- 122-6798
- Distrelec Article No.:
- 300-77-060
- Mfr. Part No.:
- 1004-745
- Brand:
- Megger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Megger | |
| Model Number p | MIT2500 | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 2500V | |
| Minimum Test Voltage | 50V | |
| Maximum Insulation Resistance Measurement | 200GΩ | |
| Display Type | Digital | |
| Test Current | 20mA | |
| Battery Life | 3000 5-Second Tests | |
| Power Source | Battery | |
| Battery Type | AA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +55°C | |
| Safety Category Voltage | 600V | |
| Safety Category | CAT IV 600 VV | |
| Safety Category Level | CAT IV | |
| Width | 63mm | |
| Length | 108mm | |
| Height | 228mm | |
| Weight | 815kg | |
| Dimensions | 228 x 108 x 63mm | |
Select all | ||
|---|---|---|
Brand Megger | ||
Model Number p MIT2500 | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 2500V | ||
Minimum Test Voltage 50V | ||
Maximum Insulation Resistance Measurement 200GΩ | ||
Display Type Digital | ||
Test Current 20mA | ||
Battery Life 3000 5-Second Tests | ||
Power Source Battery | ||
Battery Type AA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +55°C | ||
Safety Category Voltage 600V | ||
Safety Category CAT IV 600 VV | ||
Safety Category Level CAT IV | ||
Width 63mm | ||
Length 108mm | ||
Height 228mm | ||
Weight 815kg | ||
Dimensions 228 x 108 x 63mm | ||
- COO (Country of Origin):
- GB

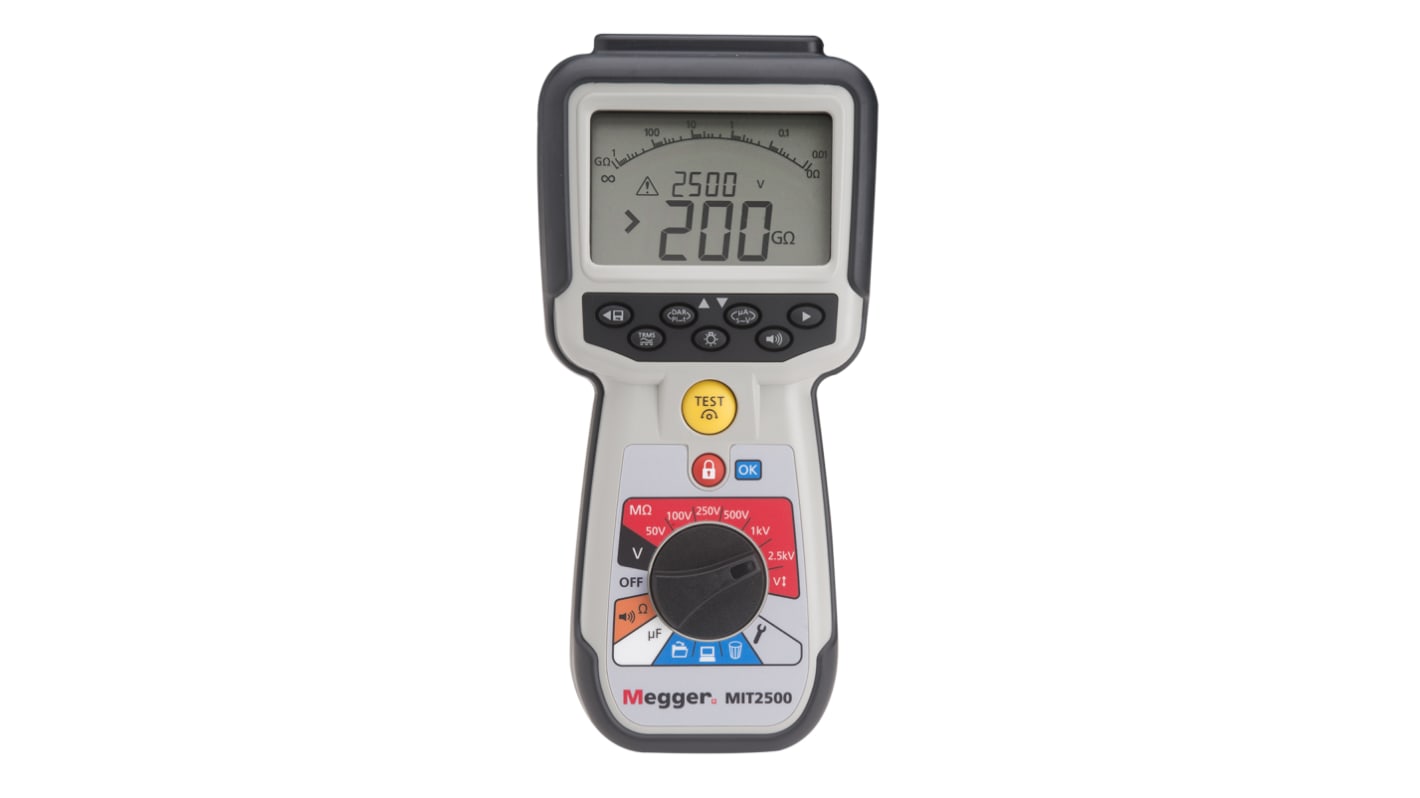

MIT2500 Insulation Tester
MIT2500 insulation & continuity tester has been designed for the Electrical and Industrial test applications. Where operation voltages exceed 1000 V and higher insulation test voltages are needed.
The tester offers both fixed range voltages of 50 V, 100 V, 250 V, 500 V, 1000 V and 2500 V. And a variable range that allows any voltage between 50 V and 2500 V to be "dialled in".
MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.
The tester offers both fixed range voltages of 50 V, 100 V, 250 V, 500 V, 1000 V and 2500 V. And a variable range that allows any voltage between 50 V and 2500 V to be "dialled in".
MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.
Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
Guard terminal for high-resistance accuracy
Adjustable insulation test voltage from 50 V to 2500 V
Stabilised insulation test voltage
Single range, faster continuity testing from 0.01 Ω to 1 MΩ
Live circuit detection and protection
CAT IV 600 V applications
New case design with optional magnetic hanging strap
IP54 Rated
ABS housing
Guard terminal for high-resistance accuracy
Adjustable insulation test voltage from 50 V to 2500 V
Stabilised insulation test voltage
Single range, faster continuity testing from 0.01 Ω to 1 MΩ
Live circuit detection and protection
CAT IV 600 V applications
New case design with optional magnetic hanging strap
IP54 Rated
ABS housing
Standards
IEC 61010 & EN61557
Supplied with
2.5 kV rated test leads fitted with medium size crocodile clips and 1 kV rated test leads with probes and clips
Megger Insulation Tester, Bluetooth Connectivity, 250kΩ Input Impedance - MIT2500 Series - 1004-745
The MIT2500 high voltage handheld insulation & continuity tester has been designed for electrical and industrial test applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.
This all-in-one device makes equipment testing a breeze. It keeps track of resistance levels so you can detect current leakage before it wreaks havoc on your system. This versatile device also allows you to measure high voltages, making it ideal for checking motors and cables in heavy-duty industrial settings. You can select a fixed voltage or the variable range option to test voltages between 50 and 2500V to suit your set up. Thanks to the device's Bluetooth connection, you can send your results to a computer or tablet up to 10m away to boost productivity.
MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.
This all-in-one device makes equipment testing a breeze. It keeps track of resistance levels so you can detect current leakage before it wreaks havoc on your system. This versatile device also allows you to measure high voltages, making it ideal for checking motors and cables in heavy-duty industrial settings. You can select a fixed voltage or the variable range option to test voltages between 50 and 2500V to suit your set up. Thanks to the device's Bluetooth connection, you can send your results to a computer or tablet up to 10m away to boost productivity.
MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.
Features & Benefits
• Safe for use in demanding environments, thanks to its broad operating temperature range between -10°C and +55°C
• Insulation testing up to 2.5 kV and 200 GΩ range in a handheld instrument
• Guard terminal for high-resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V for more flexibility in testing
• Stabilised insulation test voltage
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
L• ive circuit detection and protection
• CAT IV 600 V applications
• New case design with optional magnetic hanging strap
• IP54 rating means it's resistant to limited amounts of dust and water sprays
• ABS housing
• Continuity testing - can also test the continuity of circuits.
• Compact and portable - designed for easy use in various field conditions.
• Rugged construction - built to withstand tough environments.
• Insulation testing up to 2.5 kV and 200 GΩ range in a handheld instrument
• Guard terminal for high-resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V for more flexibility in testing
• Stabilised insulation test voltage
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
L• ive circuit detection and protection
• CAT IV 600 V applications
• New case design with optional magnetic hanging strap
• IP54 rating means it's resistant to limited amounts of dust and water sprays
• ABS housing
• Continuity testing - can also test the continuity of circuits.
• Compact and portable - designed for easy use in various field conditions.
• Rugged construction - built to withstand tough environments.
Applications
The MIT2500 is a versatile tool for testing the electrical integrity of cables, motors, generators, and other electrical equipment. It's commonly used in industries such as:
• Electrical maintenance
• Power generation
• Manufacturing
• Telecommunications industry
• Transportation networks
• IT facilities
• Construction projects
• Electrical maintenance
• Power generation
• Manufacturing
• Telecommunications industry
• Transportation networks
• IT facilities
• Construction projects
Does this insulation tester store data?
Yes, this insulation tester stores up to 1000 test results, making data recording and retrieval a walk in the park.
