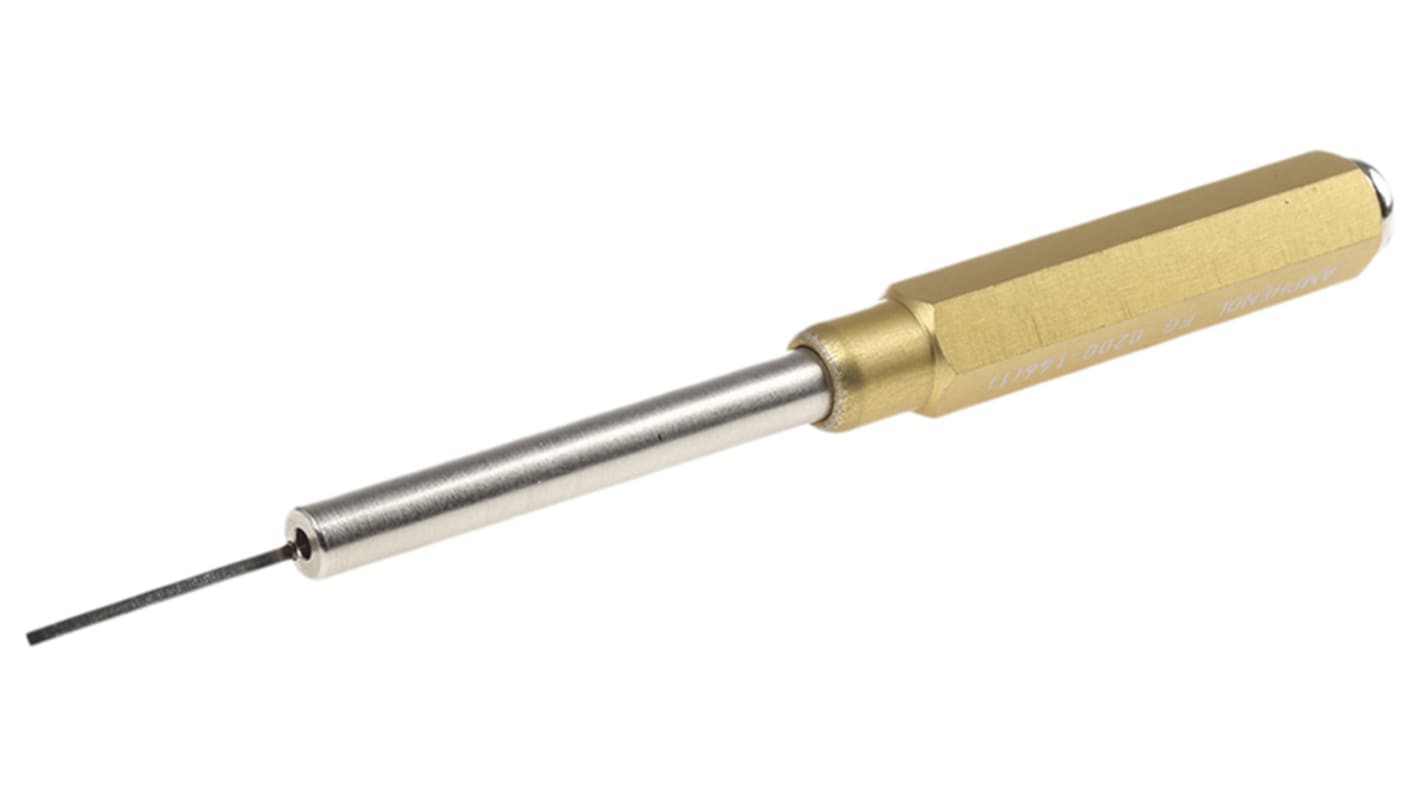

Amphenol Industrial Insertion & Extraction Tool, C16-3 Series, Open Crimp Barrels Contact, Crimping Tool with Fixed

View this category
Bulk discount available

Subtotal (1 unit)*

£161.87

(exc. VAT)

£194.24

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£161.87
5 - 9£157.01
10 - 24£152.32
25 +£147.95

*price indicative

RS Stock No.:
240-8658
Distrelec Article No.:
110-74-182
Mfr. Part No.:
FG-0200-146(1)
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Contact Type

Open Crimp Barrels

Sub Type

Crimping Tool with Fixed Crimping Die

Product Type

Insertion & Extraction Tool

Series

C16-3

Overall Length

195mm

For Use With

VN01 025 0001(.), VN01 016 0004(.), VN01 010 0025(.), VN02 016 0002(.), VN02 010 0038(.), VN02 006 0012(.), VN02 010 0025(.), VN01 015 0005(.), VN02 010 0037(.), VN01 016 0011(.), VN01 025 0007(.), VN01 016 0002(.), VN01 010 0015(.), VN02 015 0005(.), VN02 010 0015(.), VN02 016 0003(.), VN02 006 0011(.), VN01 016 0003(.), VN01 010 0024(.), VN02 010 0024(.), VN02 025 0001(.)

Standards/Approvals

No

COO (Country of Origin):
CZ

Crimp Tool and Insertion/Extraction Tools


Tool 1 - 0.14 -0.5mm² & 0.5 - 1.5mm² contacts C16-3 12-way

Tool 2 - 0.14 -0.5mm² contacts for C16-3 14-way and NL series

Tool 3 - 0.5 -1.5mm² contacts for 14-way

Amphenol C 16-3 Circular Connectors


All planforms require crimp contacts with the exception of the 5 +PE configuration which is supplied complete with screw termination contacts.

Bayonet locking, robust, lightweight plastic connectors suited for machinery, light and sound applications and where power and control are required through one connection. Plug shells accept pin contacts, socket shells accept socket contacts.

Cable and chassis mount inserts may be keyed to prevent incorrect connection between types

Can facilitate cable to cable and cable to chassis connection

All have a pre-mating earth design

Supplied with strain relief and PG cable gland for conduit fixing

IP65 to IEC529

Note

Ratchet Crimp Tool see 241-2786, Insert/Extraction Tool 1 see 240-8642 , Insert/Extraction Tool 2 see 240-8658 and Insert/Extraction Tool 3 see 240-8642.

Approvals

VDE (3964); UL (E63093); CSA (49932-9)
